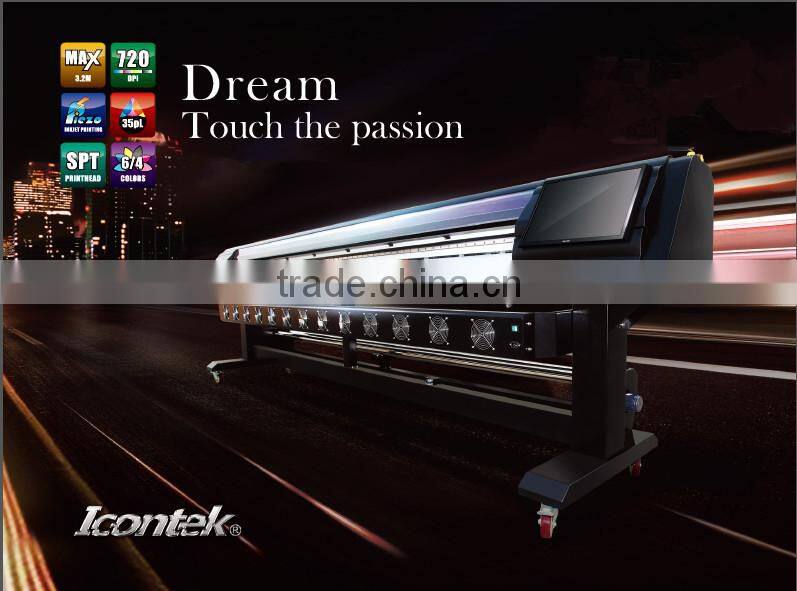

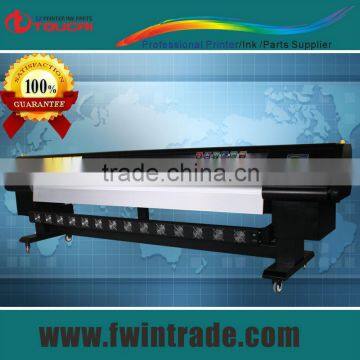

Competitive price 3.2m Icontek outdoor large printer
Features of solvent printing machine :
1.Powerful LCD control Panel brings a user friendly interface.
2.Double raster controlling system. Use DC servo motor drive, operation more reliability and more accurately running on media.
3.Infra-red sensor, automatic tension sensitive feeding system,Take-up system optional.
4.Alignment of bi-direction, feeding and moving speed of carriage can be adjusted while printing.
5.Extra 50% media pressing system gives a precise feeding and flatmedia moving, increases printing resolution and decrease bandings.
6.Strengthenes steel girder, high precision linear guide makesevery ink dots drop onto the right position and brings high resolution.
7.The machine plate inserted suction, through the plate, then the media can not be easily wrinkle and also the carriage can't easily be scratched.
8.Tri Heater system warms up media before and after printing, which improve absorbability of media and drying printing job, can enhance outdoor durability.
Electronic Control Section
1.Simple and rational main control box layout provides more stable environment for 24 hours running .
2.dopt USB2.0 output system,faster and flexible.
3.Black text job can be printed by 100% black ink and no need mix with other colors.
4.Printing can be continued after unpurposive power cut.
5.Powerful and user friendly RIP and excellent ICC profile system assures vivid and accurate color reproduction.
6.Printhead voltage can change by temperature accordingly, with professional ink, fluent and stable printing is guaranteed.
SPECIFICATIONS of solvent printing machine
Product Model |
3308HA |
3308FA |
|
Printhead |
S eiko SPT Printhead From Japan |
||
Number of Printhead |
8 Heads |
8 heads |
|
Printhead Model |
SPT-510/35pL |
SPT-1020 35pl |
|
Printhead Sequency |
2×4 |
2×4 |
|
Print Speed |
High-speed mode |
104sqm/hr |
214sqm/hr |
Standard mode |
78sqm/hr |
158sqm/hr |
|
High quality mode |
54sqm/hr |
108sqm/hr |
|
Ink |
Type |
Solvent Ink, Eco-solvent Ink |
|
Color |
4Color(C,M,Y,K) |
||
Supply System |
Low Ink Detector, Auto or Manual Ink Supply System |
||
Maximum Media Width |
3300mm |
||
Maximum Print Width |
3200mm |
||
Media Type |
Variety of Flexible Materials. |
||
Auto Media Feeding & Take-up System |
Equipped( Max.Media Weight 120kg) |
||
Auto Cleaning System |
Positive Cleaning Anti-clogged Flash Function |
||
Pre-heating & Drying System |
Equipped(Drying System Optional) Infra-red Heating System Optional |
||
Clamp |
Equipped |
||
Print Interface |
USB2.0 |
||
Printhead Height |
2 to 4mm Above Media Adjustable |
||
RIP Software |
Maintop, PhotoPrint, UltraPrint |
||
Input Power |
AC220V 50HZ |
||
Operation Environment |
Temperature: 20°C--28°C, Humidity: 40%--60% |
||
Machine Dimension |
L4,360 *W790*H1,170mm 205kg |
||
Package Dimension |
L4,450 *W870*H1,390mm 455kg |
||
Usage for solvent printing machine

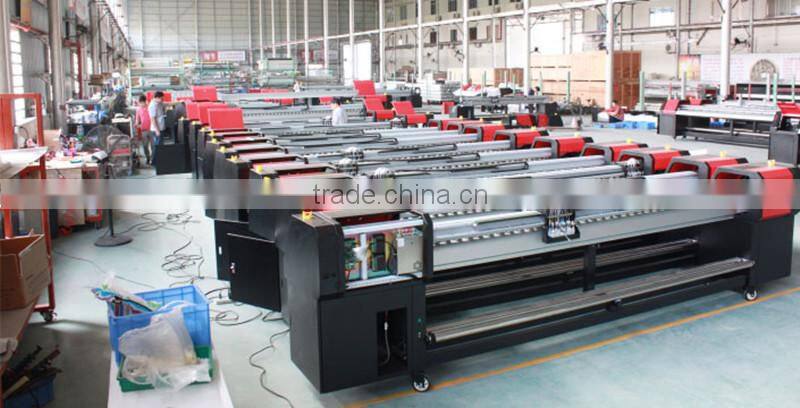

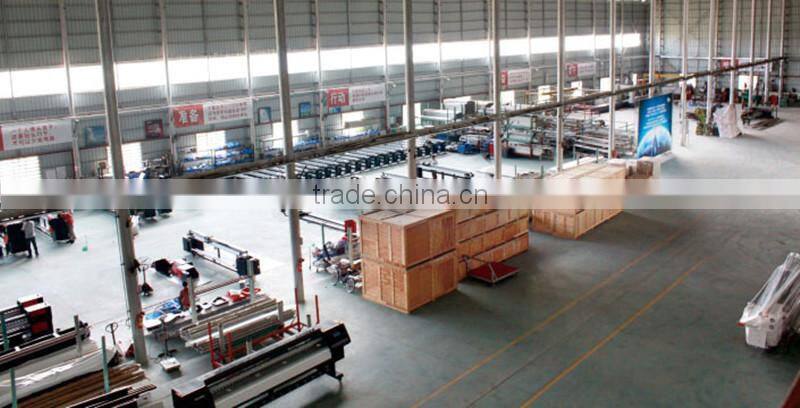

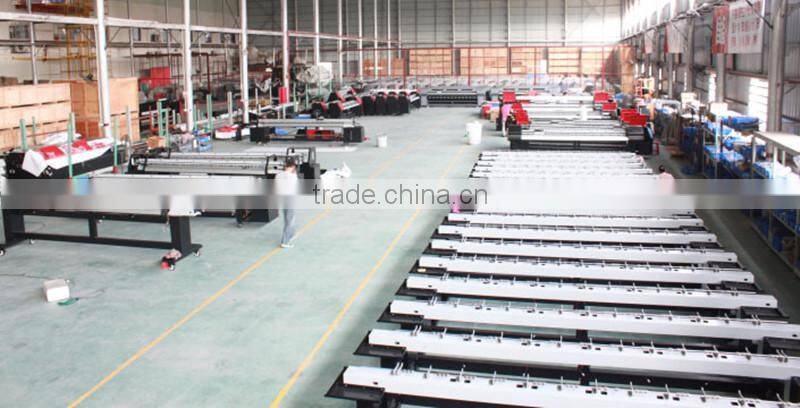

Our Factory in Guangzhou city
Related Product
Package: Hard export wood to package the machine
shipment:please tell me your sea port name to confirm you the accurate shipping cost and delivery time.
Payment
We accept western Union and TT bank transfer
Please complete the full payment including Final price with bank service fee and postage.Transaction with insufficient payment will not be handled.
Our Factory in Guangzhou city,China,I would like to invite you to come to my factory to have a visit for long term business.
1.Our printers have 1year warranty for mainboard and head board
2.We have professional Installation video and Operation manual,teach you install the printer and operate it well;
3.We have professional teamers to training you operate the machine well;
4.We have original printers in stocks in my warehouse now
1. About printer warranty & service?
The printer will send to you for full set printhead, spare parts, after install can use directly
All the printer we offer 1years warranty for the mainboard, carriage board, printhead board etc.
2. About shipping time?
The printer will ship in 3-5days after confirm payment, delivery time on the sea depend on each shipping line.
3. About ink?
We supply original sk4 ink for this printer, order ink and printer together can get more discount
24 hours direct service for you-----skype(inmandeng) /whatsapp(008615920118113)
Tuocai is committed to offering the best service and win-win business!!!
