Stainless Steel Sus 304 DIN1480 Construction Straining Screw

Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-1
Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-2
Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-3
Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-4
Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-5
Stainless Steel Sus 304 DIN1480 Construction Straining Screw thumbnail-6
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-1
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-2
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-3
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-4
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-5
Stainless Steel Sus 304 DIN1480 Construction Straining Screw photo-6
US$ 0.48 - 9.86 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Stainless Steel
Type:
European Type
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Powerful Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdaop Port Shanghai Port etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Stainless Steel
Type European Type
Place of Origin Shandong, China
Brand Name Powerful Machinery
Surface Treatment Polished



Product Description

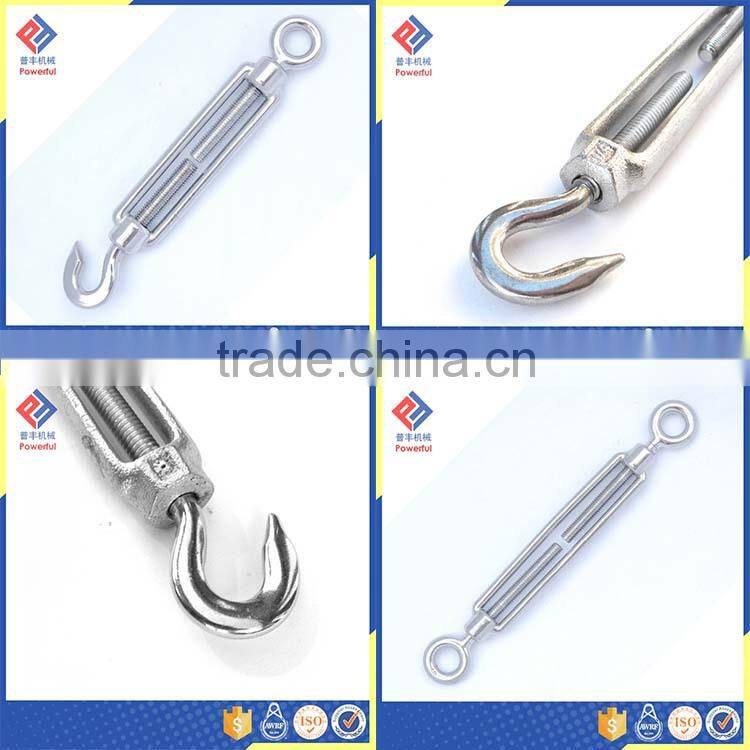

DIN1480 Stainless Steel Turnbuckles

Honest, Innovative and Professional







Key Features

• Size - M5 to M48

• Material - Premium Stainless Steel

• Type - Hook&Hook, Eye&Eye, Hook&Eye

• Standard - Euro Type DIN 1480

• Surface - Highly Polished or Mirror-like Polished

  Stainless Steel Sus 304 DIN1480 Construction Straining Screw





Data Sheet



Stainless Steel Sus 304 DIN1480 Construction Straining ScrewStainless Steel Sus 304 DIN1480 Construction Straining Screw

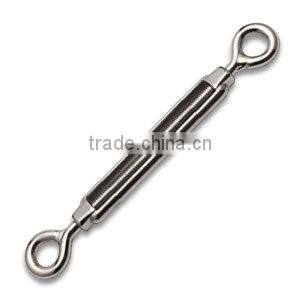

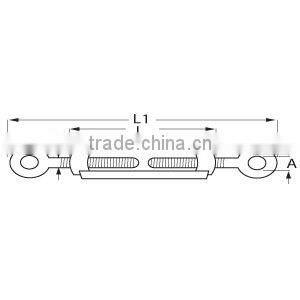

Stainless Steel DIN1480 Turnbuckle with Eye and Eye

D1 L mm L1 mm A mm S mm WT kgs
M5 70 120 8 8 0.05
M6 90 150 10 9 0.08
M8 120 200 14 11 0.17
M10 150 240 16 12 0.28
M12 200 310 18 14 0.52
M16 250 390 26 16 1.2
M20 300 440 30 18 2.15









Stainless Steel Sus 304 DIN1480 Construction Straining ScrewStainless Steel Sus 304 DIN1480 Construction Straining Screw

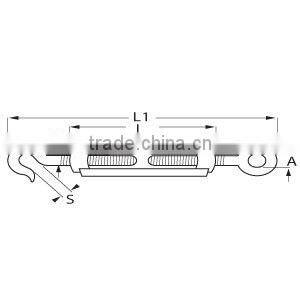

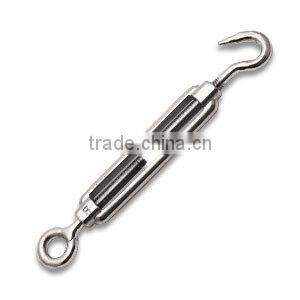

Stainless Steel DIN1480 Turnbuckle with Hook and Eye

D1

L

mm

L1

mm

A

mm

S

mm

WT

kgs
M4 58 90 6 6
M5 70 120 8 8 0.05
M6 90 150 10 9 0.08
M8 120 200 14 11 0.17
M10 150 240 16 12 0.28
M12 200 310 18 14 0.52
M16 250 390 26 16 1.2
M20 300 440 30 18 2.15









Stainless Steel Sus 304 DIN1480 Construction Straining ScrewStainless Steel Sus 304 DIN1480 Construction Straining Screw

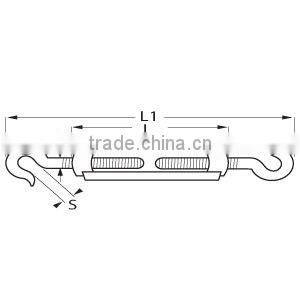

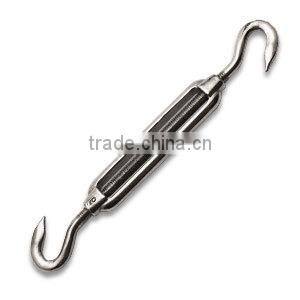

Stainless Steel DIN1480 Turnbuckle with Hook and Hook

D1

L

mm

L1

mm

S

mm

WT

kgs
M5 70 120 8 0.05
M6 90 150 9 0.08
M8 120 200 11 0.17
M10 150 240 12 0.28
M12 200 310 14 0.52
M16 250 390 16 1.2
M20 300 440 18 2.15





Product Illustration



Powerful Machinery

Product Illustration



Stainless Steel Sus 304 DIN1480 Construction Straining Screw

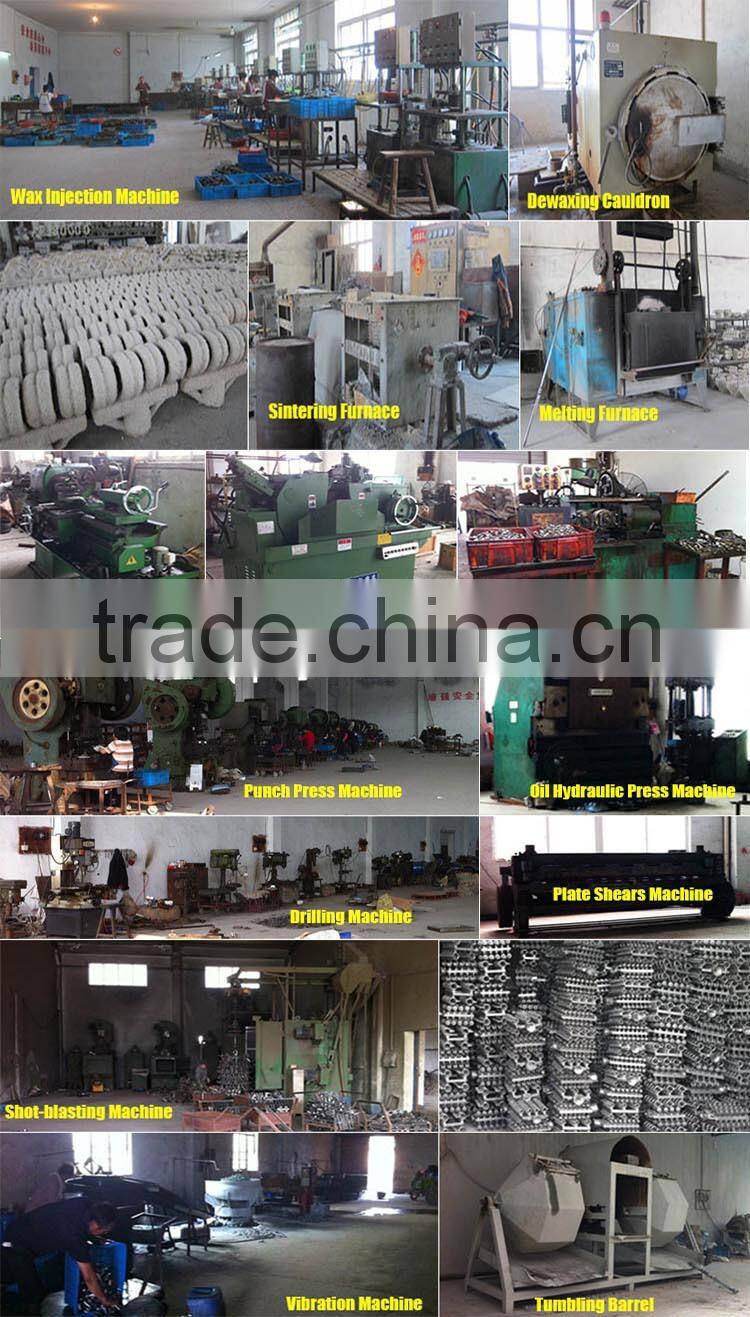

Factory & Equipment

Stainless Steel Sus 304 DIN1480 Construction Straining Screw

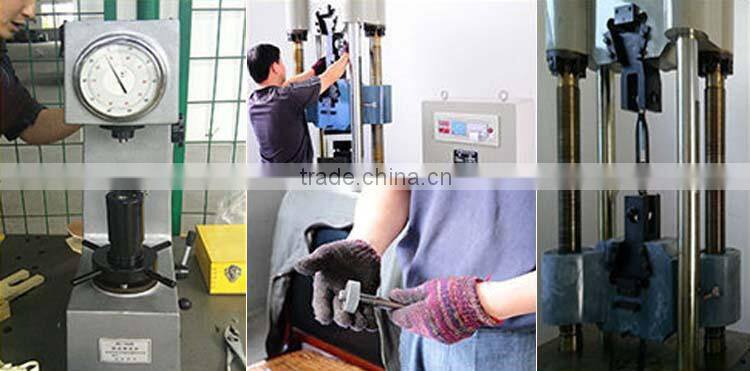

Quality Testing

Stainless Steel Sus 304 DIN1480 Construction Straining Screw



Powerful Machinery

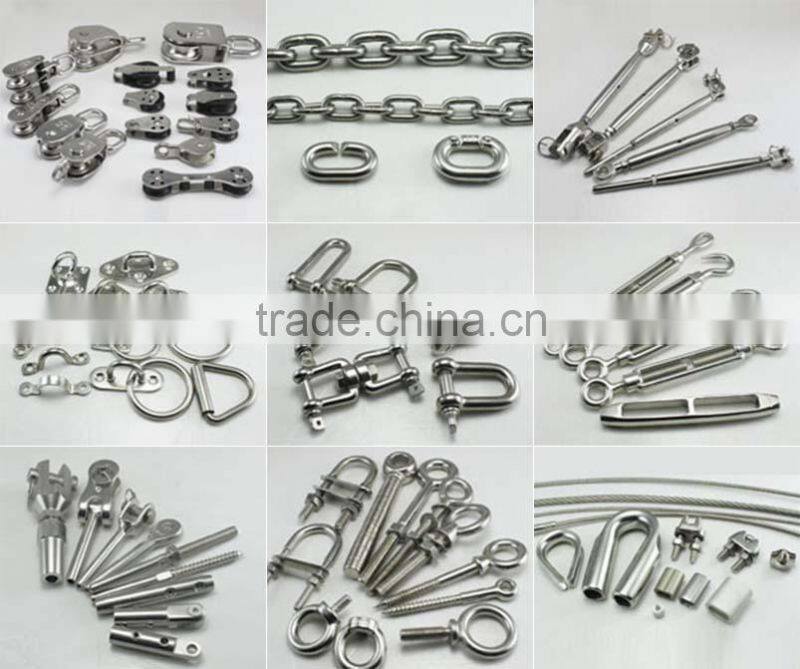

Related Products



Click to know more...

Stainless Steel Sus 304 DIN1480 Construction Straining Screw

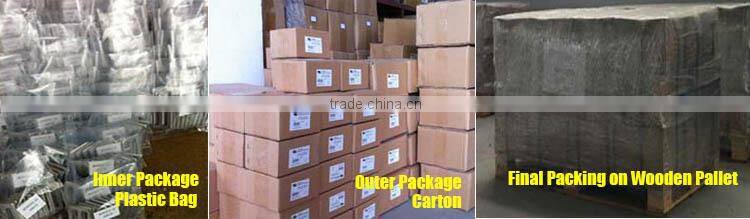

Packaging & Shipping



Powerful Machinery

Packaging & Shipping

 Stainless Steel Sus 304 DIN1480 Construction Straining Screw







Our Services



Powerful Machinery

Our Services
We Supply We Provide
                 •  Fasteners               •   OEM Services
                 •  Marine Hardwares               •   ODM Services
                 •  Chains & Chain Fittings               •   Sourcing Services
                 •  Wire Rope  & its Fittings               •   On-Site QC Services
                 •  Other Rigging Hardwares               •   Procurement Services









Company Information



Powerful Machinery

Company Info



Stainless Steel Sus 304 DIN1480 Construction Straining Screw





     •   We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually

         developed into a big manufacturer of marine hardware supplies.

     •   At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful

         Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership

         with other factories.

     •   Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in northern China.









Powerful Machinery

Marketing



Stainless Steel Sus 304 DIN1480 Construction Straining Screw





     •   Our products, such as high grade chains, blocks & pulleys, steel  wire rope, stainless steel products, are popular in Europe, U.S,

          most Asia areas for its first class quality and competitive price.

     •   By offering one-stop solution service, our experienced customer service team can assist you from inquriy to  delivery.







FAQ


Powerful Machinery

FAQ



1. Are you a factory or trading company? We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.
2. Where is your factory located?

Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.

3. What products do you supply?  As mentioned above, Qingdao Powerful Machinery is capable of supplying:
♦ all kinds of marine supplies
♦ chains
♦ rigging hardwares
♦ fasteners
♦ and related hardwares
4. Do you produce them all?

We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.

5. How do you control quality? By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.
6. Why are you more trustworthy than the other factories? Quick Response:

We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
 We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
 Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.

7.  How do I pay? We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
8. How do I receive the goods? With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported.

FOB, C&F, CIF are most commonly used trade terms.
