Home > Products > Indoor LED full color Display > HOOZOE P6 SMD RGB LED Display for Indoor
HOOZOE P6 SMD RGB LED Display for Indoor
- 100000 Square Meter / Square Meters per Month
- XIAMEN
- Credit Card
You May Like
-
HOOZOE P6 SMD Full Color LED Monitor for Indoor
-
HOOZOE P6 SMD RGB LED Monitor for Indoor
-
Hoozoe SImple Series- P6 Full Color LED Display for Outdoor
-
Hoozoe SImple Series- P6 Full Color LED Display Screen for Outdoor
-
Hoozoe SImple Series- P6 Full Color LED Screen for Indoor
-
Hoozoe SImple Series- P6 SMD RGB LED Display Screen
Product Details
| Place of Origin | Fujian, China | Brand Name | HOOZOE | |
| Model Number | HOOZOE-Indoor--SMD-P6-RGB |
Product Description
Specifications
1.High Stability, Power Saving2.CE,ROHS, ETL,CE,RoHS,TUV,FCC-A,CCC Certified
3. High Cost Performance
Technical Parameters
| P6 Full Color SMD3528 Indoor Module | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 6 |
| Resolution of Module | dots | 64×32 |
| Module Size | mm | 384x192 |
| Module Weight | kg | 0.55 |
| Pixel Configuration | SMD3528 1R1G1B | |
| Chip Brand of LEDs | Epistar | |
| Pixel Density | dots/sqm | 62500 |
| Brightness (White Balance) | nits(cd/sq.m) | ≥1700 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan | |
| Viewing Distance | M | 3--35 |
| Best View Distance | M | 5--15 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 120 |
| Module Maximum Power | W | 25 |
| Max. Power Consumption | W/sq.m | 1,000 |
| Avg. Power Consumption | W/sq.m | 300 |
| Working Voltage | 5V 40A | |
| Power Supply | AC 110/220V | |
| Refresh Rate | Hz/S | 3,000 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray | |
| Display Color | 256*256*256 | |
| Display Function | Text,news,advertising,flash,animation | |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. | |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C. | |
| Defective Dot Rate | <0.0001 | |
| Life Span | hours | 100,000 |
| MTBF | hours | >5,000 |
| Storage Temperature | °C | 45 |
| Working Temperature | °C | -20 -- +60 |
| Working Humidity | 10-90%RH | |
| Control System | Synchronization or Asynchronization | |
| Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 | |
| Warrenty | 2 Years | |
| Working Environment | Indoor | |

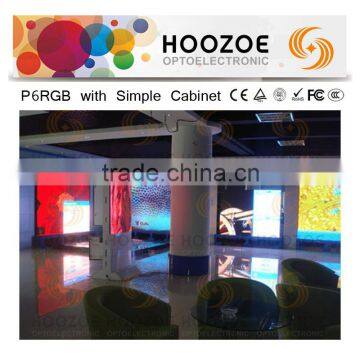

Product Picture
Advantage of Factory
1. 53000 square meters manufacturing base , More than 1200 employees ;
2. Standardized management and production :
3. 20000pcs modules per day and 65000 square meters display screen per month
4. With integrated R&D, manufacturing and service system , from LED application solutions to after-sale service
5. Certificates : ISO9001-2008,3C, CE, UL etc.
Advantage of Products
1.Steady performance and low death rate of light
2. Own designing team for new products development
3. Independent design of PCB board circuit : tidy electronic line and Uniform color
4. New pattern vacuum package
Remarks:
1. Quotation valid time: 20 days after receive 50% deposit;
2. Payment method: T/T 50% down payment before production, T/T 50% balance before delivery;
3. Production lead time: 15 days calculated from the date we received T/T 50% down payment;
4. Quality Warranty Period: two years from delivery date;
