electric bike battery 36v 10ah lifepo4 batteries
Main parameters:
NO. |
Item |
General Parameter |
||
1 |
Casing material for single cell |
steel case for single cells |
||
2 |
Standard capacity |
10AH |
||
3 |
Rated voltage |
36V |
||
4 |
Standard charge/ discharge current |
0.2C/1C |
||
5 |
Max continuous discharge current |
2.5C |
||
6 |
Peak discharge current |
5C |
||
7 |
Cyclelife(1C/1C , 100% DOD) |
2000 times(8--9 years) |
||
8 |
max charge voltage | 43.8v |
||
9 |
cut off voltage |
30v |
||
10 |
Operate temperature |
Charge |
0°C~45°C |
|
Discharge |
-20°C~60°C |
|||
Storage |
-20°C~45°C |
|||
Optimum LiFePO4 battery Features:
Feature of LiFePO4 -- Safe
- The chemical structure of LiFePO4 is the most stable
Feature of LiFePO4 -- Long lifespan
- >2000 times cycle life at 0.1C-1C discharge/charge rate
Feature of LiFePO4 -- High energy density
- Energy density: 135 Wh/kg
- Weight: 1/3 of lead acid, 2/3 of Ni-MH
- Volume: 2/3 of lead acid
Feature of LiFePO4 -- Wide Temperature range
- Working temperature range: -20°C--60°C
-
Perform good in high temperature: reach 350°C-500°C in peak, about
200°C for LicoO2 and LiMn2O4
Feature of LiFePO4 -- Fast charge
- 1C standard charge and discharge, above 93% of the capacity during 3.3~3.2V platform
- Steady charge and discharge platform,can reach high current power charge and discharge
Good at high discharge rate, above 96% charge and discharge efficiency by 10C
Feature of LiFePO4 -- Less self-discharge
Self-discharge<3%(month), while the monthly self discharge of sealed lead acid battery is 10%.
Feature of LiFePO4 -- Enviroment friendly
Optimum LiFePO4 battery has great efficiency for energy conservation and emission reduction ,
Without any hazardous and noxious substances
About Optimum:
Competitive Advantages
- Electronic Link
10 years professional BMS solution
Green Product Long life span International Approvals
Reasonable Price
- Prompt Delivery
- Quality Approvals
- Reputation
- Service
- Small Orders Accepted
Service by Optimum
- Give you the specific battery pack within 24hours according to your requirements
- One-stop battery solution with battery cells,BMS,case and matching charger
Built in with BMS
- Programble thresholds and monitor each cell's voltage, cell's group temperature,and current.
- Progarmable cell balance during charging and or after charging.
- Normal"open" relay switch out put for charge and discharge protection.
- Charging protection:switch turn to "close" when cells' over voltage, over temperature, over current,not within preset thresholds.

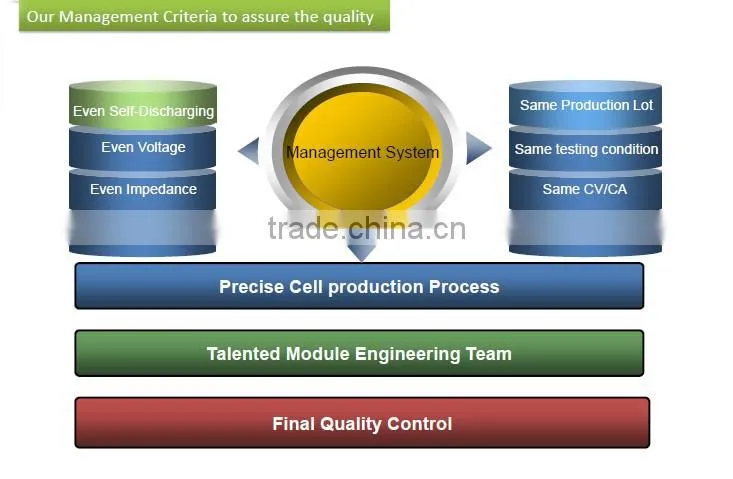

Optimum battery by QC :

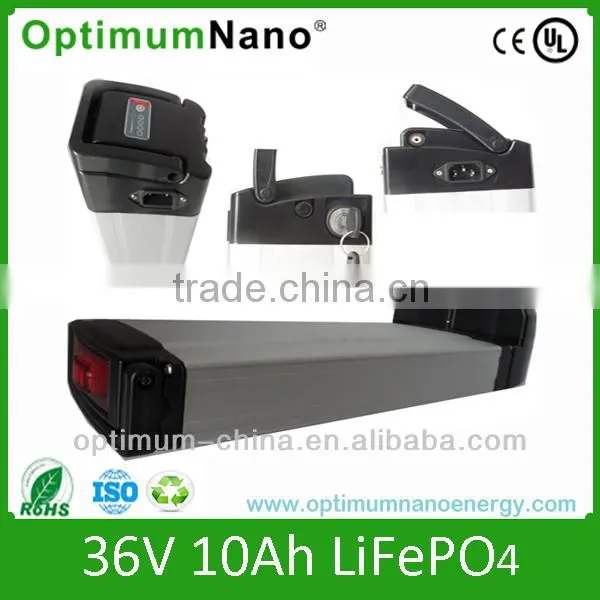

Optimum battery Picture:

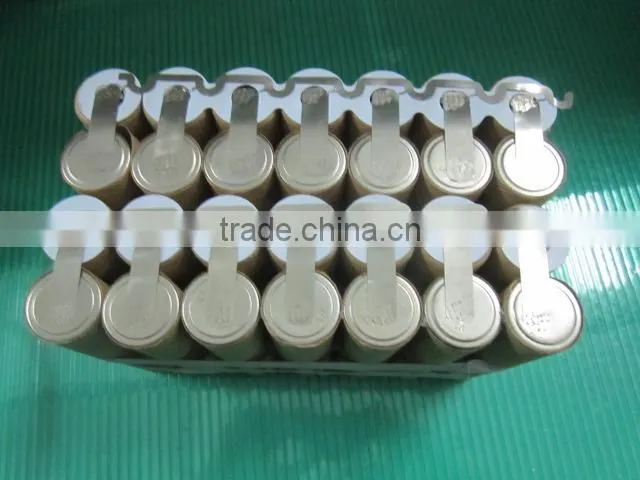

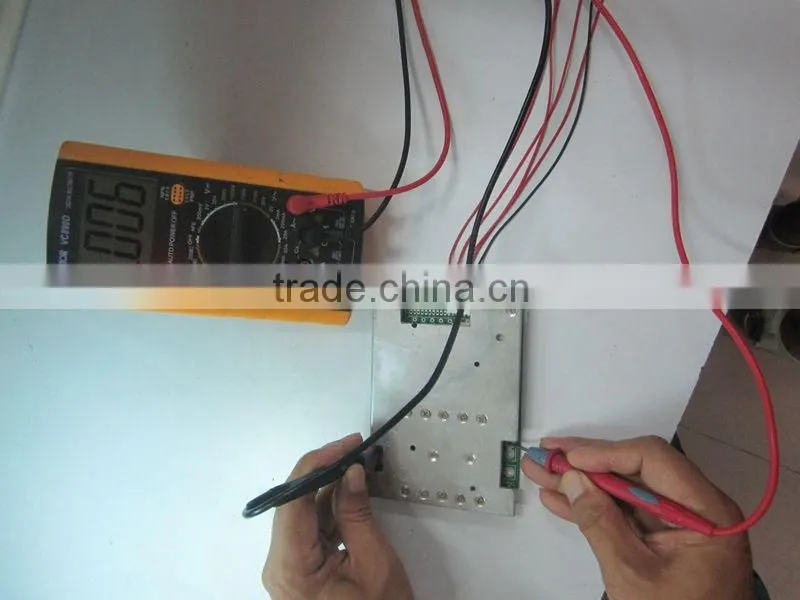

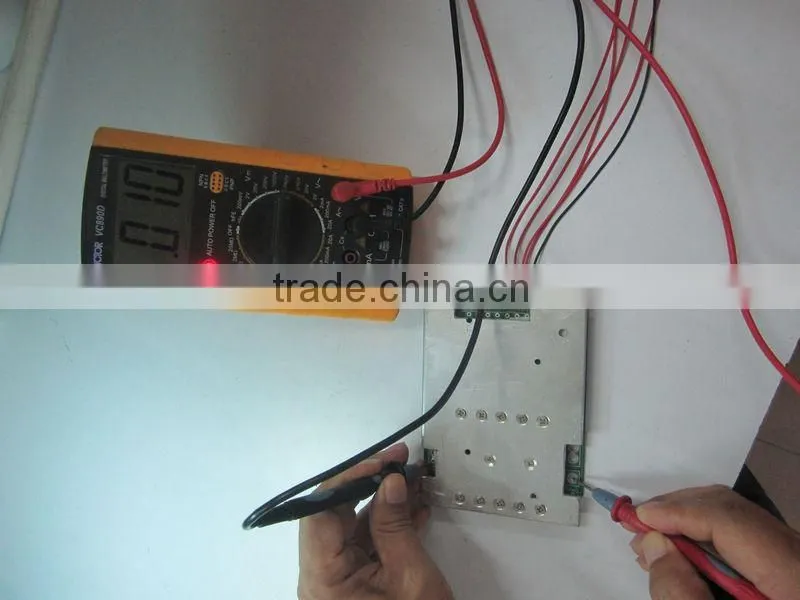

Optimum battery Pack and test BMS :

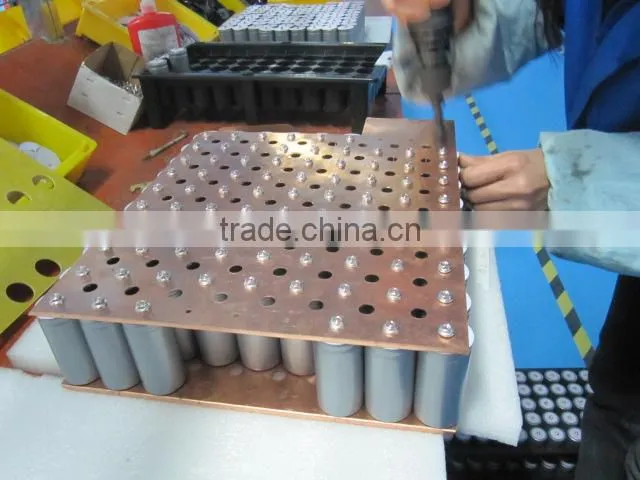

Optimum battery pack design:
Optimum battery certificates :
(CE,UL,ROHS,TS16949,MSDS,UN38.3 ect)
welcome to contact optimum and visit optimum factory:
