Stop Botton Ferrule

Product Description



Powerful Machinery

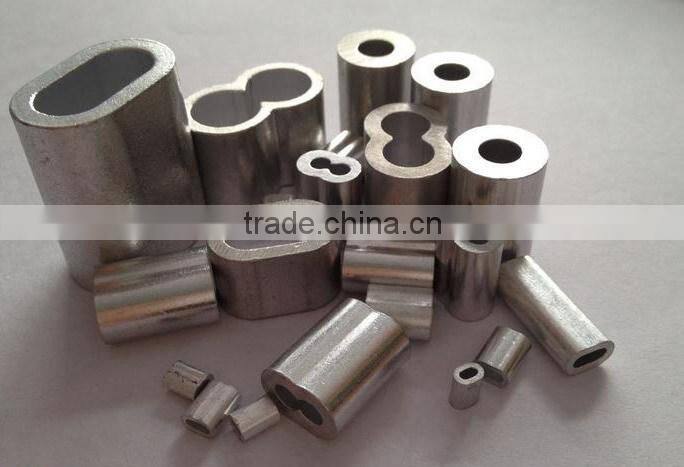

Aluminium Ferrule for Wire Rope





 Aluminium Ferrule Stop Botton Ferrule



We're able to offer an extensive range of ferrules for rope terminations. Safety is a major focus, with this in mind our ferrules are strictly produced from seamless materials.



Aluminium ferrules are used in combination with galvanized wire ropes. They are available in the flat oval shape for wire ropes with a diamter up to 102mm.





MATERIAL

ALUMINIUM / NICKEL PLATED BRASS / STAINLESS STEEL
WIRE DIAMETER 1 MM ~ 60 MM
SPECIFICATION EN 13411-3 / DIN 3093
SHAPE HOURGLASS / ROUND / OVAL / DUPLEX OVAL / STOP BOTTON





Specifications



Powerful Machinery

Specifications





                  Stop Botton Ferrule







Size

Dimensions (mm)

MM

A

B

S

L

1

1.2

2.4

0.65

5

1.5

1.7

3.4

0.75

6

2

2.2

4.4

0.85

7

2.5

2.7

5.4

1.05

9

3

3.3

6.6

1.25

11

3.5

3.8

7.6

1.5

13

4

4.4

8.8

1.7

14

4.5

4.9

9.8

1.9

16

5

5.5

11

2.1

18

6

6.6

13.2

2.5

21

6.5

7.2

14.4

2.7

23

7

7.8

15.6

2.9

25

8

8.8

17.6

3.3

28

9

9.9

19.8

3.7

32

10

10.9

21.8

4.1

35

11

12.1

24.2

4.5

39

12

13.2

26.4

4.9

42

13

14.2

28.4

5.4

46

14

15.3

30.6

5.8

49

16

17.5

35

6.7

56

18

19.6

39.2

7.6

63

20

21.7

43.4

8.4

70

22

24.3

48.6

9.2

77

24

26.4

52.8

10

84

26

28.5

57

10.9

91

28

31

62

11.7

98

30

33.1

66.2

12.5

105

32

35.2

70.4

13.4

112

34

37.8

75.6

14.2

119

36

39.8

79.6

15

126

38

41.9

83.8

15.8

133

40

44

88

16.6

140

42

46.2

92.4

17.5

147

44

48.4

96.8

18.3

154

46

50.6

101.2

19.2

161

48

52.8

105.6

20

168

50

55

110

20.8

175

52

57.2

114.4

21.6

182

54

59.4

118.8

22.5

189

56

61.6

123.2

23.3

196

58

63.8

127.6

24.2

203

60

66

132

25

210





Product Illustration



Powerful Machinery

Product Details



Stop Botton Ferrule





Powerful Machinery

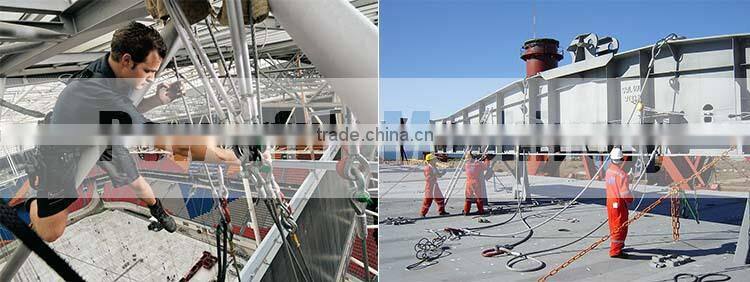

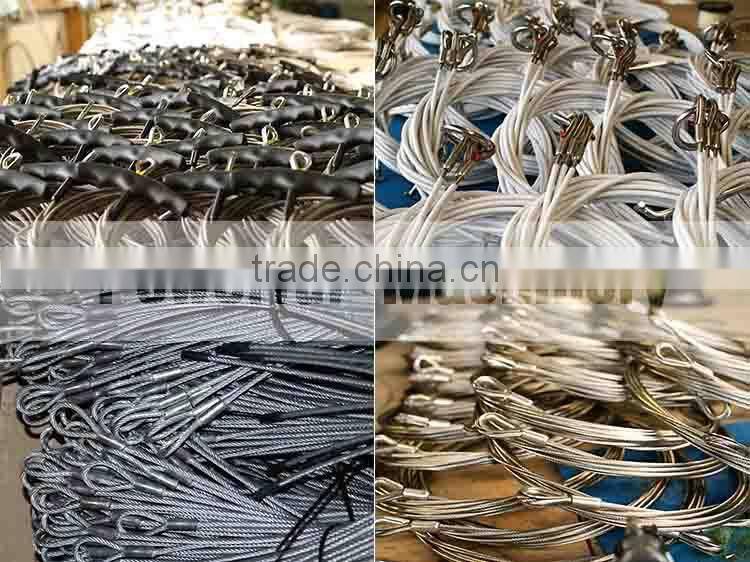

APPLICATIONS



Stop Botton Ferrule

Stop Botton Ferrule

Stop Botton Ferrule







Powerful Machinery

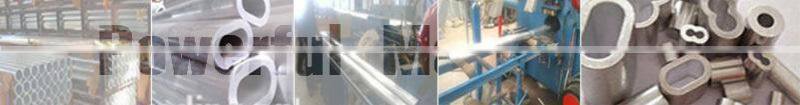

PRODUCTION



Stop Botton Ferrule





Our Services



Powerful Machinery

Our Services



We Supply We Provide
                 •  Fasteners               •   OEM Services
                 •  Marine Hardwares               •   ODM Services
                 •  Chains & Chain Fittings               •   Sourcing Services
                 •  Wire Rope  & its Fittings               •   On-Site QC Services
                 •  Other Rigging Hardwares               •   Procurement Services



Stop Botton Ferrule

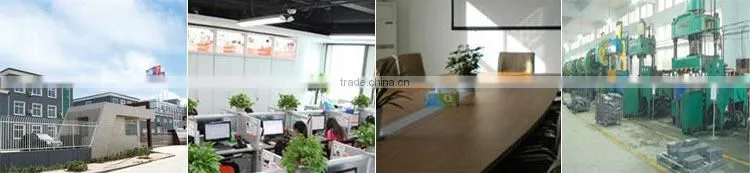

Company Information



Powerful Machinery

Company Info



 Stop Botton Ferrule





     •   We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually

         developed into a big manufacturer of marine hardware supplies.

     •   At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful

         Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership

         with other factories.

     •   Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in northern China.











Powerful Machinery

Marketing



Stop Botton Ferrule





     •   Our products, such as high grade chains, blocks & pulleys, steel  wire rope, stainless steel products, are popular in Europe, U.S,

          most Asia areas for its first class quality and competitive price.

     •   By offering one-stop solution service, our experienced customer service team can assist you from inquriy to  delivery.









FAQ



Powerful Machinery

F A Q



1. Are you a factory or trading company? We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.
2. Where is your factory located?

Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.

3. What products do you supply?   As mentioned above, Qingdao Powerful Machinery is capable of supplying:
♦ all kinds of marine supplies
♦ chains
♦ rigging hardwares
♦ fasteners
♦ and related hardwares
4. Do you produce them all?

We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.

5. How do you control quality?  By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.
6. Why are you more trustworthy than the other factories?  Quick Response:

We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.

7.  How do I pay?  We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.
8. How do I receive the goods?  With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported.

FOB, C&F, CIF are most commonly used trade terms.
