Specifications
60V40Ah li-ion battery pack for electric vehicleUL, CE Certificated
Size:350*300*170mm with soft PVC
Weight: 27.5kg

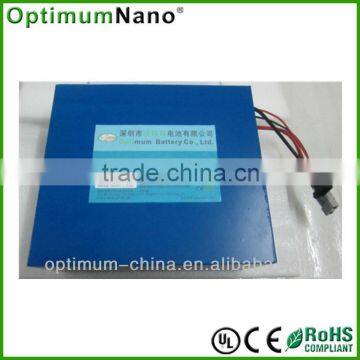

60V40Ah li-ion battery pack, used for Electric Two wheeler
APPLICATION:
SPECIFICATION:
Single cells model-
| Battery Model | Dimensions | Net Weight |
| 18650 3.2V 1300mah | Diameter:18, Height:65.5(mm) | 0.045(kg) |
| 22650 3.2V 2000mAh | Diameter:22, Height:65.8(mm) | 0.060(Kg) |
| 26650 3.2V 3AH | Diameter:26, Height:65.8(mm) | 0.086(kg) |
| 32650 3.2V 5AH | Diameter:32.2, Height:70(mm) | 0.14(kg) |
| 32750 3.2V 6Ah | Diameter:32.2, Height:75(mm) | 0.16(kg) |
Battery Pack Specification:
- Nominal voltage: 64V( Work voltage:3.20V/pc )
- Nominal capacity: 40Ah
- Charging voltage: 73V
- Dimensions: 350±1*300±1*170±1mm
- Discharging end voltage: 5.0V
- Charging temperature: 0 to 45°C
- Discharging temperature: -20 to 60°C
- Storage temperature: -20 to 45°C
- Weight: About 27.5kg
- Standard current:
- Charging: 0.2C
- Discharging: 1.0C
-
Maximum continuous current: Suitable for hybrid electric vehicles, electric bikes, scooters, energy storage equipment, polishers, saws, sanders, screwdrivers and UPS
- Charging: 1C
- Discharging: 2.5C
- OEM orders are welcomed
- Customized shapes, capacity and voltage are accepted
- High-energy density, long cycle lifespan, lower costs, high-security
- Eco-friendly
ADVANTAGES:
1) Safety: Currently the safest Li-ion battery, non-incinerated under over voltage of 2.5V charge, non-explosive under piercing.
2) Environmentally friendly. Non-toxic materials.
3)Powerful.
4)Long cycle life: 2000 cycles remain 80% capacity. Other Li-ion battery is only 300-500 cylces. Ni-Cd /Ni-MH and Lead battery is also only 300-500 cycles.
Stringently integrated with international management standard, our Batteries have secured ISO9001:2000, ISO14000, CE, UL, SGS/RoHC, RBRC homologation and especially TS16949:2002 certificate issued by NQA for EV cars batteries design and manufacturing. Our batteries are well sold to Western Europe, North America, the Oceania, the Middle East, East Asia and Mainland China.
Storage and Transportation
1 .Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
2. During transportation,50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.
3. Battery should be kept at -20°C~45°C in warehouse where it’s dry, clean and well-ventilated.
4. During loading of battery, attention must be paid against dropping, turning over and serious stacking.
Warnings and Tips
In order to prevent the battery leaking, getting hot and exploding, please pay attention to preventing measure as following:
Warning !
- Never throw the battery into water, keep it under dry, shady and cool circumstance when not use.
- Never keep the battery beside high temperature source examples: fire, heating machine and ect.
- Please use the stated charger when charging.
- Never upside down the positive and negative.
- Never cut the battery in socket directly
- Never throw the battery into fire or heating machine.
- Never connect the positive and negative of battery with metal.
- Never ship or store the battery together with metal
- Never knock, throw or trample the battery.
- Never cut through the battery with nail or other edge tool.
Tips !
- Never use or keep the battery under the high temperature. Otherwise it will cause battery heat, get into fire or lose some function and reduce the life.
- Never use the battery under strong static and strong magnetic field, otherwise it will destroy the protecting device
- If battery leaked, the electrolyte get into eyes, please don’t knead, please wash eyes by water and send to hospital. Otherwise it will hurt eyes
- If battery emit peculiar smell, heating, distortion or appear any unconventionality during using, storage or charging process, please take it out from device or charge and stop using.
- If the pole was duty, please clear it before using.
- Please encase the pole with isolative paper when you want to abandon the battery to prevent expolding and getting into fire.
