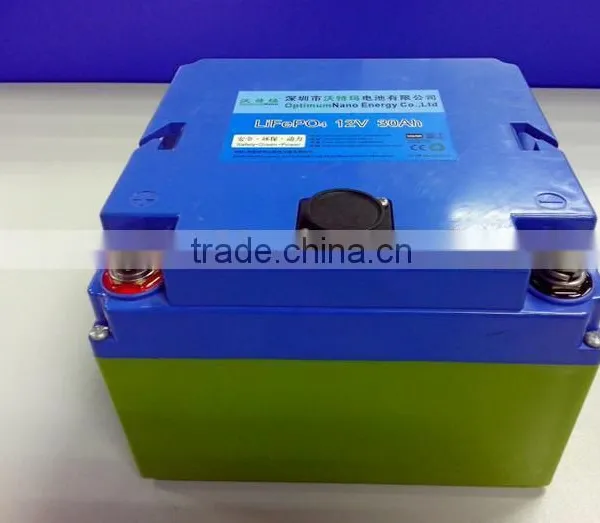

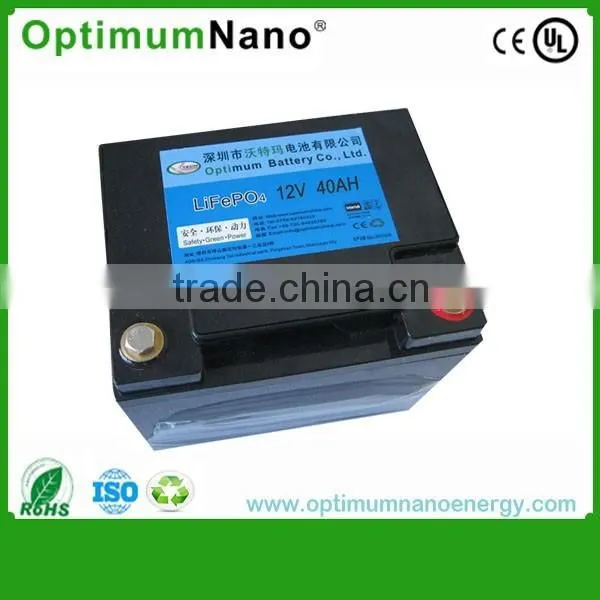

LiFePO4 Type and 12V Nominal Voltage Lifepo4 Battery Pack
US$ 110 - 145
MOQ: 3 Packs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OPTIMUMNANO
Model Number:
OPT1220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Lifecycle Time 24v 600ah Lifepo4 li Ion Battery for Boat With BMSUS$ 7,600 - 7,806MOQ: 1 Pack -
Aircraft Lithium Battery Pack 12V 35AHUS$ 1 - 300MOQ: 1 Pack
-
12V 20Ah LiFePo4 Battery Pack for Aircraft With 200A Peak CurrentUS$ 1 - 300MOQ: 1 Pack
-
100% Original LiFePo4 72v 40ah Battery Pack for E-car for Boats Starting-upNegotiableMOQ: 1 Pack
-
HEV/EV Lithium Iron Phosphate Battery Pack of 36V-60Ah With Suitable Charger and CaseUS$ 900 - 1,000MOQ: 1 Pack
Place of Origin
Guangdong, China
Brand Name
OPTIMUMNANO
Model Number
OPT1220
Type
Li-Ion
Nominal Voltage
Other, 12.8V, 14.6V
Size
Other, 175*175*118mm
Nominal Capacity
20Ah, 20Ah
LiFePO4 Type and 12V Nominal Voltage Lifepo4 Battery Pack

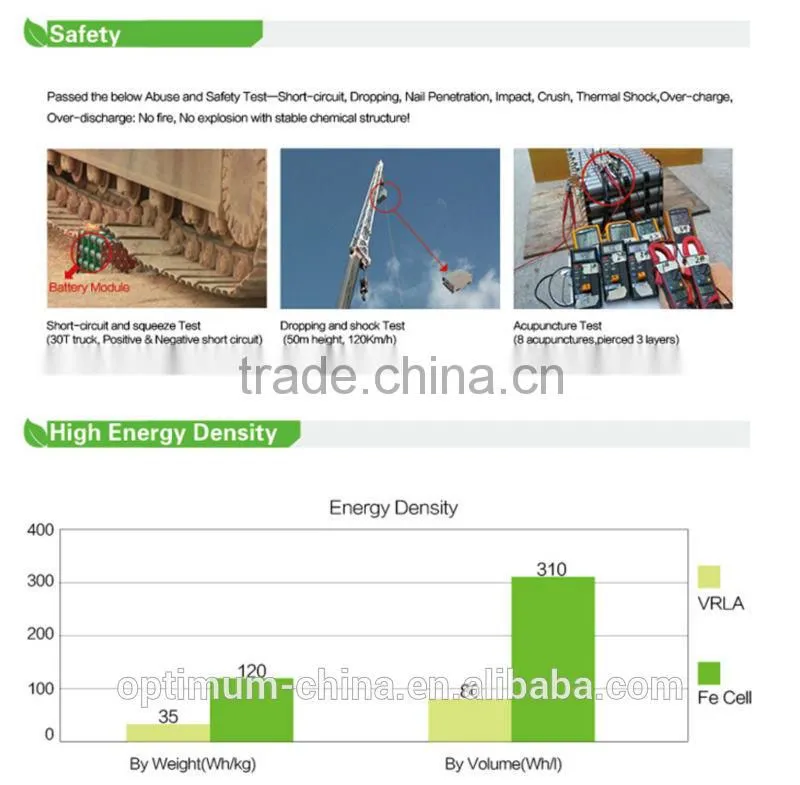

Safety,Long cycle LiFe,High Energy Density,Low self-discharging rate,

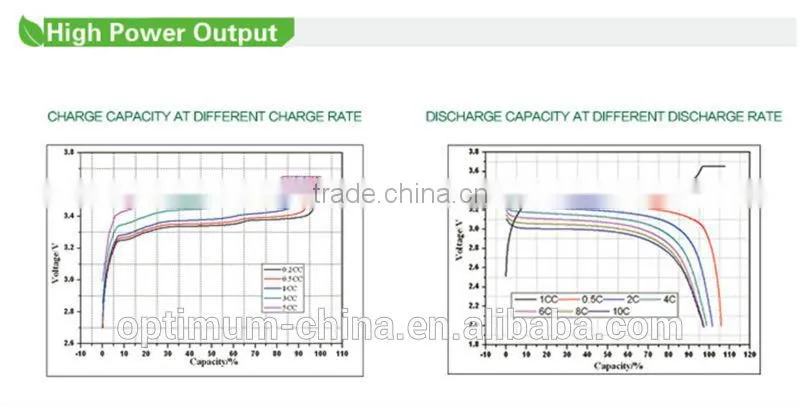

wide range temperature adaptability,High Power output,
Environment Friendly,cost performance
Product Description
| Basic Specification of 12V15Ah Battery PACK | |||
| Nominal Capacity | 20Ah | Cell Configuration | 4S4P |
| Nominal Voltage | 12V | Total Cell Quality | 16pcs |
| Discharge Cut-off Voltage | 10V | BMS | YES |
| Charge Cut-off Voltage | 14.6V | Dimensions(mm) | 175*175*118mm |
| Charge Current | 10A | Weight (including case) | about 3kg |
| Continuous Discharge Current | 20A | Charge Temperature Range | 0°C~45°C |
| Peak Discharge | 40A | Discharge Temperature Range | -20°C~60°C |
| Cycle Life ( 100% DOD,1C) | 2000 cycles | Charge Method | CC/CV |
Note; This battery is widely used for Caravan /RV / Motor homes
Product Feature
Packaging & Shipping
Our Services
Quick response to your enquiries whithin 24hours
Exclusive and unique solution can be provided to you by our experienced and professional engineers and R&D team.
Excellent quality and prompt after-sales service
any technical support and training
