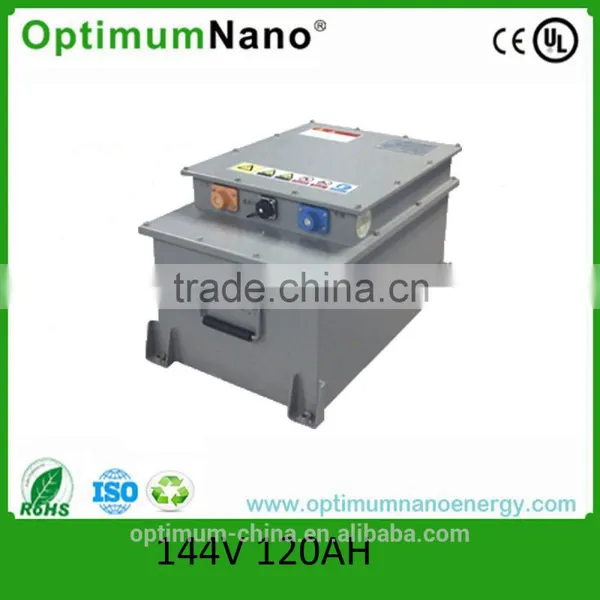

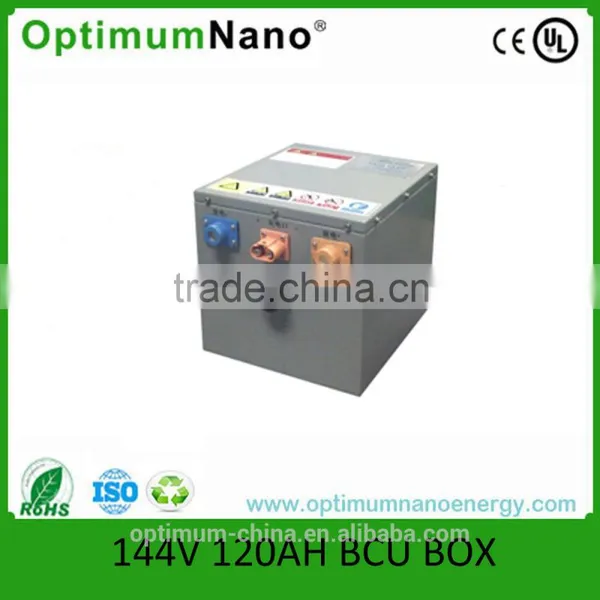

144v 120ah LiFePO4 patent packed car battery with smart BMS
Specification of LiFePO4 battery for electric car :72V 105Ah LiFePo4 battery
l Electrical Charateristics
Nominal Voltage |
144V |
Nominal Capacity |
120Ah |
|
Impedance (Max. at1000Hz) |
≤12mΩ |
Expected Cycle Life |
2000 cycles |
l Mechanical Characteristics
Height |
295±2mm |
Width |
338±2mm |
Length |
528±2mm |
Weight |
~220Kg |
l Operation Conditions
Charge Method |
Constant Current/Constant Voltage (CC-CV) |
Max. Charge Voltage |
14.6V |
Standard Charge Current |
21A |
Charge Temperature |
0℃~45℃ |
Max. Continuous Discharge Current |
105A |
Peak Instant Discharge Current |
250A, |
Peak Instant Discharge Time |
5 seconds |
Discharge Cut-off Voltage |
60.0V |
Discharge Temperature |
-20℃~65℃ |
Storage Temperature |
-20℃~45℃ |
Key Features of LiFePO4 battery :
l Attractive cycle life
l Extended safety performance
l Wide operating temperature range
l Unrivalled high temperature performance
l Green energy without metal contaminant
l High capacity
l Steady output voltage
l Little self-discharge
l Double safety protection
l Withstanding very high level of vibrations and shocks
About Us:
LiFePO4 battery developed and produced by Optimum use the internationlly mature cylindrical structure design, maximizing the performance with best battery structure, formular and material. Meanwhile, the conformity and dependence of cell are highly improved by improving production procedure and updated equipment. Now Optimumnano mainly produce 32650/32750 LiFePO4 battery, striving to maximize the power and density with identical module and dimension.
