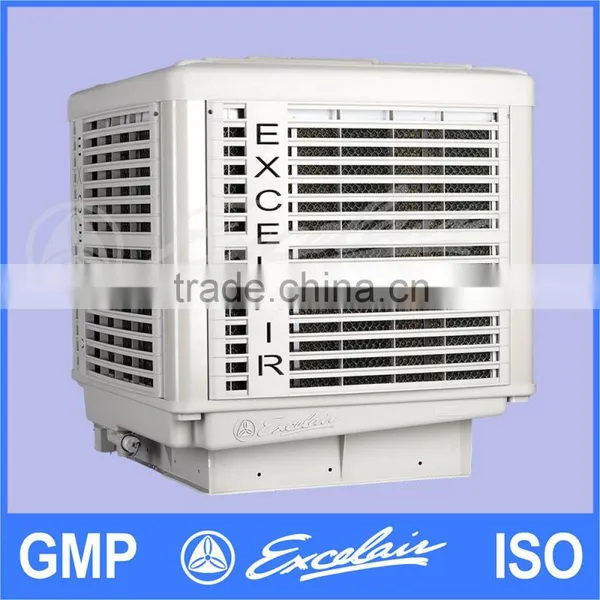

Evaporative cooler for industrial and factory air cooling
Our advantages:
1. Over 23 years experience in factory cooling system design, manufaturing and service, we keep quality and customers first and build up the famous Brand of "EXCELAIR".
2. We set office if Shanghai and Hongkong. And we have agent in the Southeast Asia Area and Colombia. We are devoloping the oversea market and will offer better after-sale service.
3. The one-stop service for design, manufacturing, installation and maintenance for the whole systems, we offer you the best service to save your time, cost and effors.
Specifiation of Excelair air cooler
| Model | G20 | G20A |
| Airflow | 16000 m3/h | 15200m3/h |
| Cover Area | 100~130m2 | 100~130 m2 |
| Max. Air pressure | 110 pa | 110 pa |
| Designed Air Speed | 10 m/s | 9.4 m/s |
| Evap. Efficiency | ~ 86% | ~ 86% |
| Water Capacity | 15 Liters | 15 Liters |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power Consumption | 1.0 ~ 1.3 kW | 1.0 ~ 1.3 kW |
| Airflow Adjust | 3 segments | 3 segments |
| Filter Washing | Auto/Manual | Auto/Manual |
| Water fill and drainage | Auto | Auto |
| Size of Dropper Duct | 668x668 mm | 668x668 mm |
| Make-up Water Inlet | 1/2" | 1/2" |
| Installed Dimension | 1040x1040x1105 mm | 1040x1040x1105 mm |
| Shipping Dimension | 1040x1040x1230 mm | 1040x1040x1230 mm |
| Operation Weight | 86 kg | 87 kg |
| Shipping Weight | 78 kg | 79 kg |
| 20-feet container | 18 units | 18 units |
| 40-feet container | 38 units |
38 units |
The below illustrutions highlight the significance of air cooling with open space cooling system in workspace settings
Excelair specially focus on the industrial cooling system and commit ourselves to create better working environment and increase productivity. We have a strict crtierion and monitor during the process of survey on site, system design,construction guide,test operating and after-sales service in order to ensure the efficiency of the whole system.
Over 20 years design and manufacturing experience in the industrial cooling systems. Have made a lot of solutions for many famous enterprises. Insist on quality first for more than two decades, which made us the leader in factory systems industry in China.
Certificate
Q1: What’s the main function of your products?
A1: Our cooling system is to help your factory for air cooling and ventilation
Q2: What’s the working principal of your system? Can the air to be heated in cold weather?
A2: The working principal of our system is that the air outside is cooled down by our evaporative cooler and supplied to the workshop. The Exhaust system take out the muggy air at the same time, then the workspace will be keep in the environment with cool and fresh air; Our system is for the air cooling and ventilation, can not heat the air.
Q3: What’s the power of your equipment, is the power consumption large?
A3: The power consumption of the air cooler is only 0.3W - 1.2 KW. And the power of the exhaust fan is 0.2 KW or 0.3 KW, which is very energy - saving and cost-effective.
Q4: My workshop need to keep the temperature and humidity in a stable level, can your products relize this?
A4: No. Keeping constant temperature and humidity is the function of other equipments. Our system is cool down the air and make the ventilation of your work space.
Q5: Will the system increase the humidity in my workshop? I need to keep a dry environment.
A5: Our system is to cool down the temperature of air, not so much influence to the humidity. But if you want to reduce the humidity, we cannot do it.
Q6: How can I install the system since we are not professional?
A6: We will design the whole system solution and product for you. When you get all the parts of the system. You can install the system according to our instruction. We will send you all the components even if a bolt. So you just combine all the parts together under the instruction.
Q7: What’s your warranty for the equipment? How do you maintain the system if it is doesn’t work?
A7: The warranty for the system is 1 year, and for the pad is 4 years. If there are problems for the parts during the warranty period, we will replace the part to you for free. If the machine doesn’t work, just contact us, we will help you to find the solution and instruct you how to repalce it.
