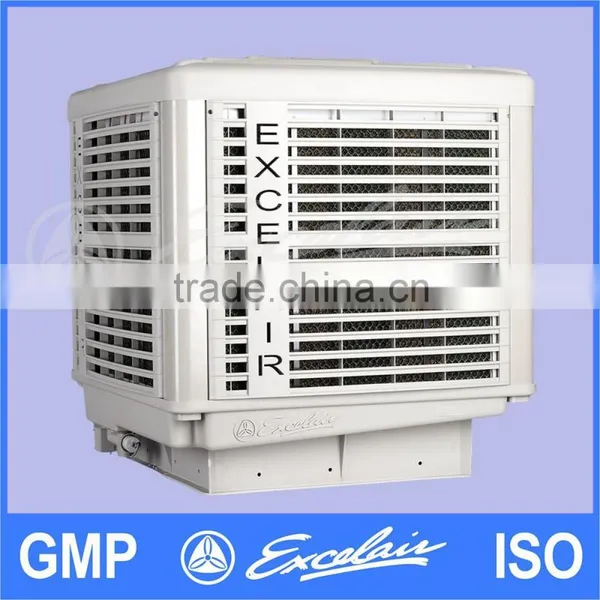

Industrial Evaporative Factory Air Cooler for Air Cooling
Excelari design the model of bottom discharge and side discharge, which make the highest effeciency and can be intalled on roof and on wall.
Specification & Model
| Model | EX767 | EX767A |
| Airflow | 16000 m3/h | 15200m3/h |
| Cover Area | 100~130m2 | 100~130 m2 |
| Max. Air pressure | 120 pa | 120 pa |
| Designed Air Speed | 10 m/s | 9.4 m/s |
| Evap. Efficiency | ~ 92% | ~ 92% |
| Water Capacity | 15 Liters | 15 Liters |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power Consumption | 0.3 ~ 1.2 kW | 0.3 ~ 1.2 kW |
| Airflow Adjust | 6 segments | 6 segments |
| Programmed on /Off | 6 stages | 6 stages |
| Filter Washing | Auto/Manual | Auto/Manual |
| UV Water Sterillizing System | Auto | Auto |
| Auto Drain | Auto Drain | Auto Drain |
| Size of Dropper Duct | 668x668 mm | 668x668 mm |
| Make-up Water Inlet | 1/2" | 1/2" |
| Installed Dimension | 1040x1040x1105 mm | 1040x1040x1105 mm |
| Shipping Dimension | 1040x1040x1230 mm | 1040x1040x1230 mm |
| Operation Weight | 95 kg | 89 kg |
| Shipping Weight | 88 kg | 81 kg |
| 20-feet container | 18 units | 18 units |
| 40-feet container | 38 units | 38 units |
Applications:
Suit for the industrial workshop such as :
Plastic injection, die-casting, spray coating, rubber processing, silkscreen, toys assembly electronics, household appliances, shoes, printing, cladding, hardware, food processing, textiles, garments and dyeing, laundries, greenhouse
We have different design such as space cooling, area cooling and spot cooling. Engineer will design according to customer's factory play and layout, which makes Excelair evaporative air cooling system in best effect and most cost effective.
Evaporative air cooling system cool the outside air temperature with the directly evaporative cooling, supply the cool and fresh air intothe workshop, and then exhaust the hot air outside. The temperature ofthe workshop will be cooled down by exchanging the air inside.

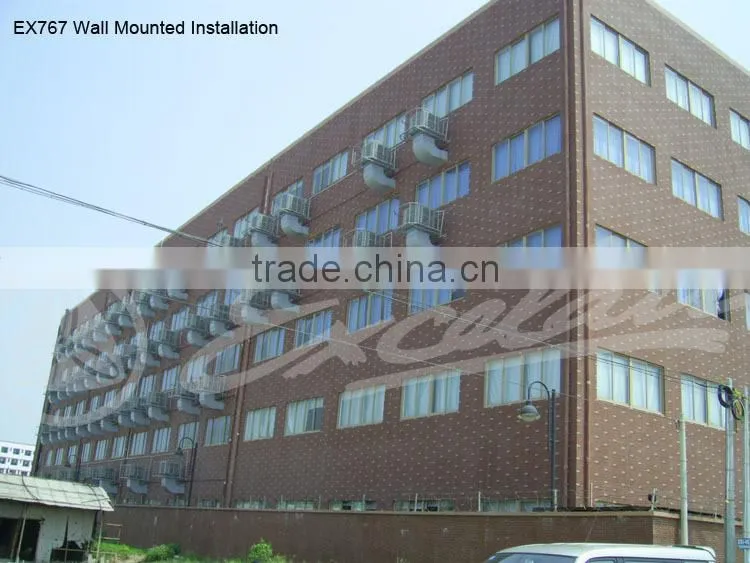

llustration of Installation

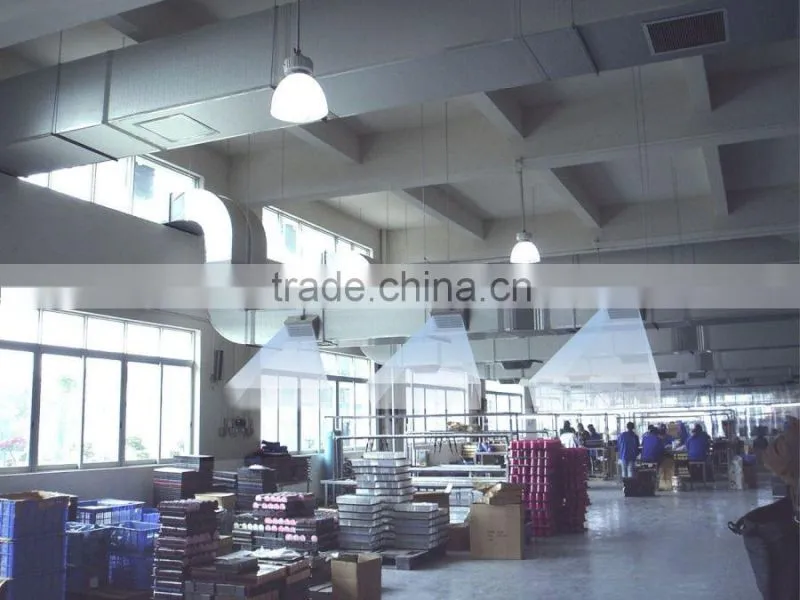

Application case
Over 20 years design and manufacturing experience in the industrial cooling systems. Have made a lot of solutions for many famous enterprises. Insist on quality first for more than two decades, which made us the leader in factory systems industry in China.
