# Specification & Model
| Model | EX767 | EX767A |
| Airflow | 16000 m3/h | 15200m3/h |
| Cover Area | 100~130m2 | 100~130 m2 |
| Max. Air pressure | 120 pa | 120 pa |
| Designed Air Speed | 10 m/s | 9.4 m/s |
| Evap. Efficiency | ~ 92% | ~ 92% |
| Water Capacity | 15 Liters | 15 Liters |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power Consumption | 0.3 ~ 1.2 kW | 0.3 ~ 1.2 kW |
| Airflow Adjust | 6 segments | 6 segments |
| Programmed on /Off | 6 stages | 6 stages |
| Filter Washing | Auto/Manual | Auto/Manual |
| UV Water Sterillizing System | Auto | Auto |
| Auto Drain | Auto Drain | Auto Drain |
| Size of Dropper Duct | 668x668 mm | 668x668 mm |
| Make-up Water Inlet | 1/2" | 1/2" |
| Installed Dimension | 1040x1040x1105 mm | 1040x1040x1105 mm |
| Shipping Dimension | 1040x1040x1230 mm | 1040x1040x1230 mm |
| Operation Weight | 95 kg | 89 kg |
| Shipping Weight | 88 kg | 81 kg |
| 20-feet container | 18 units | 18 units |
| 40-feet container | 38 units | 38 units |
Principles of Industial Sites Cooling System
Evaporative cooler cool the outside air temperature withthe directly evaporative cooling, supply the cool and fresh air intothe workshop, and then exhaust the hot air outside. The temperature ofthe workshop will be cooled down by exchanging the air inside.
# Applications:
Suit for the industrial workshop such as :
Plastic injection, die-casting, spray coating, rubber processing, silkscreen, toys assembly electronics, household appliances, shoes, printing, cladding, hardware, food processing, textiles, garments and dyeing, laundries, greenhouse
Cooling Effect

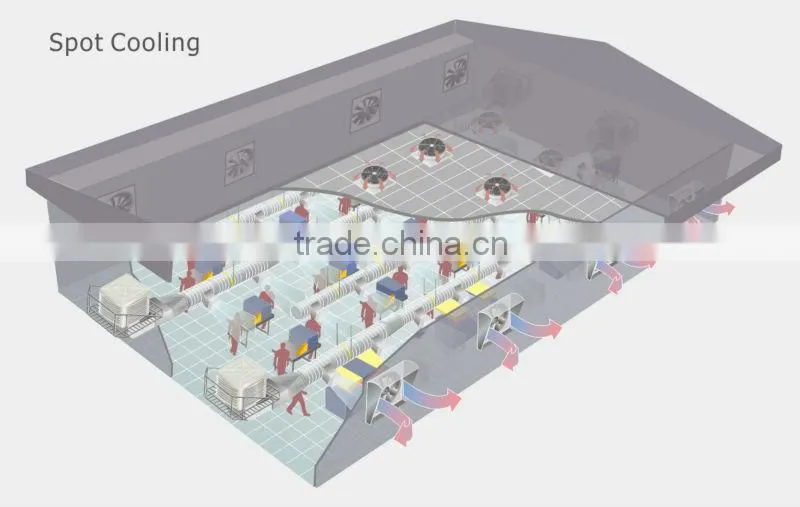

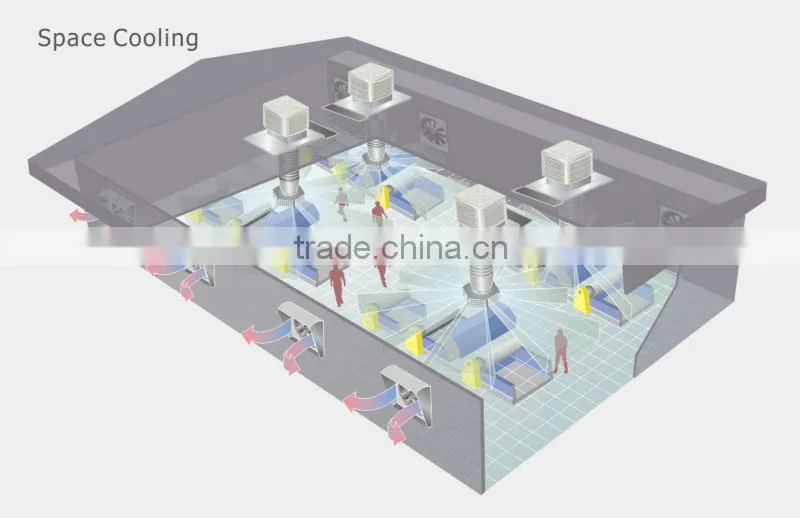

Illustration of Installation
Our water air cooler uses water to absorb heat from the air during the evaporation process to bring down the air temperature.
