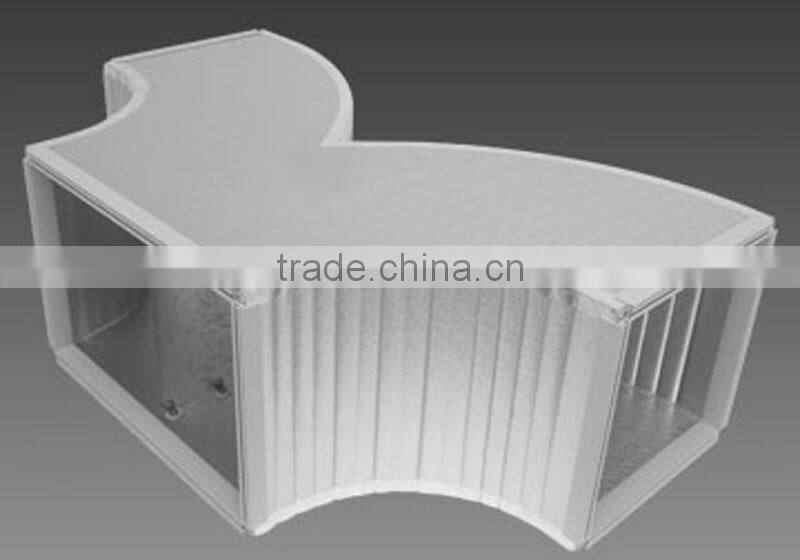

HVAC air duct for air condition and cooling system

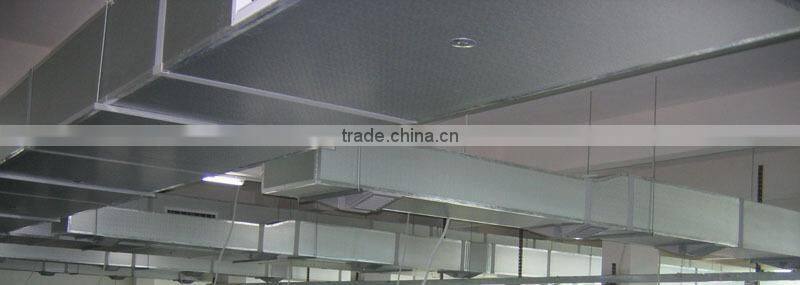

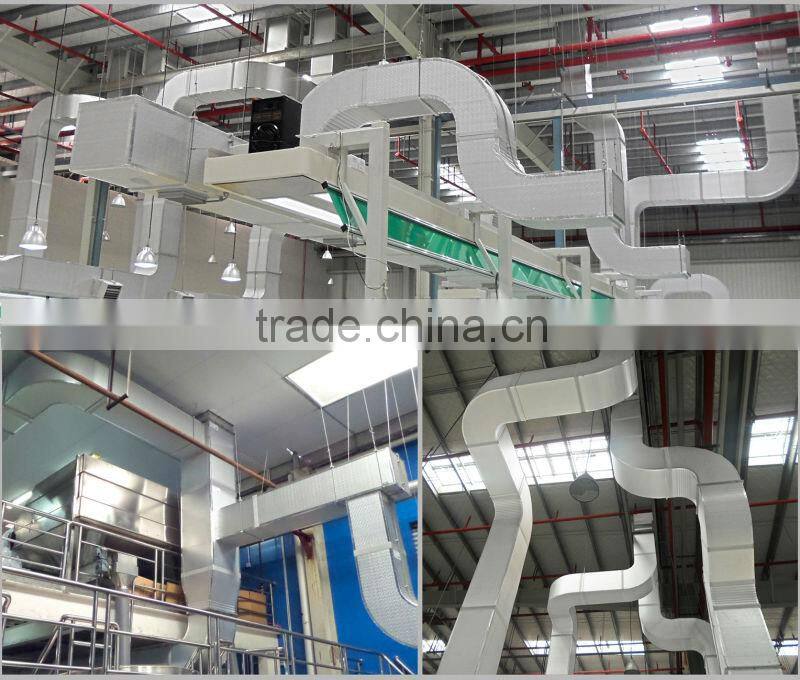

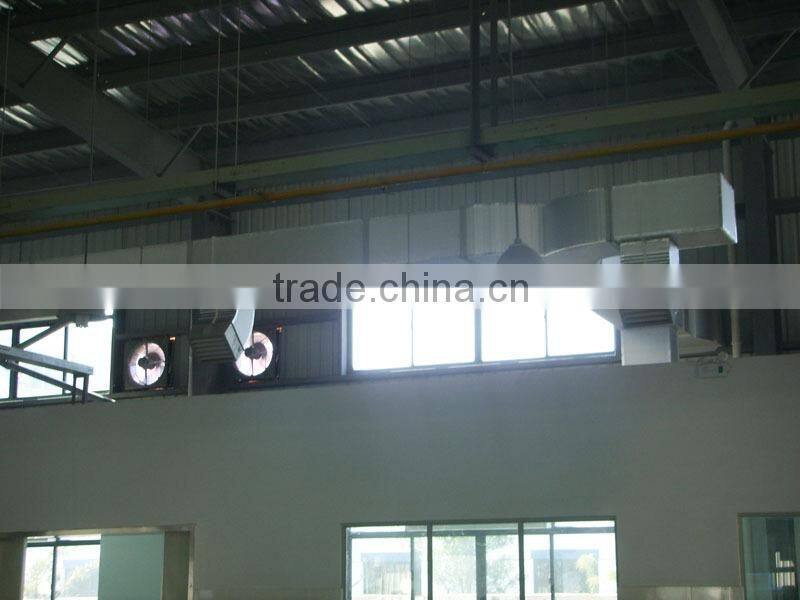

PIP air duct is factory pre-fabricated & pre-insulated. The PIP air duct is used for commercial building/office and industrial place and factory workshop HVAC system.
Key Features of PIP Air Duct:
* Optimal Engery Efficiency Performance
* Significant Time Saving for Field Installation
* Reduced Installation Costs
* Easy Maintence and Hygienic Properties
Panel Technical Specification:
Panel Thickness: 20mm
Foam Density: 50-55 kg/M3
Aluminum Facing Thickness: 80 micron
Thermal Conductivity: 0.02 W/m.k
Fire Retardance: B1 non-inflammable
Aluminum finishing: Embossed
The innovative PIP air duct will save up 60% working time, will reduce labour cost.

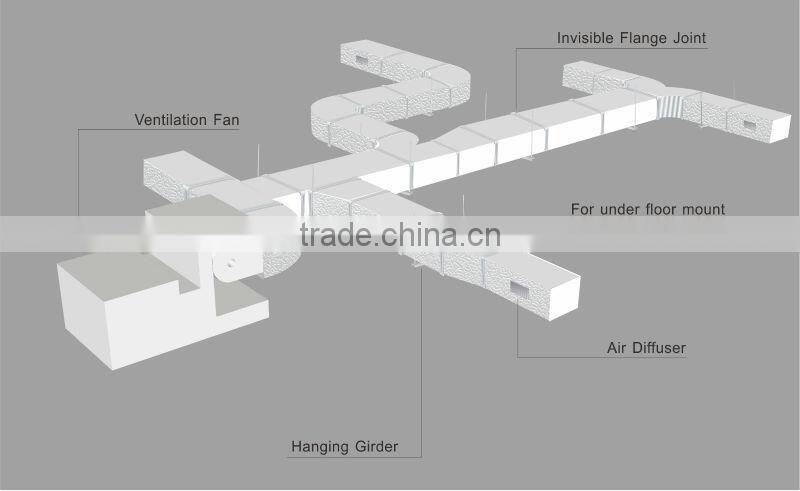

Special flange design makes the duct installationg as easily as playing building blocks.
PIP insulated duct is installed with low cost, delivering the duct to your appointed site, you just connect each modular duct together easily and hang the whole duct up to the ceiling.

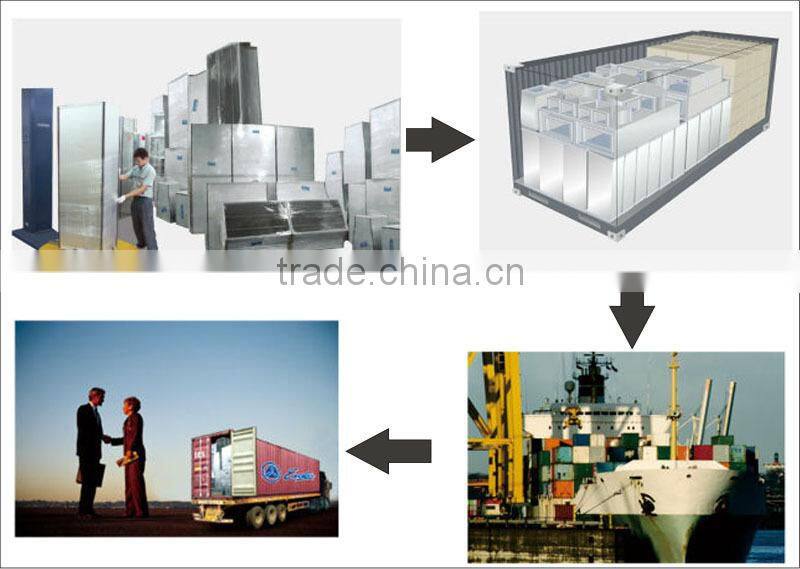

We will try our best to protecte our product in packaging and save the space in the process of shippment.
Over 20 years design and manufacturing experience in the industrial cooling systems. Have made a lot of solutions for many famous enterprises. Insist on quality first for more than two decades, which made us the leader in factory systems industry in China.
Certificate
Q1: What’s the material of you air duct?
A1: The inside material of our PIP air ducts is polyurethane, and the outside material is aluminum foil, which makes our air ducts very light and durable.
Q2: What’s the difference of your air ducts from the zinc - iron air ducts?
A2: Compare with the zinc-iron air ducts, our PIP air ducts have the advantages of light, easy installation, long life span, easy washing and anti-rust etc.

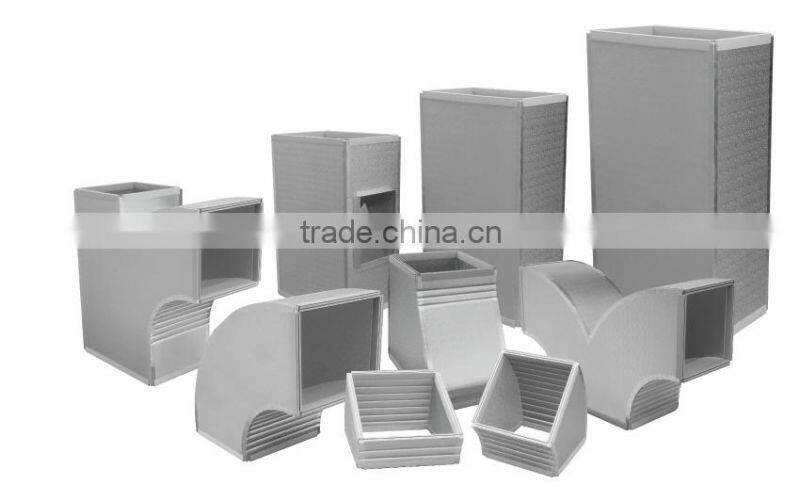

Q3: Why the ducts are in different shape?
A3: We design and produce the air ducts for you. When you get them. You just connect them piece by piece by the special flans.
Q4: How much is one square meter?
A4: We don’t sell the duct panels. All the ducts are ready make products. You give us your size and dimension. Our engineer will design you the proposal.
Q5: Since you ducts are readymade products, they occupy a lot of space, which will take too much shipping cost. How do you solve this problem?
A5: We will try our best to put the small duct into the big ones, then it can save a lot of space. What’s important, the high-efficiency of our installation, long life span and low maintenance costs will make your investment rewarding.
