Machine photo:
Introduction:
JBZ-B type paper cup machine is the automatic machine with multi-running positions.This machine runs a whole procedure of paper-feeding gluing oiling bottom-punching heating rolling romming rounding and tripping.The production of beverage and ice cream cups with single side adhibitting menbrane and other food cone-shaping containers.
Main Techincal Parameter:
Model |
JBZ-B |
Paper Cup Size ( Capacity) |
2oz-16oz |
Bottom Diameter of Paper Cup (mm) |
30mm-70mm |
Height of Paper Cup (mm) |
40mm-120mm (Standard size machine) |
Height of Paper Cup (mm) |
120mm-168mm (Special size machine) |
Required paper |
Single side coated paper |
Paper Weight (g/m2) |
130 g/m2-280 g/m2 |
Ration productivity |
40-50 pcs/min |
Electric source |
220V 380V 50HZ |
Range of Temperature Control |
0-400 |
General power |
5KW |
Weight |
1400kg |
Size of outer package(L*W*H) |
2850*1350*1780MM |

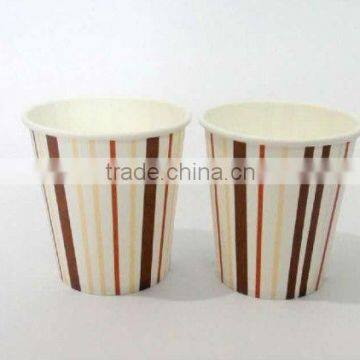

Sample picture:
Workshop:
