The side channel blowers introduction.
A classic in its field with their high inlet volume flow up to 2330 m3/h and a differential pressure of up to 750 mbar, our low noise GH Range of Side Channel Vacuum Pumps & Blowers have the edge on its competitors. They are reliable, low maintenance and durable. They deliver 25,000 operating hours without fail.
Single Stage and Double Stage options.

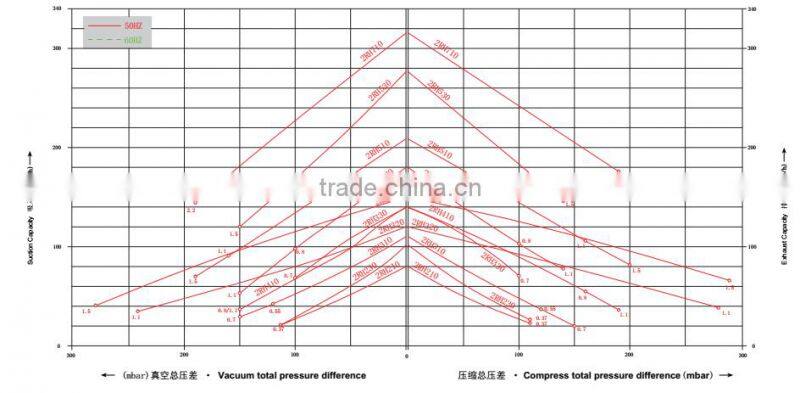

- Performance Data - 50Hz

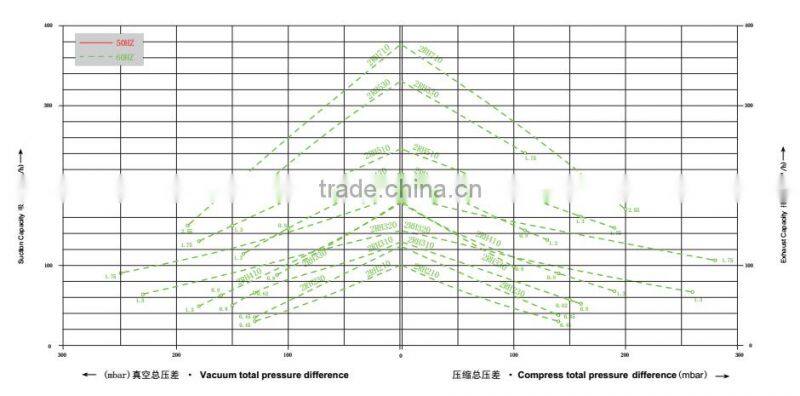

- Performance Data - 60Hz
The Side channel blowers operating principe.
The impellers in the air blower are mounted directly on the motor shaft for noncontact compression entirely without friction.Maximum operation reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 channel 2.As it enters the side,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impellr blades accelerates the gas outward and the pressue increase.Every rotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the roto.sweeping the gas off the impeller and discharging it through the outlet silencer 4 where it exits the side channel blower.
Application for the blower:
- Agriculture(Fish pond and aeration tanks)
- Beverage(bottle drying)
- Bio fuels/bio-gas system
- Food and vegetable processing
- Medical and Health service(Dental cart and dental vacuum)
- Package (Air knives blown-off / Labeling/Drying)
- Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
- Printing
- Paper and pulp/ paper converting
- Textile industry
- Transportation/Loading/Unloading(Pneumatic conveying/material handling)
- Water treatment/sewage treatment
- Woodworking(CNC Routing/bulk handling
