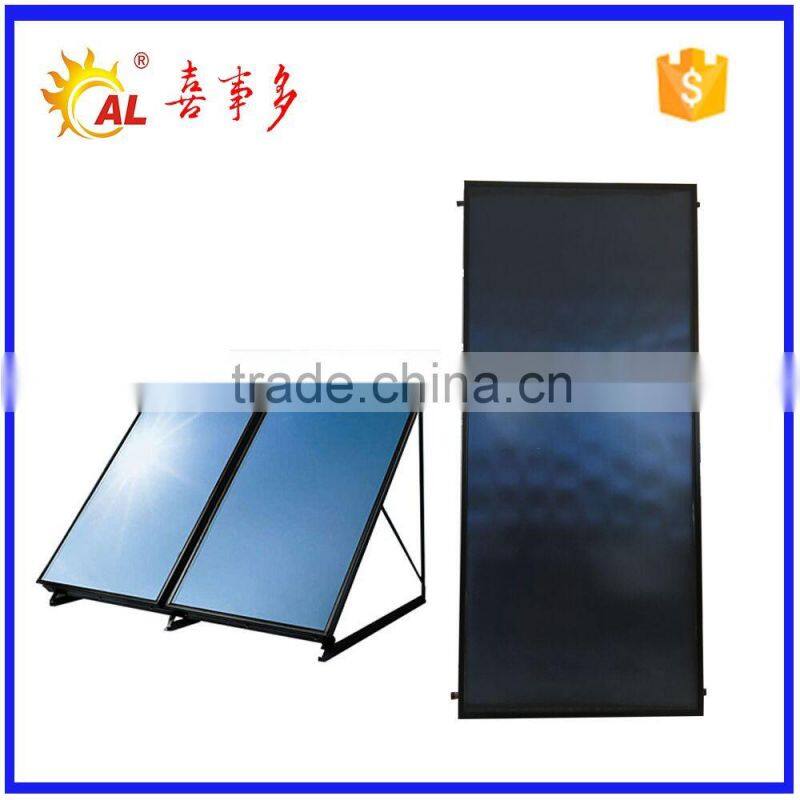

Solar collectors both electric and solar thermal for hot water heating system

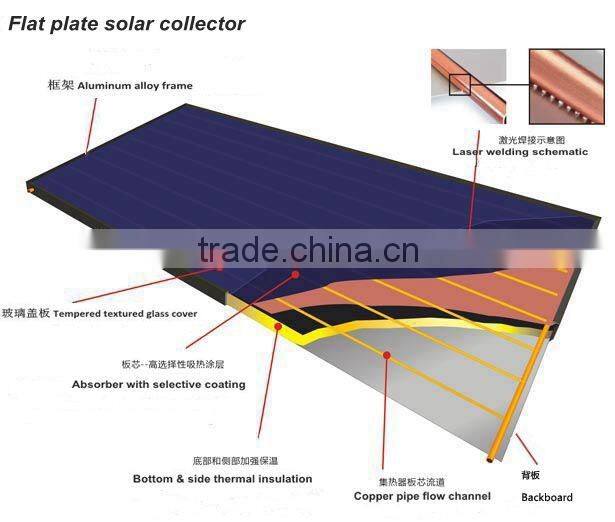

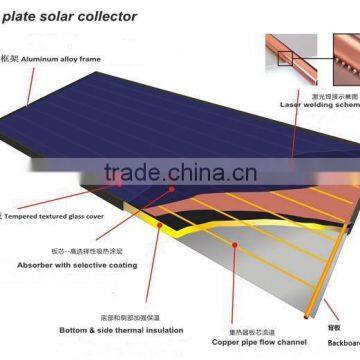

Section view of solar collector
Solar collector parameters eters
| Collector | Dimension | 2000 (L) x 1000 (W) x 80 (T) mm |
| Gross area | 2 m² | |
| Aperture area | 1.9m² | |
| Total weight of empty collector | 30.5kg | |
| Transparent cover | Nuber of covers | 1pc |
| Dimension of the opening | 1980 x 980mm | |
| Cover material | Tempered textured glass | |
| Cover thickness | 3.2mm | |
| Cover transmittance | 91.70% | |
| Absorber | Material | Copper TP2 |
| Surface treatment | Black chromend/blue coating | |
| Construction type | laser welding | |
| Header material | Copper TP2 | |
| Header tuber size | Φ22mmX0.6 | |
| Riser material | Copper TP2 | |
| Riser tuber size | Φ10mmX0.45 | |
| Thermal insulation | Insulation material | Glass wool Insulation |
| Insulation thickness | Back 30mm | |
| Casing | Frame | Aluminum alloy |
| Frame colour | Black | |
| Back plate | Galvanised steel plate 0.3mm | |
| Max operation temperature | 60°C | |
| Sealing | weatherproof silicone sealant | |
| Limitations of operation | ing temperature | 120°C |
| ing pressure | 0.6MPa | |
| ure that cover can support | 18MPa | |
| Recommended circulation flow | Propylene glycol | |
| Resistance to freezing | Not under minus 30°C |

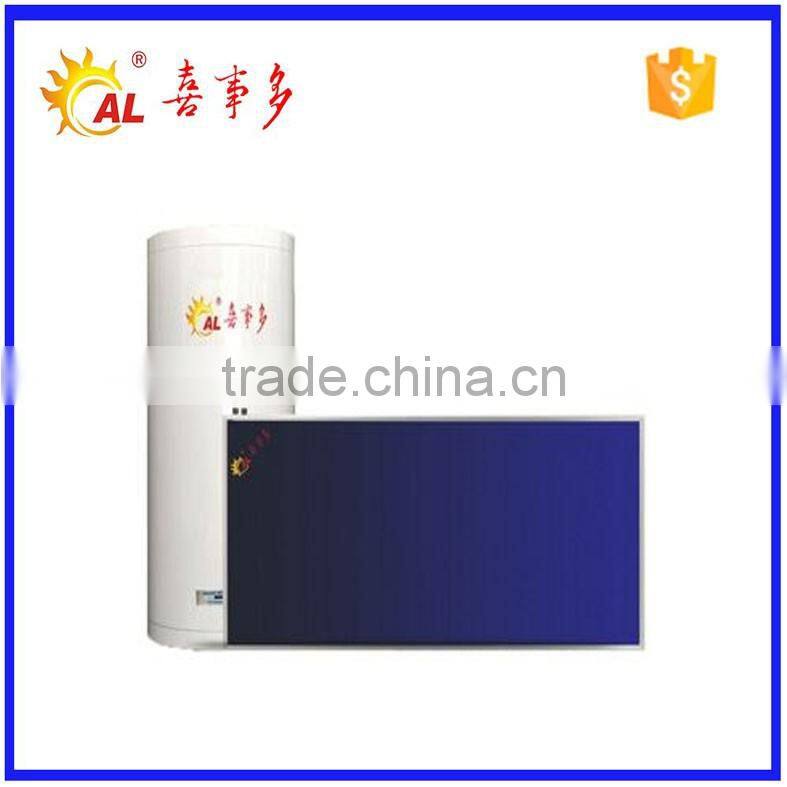

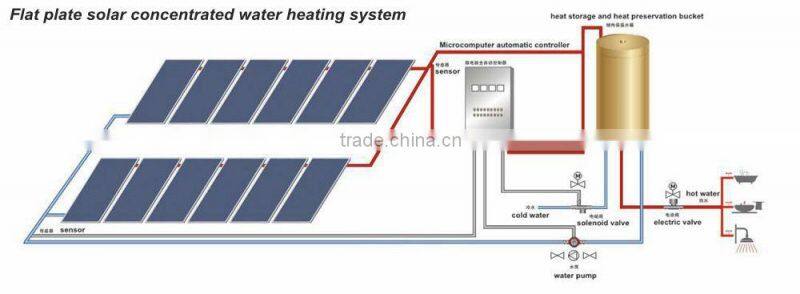

Solar collector concentrated water heating system
| Type | Collector Number |
Specification (water tank capability) |
Related configuration | Applicable person number |
| P-G/0.6-T/HG-1.9-1 | depend on Specific demand |
Microcomputer automatic controller ; High standard quality colletor and expansion drum; pressurized water tank; Pumping station; |
More people use | |
| Application | Hotel,hospital,factory,office,swimming pool,student apartment etc large hot water demand sites |
|||
Solar collector specialty
1. Using high quality plate core can make higher heat collection rate;
2. Flat plate design and Combined perfectly with the construction;
3. Split & pressurized design and installation, position of the water tank can be placed arbitarily;
4. Anti shock & freeaing design,working regualarly at 30 degrees below zero, more safe on using;
5. Full automatic control, convenient and reliable;
6. Both Solar and electrical energy: 24 hours supply of hot water;
7. Brand embodiment, energy saving and environmental protection;
8. Centralized display layout, make full use of the heat collection space, reduce investment and cost,save energy and reduce emissions.

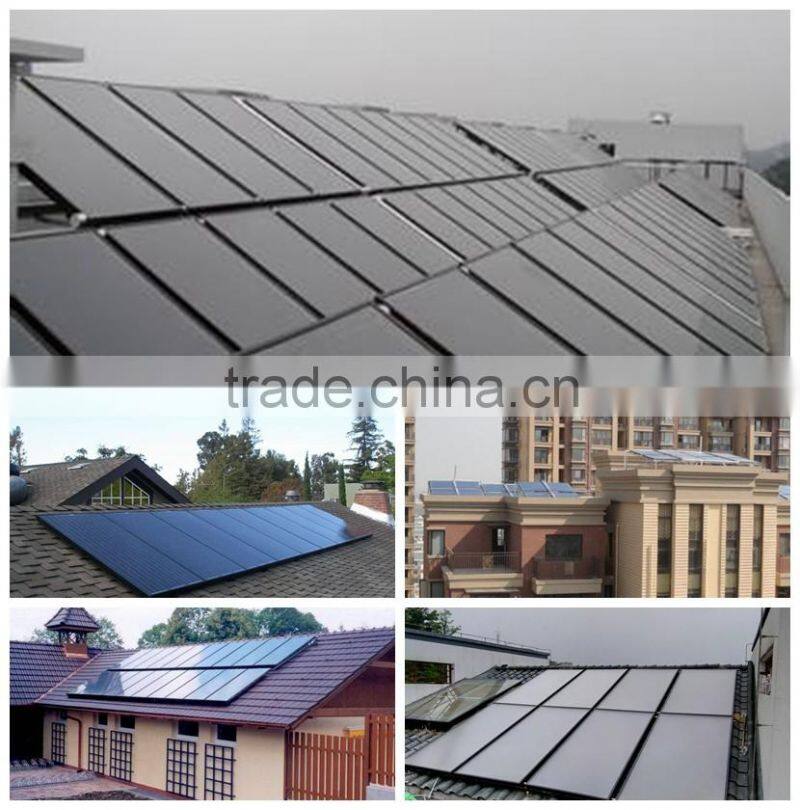

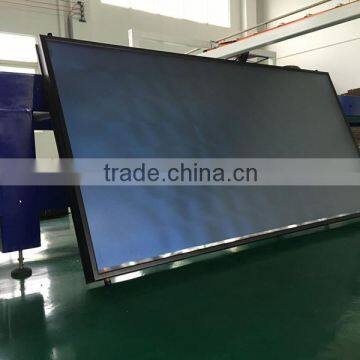

Solar collector project

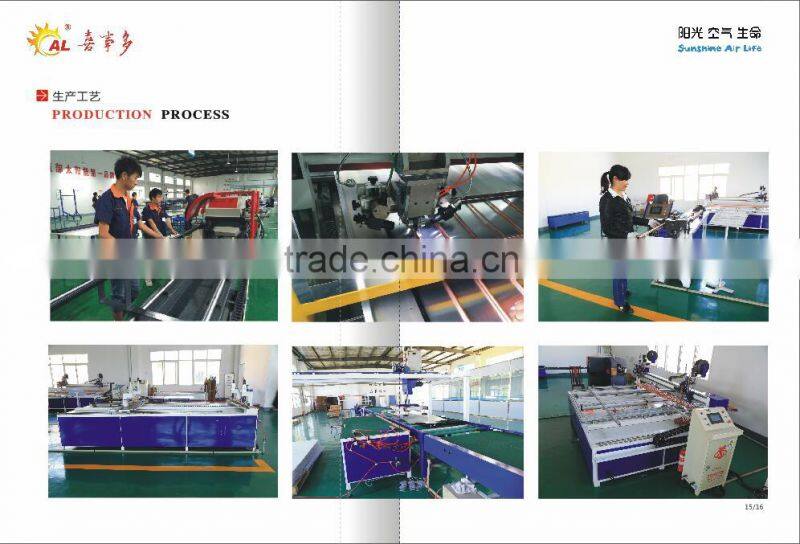

Hubei Xishiduo Solar Technology Co.,ltd. is located in Zigui County-Hometown of Quyuan , the unique location of the Three Gorges Dam that attracts worldwide attention. The company is committed to the design and development, manufacturing and sales promotion of solar energy equipment and system and other renewable energy sources.
Main products and services : flat plat solar collector, all-glass evacuated solar collector, solar water heater, solar street lamp and courtyard lamp, and its Design, installation and technical service.
Welcome customers from home and abroad to cooperate with us .
· Sample / LCL order will in wood cartoon with high quality export carton
· Full container order in high quality export carton with wooden pallets
· Sample can be offered with sample charge and courier fee by buyer's side.
· We have full stock,and can deliver within short time
· OEM order are accepted, Any kind of logo printing or design are available.
· Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
· All of our products are produced by our professional workman and we have our high-work-effect team
· If any question,please contact with us freely by E-mail or Telephone.
1. what is your delivery time?
· Sample in one week after payment.
· LCL order 10 days after deposit
· Full containe order 15days after deposit.
2. what is your Guarantee time?
· 3 years, and 1 years for accessories
· provide you with some extra accessoires for free
3. Can you accept OEM?
· Yes
4. What is your MOQ?
· 1 sets
5. What is your Payment Term?
· We accept T/T or Western Union
