Help CenterWASTE TIRE SINGLE- SHAFT SHREDDER MACHINE
Related Products
Factory
we are the factory which is specialized in recycling of the waste tyre,car body,PET bottle,Plastic Film.Rubber and so on.we have the mature experience in producing the tyre recycling system.and it has been exproted to more than twenty countries.
Price
all of production have competitive price,and the quality is stayable all the time,all the domestic and overseas customers have great satisfation with our production.

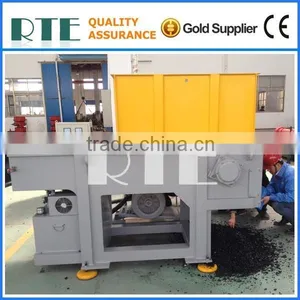

waste tyre single-shaft shredder
WASTE TIRE SHREDDER MACHINE is one of the most versatile and widely used crushing equipment. Featured with hopper of high capacity and alternative structure, material can be fed directly without an additional feeding system. Hydraulically driven ram effectively prevents material from running and wandering about, thus ensuring low noise level, high efficiency and speed shredding. The intelligent design in low speed rotor and adjustable blade-mounts makes the shredding process extremely easy for material in shapes of bundle, strip, scroll, and entanglement.
Design
A. Material can be directly fed from high-volume hopper
B. Hydraulically driven ram drives material towards rotor

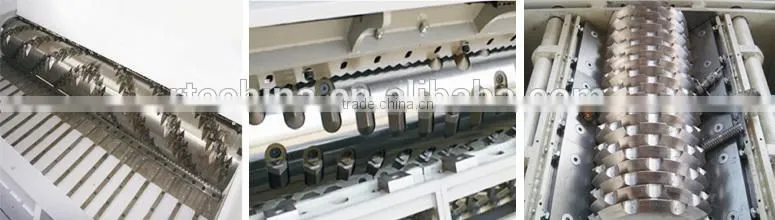

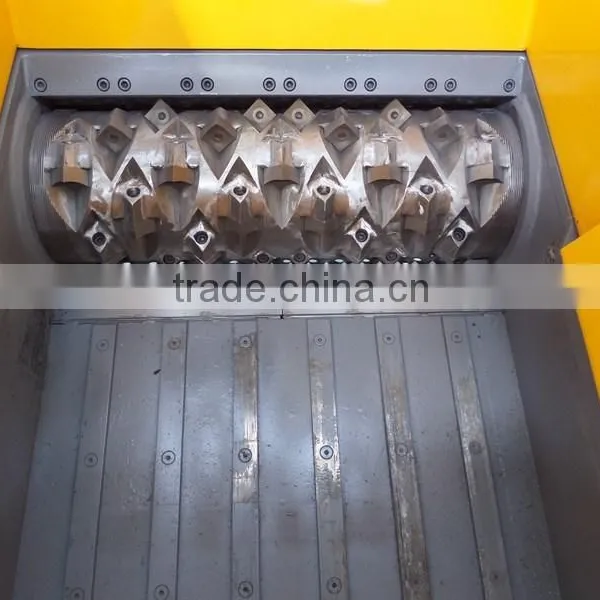

C. Rotary cutter tears material up, and with stationary cutters performs interactive shredding
D. Screen with multiple options of mesh diameters, ensuring product size up to customer’s requirement
Parameter
| Rotary Blades(pcs) | 42+4 |
| Stowing Inlet size(mm) | 1410X600 |
| Rotating Diameter(mm) | 390 |
| Rotating Speed(rpm/min) | 73.7 |
| Power(kw) | 30 |
| Hydraulic Power(kw) | 1.5 |
| Screen Mesh Diameter(mm) | 15-40 |
| Weight(kg) | 3000 |
Feature
1.Low speed rotor with high torque level
2.Excellent control of noise and dust
3.Featured with hydraulically driven ram and force-feeding swing arm
4.180° rotation optimizing cutting performance
5.Swing-arm installment of gearbox and micro-switch detection for better protection of gears and electric machine
6.SKD11, D2, DC53 and ASP60 import of cutter steel to enhance cutting strength, abrasion resistance and service life
7.80-100 hour test under “real-life” condition, high reliability
Applications
1.Plastic: HDPE; purging; PET bottles; film (loose packing, bales or scrolls); foam plastic; sponge; fiber-glass; plastic packaging; plastic tubes; CD/DVD; waste baskets; bumpers; dash boards; mobile phone shells
2.Rubber: rubber block; rubber blanket; rubber tube; sealing; bladder; tyre tube; rubber fiber; rubber rolls
3.Textile: clothing; fabric; leather; carpets
4.Paper: paper waste (loose packing or piles); card-boards; corrugated paper; boxes; cardboard tubes; tetra packaging
5.Wood: lumber; pallets; furniture
6.Electronics: circuit board; hard disk; toner cartridge
7.Metal: UBC; punched scrap
8.Cables with aluminum or copper conductor
By cartons or as customer's requitement
Repair
Should you ever need repair service – our well-trained service staff will take care of a
quick and reliable repair service or general overhaul of your machine on site or in our
RTE service centre.
Your benefit:
Short response time and expert support in emergencies
1.Service hotline
2.Highly qualified and experienced service engineers
3.General overhauls on site and at the RTE Service Centre
RTE is high technology machinery and equipment manufacturing enterprise specialized in recycling and processing of industrial and domestic waste. Located in Yancheng city, Jiangsu province of China, the company, ever since it was founded, has been committed to the cause of excavating, developing and utilizing the "urban minerals ". Up to this day we have accumulated abundant experience in researching, developing, designing and manufacturing.
