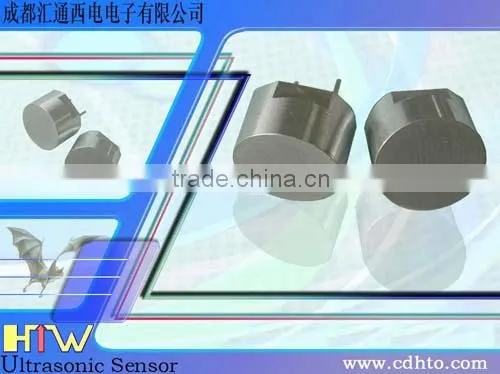

EFR-40RS14B1, Ultrasonic Sensor
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Voltage:
DC 12V
Place of Origin:
Sichuan, China
Brand Name:
HTW, HTW
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Voltage
DC 12V
Place of Origin
Sichuan, China
Brand Name
HTW, HTW
Model Number
EFR-40RS14B1, EFR-40RS14B1
Specifications
Ultrasonic sensor used for installation in parking system to detect the obstacles.Certifications: ISO9001:2000/TS16949/RoHS.
I. Features of ultrasonic sensor EFR-40RS14B1:
1. High sensitivity
2. High reliability.
3. Less power consumption .
4. Waterproof.
5. Easy to installation.
II. Specifications of ultrasonic sensor EFR-40RS14B1:
- Nominal Frequency (kHz) 40±1
- capacitance (pf ) 2000±15%
- Ring Time (ms) ≤1.2
- Sound Pressure Level (db) 105±5
- Sensitivity (db) -73±5
- Resistance (Ω) 500
- Directivity (oC) 110×60
- Max. Input Voltage (Vp-p) 150
- Operating Temp.Range (oC) -35±80
- Storage Temp. (oC) -40±85
- Weight (g) 2.4
