Specifications
1. It is widely used for installation in parking sensor system to detect the obstacles.2. Certifications: ISO9001/TS16949/RoHS

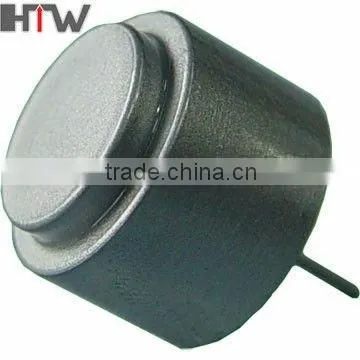

I. Features of Parking Sensor EFR-40/48/58RS16C:
1. Functions: transmitter and receiver.
2. Terminal: pin
3. Housing material: aluminum.
4. Applications: range finders, burglar alarms, automatic door, remote control, ultrasonic distance meters.
5. Features: High sensitivity, high reliability, less power consumption and waterproof.
II. Specifications:
Nominal Frequency (kHz) |
40±1 |
Capacity (pf) |
2000±15% |
Ring Down Time (ms) |
≤1.2 |
Sound Pressure Level (dB) |
105±5 |
Sensitivity (dB) |
-70±5 |
Resistance (Ω) |
500 |
Directivity (°) |
90±5 |
Max. Input Voltage (Vp-p) |
150 |
Operating Temp. Range (oC) |
-30~+80 |
Storage Temp. Range (oC) |
-40~+85 |
Weight (g) |
2.9 |
