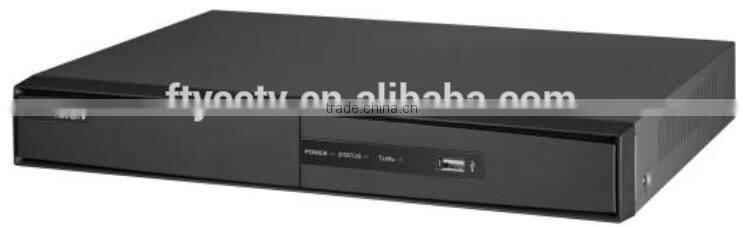

DS-7216HGHI-SH 16CH Hikvision Turbo DVR
DS-7216HGHI-SH
DS-7200HGHI-SH series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog/network cameras and Coaxitron cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.
The DS-7200HGHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc..
> Connectable to HD-TVI and analog cameras;
> Connectable to the Coaxitron camera with long transmission distance;
> Connectable to network cameras;
> Simultaneous HDMI and VGA outputs at up to 1920×1080P resolution.
> New GUI and support starting record with one key;
> Redundant recording and holiday recording;
> Instant playback for assigned camera during multi-channel live view mode;
> Support up to 16-ch synchronous playback at 1080P resolution; and reverse playback for multi-camera;
> Smart playback to go through less effective information;
> Manual video quality diagnostics;
> Customization of tags, searching and playing back by tags;
> Locking and unlocking record files;
> Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode;
> Provide up to 2 SATA interfaces for recording;
> Up to 1 self-adaptive 10M/100M/1000M network interface for DS-7216HGHI-SH and 1 self-adaptive 10M/100M network interface for other models;
> Support access by EZVIZ Cloud P2P;
> Support Hikvision DDNS (Dynamic Domain Name System);
> Network detection function.
| Audio Input: | | | 1-ch |
| Video Compression: | | | H.264 |
| Analog and HD-TVI video input: | | | 16-ch,BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types: | | | 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS |
| IP Video Input: | | | 2-ch 1080P |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch (Audio In) |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Frame Rate: | | | Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate |
| Video Bit Rate: | | | 32 Kbps-6 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Synchronous Playback: | | | 16-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP., HTTPS |
| Hard Disk Driver | ||
| Interface Type: | | | 2 SATA Interfaces |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| Serial Interface: | | | 1; standard RS-485 serial interface, half-duplex |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤ 20W |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Chassis: | | | 380mm 1U chassis |
| Dimensions: | | | 380 × 290 × 48mm (15.0 × 11.4 × 1.9 inch) |
| Weight: | | | ≤ 2Kg (4.4lb) |
DS-7204HGHI-SH
DS-7208HGHI-SH
DS-7216HGHI-SH
