Hikvision DS-2DF8223I-AEL(W) 2.0MP Darkfighter PTZ IP Camera
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hikvision
Model Number:
DS-2DF8223I-AEL(W)
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hikvision DS-2DF8223I-AEL(W) 2.0MP WDR 230X Zoom Auto Tracking PTZ IP CameraNegotiableMOQ: 1 Set -
Hikvision DS-2DF8223I-AELW 2.0MP Darkfighter Wiper Smart Outdoor PTZ IP Camera PoENegotiableMOQ: 1 Set
-
Hikvision DS-2DF8223I-AELW 2.0MP WDR Smart IP Camera PTZ Support Color Recording In EveningNegotiableMOQ: 1 Set
-
Hikvision DS-2DF8223I-AEL 2.0MP 23X Optical Zoom IP PTZ Camera With 200M IRNegotiableMOQ: 1 Set
-
Hikvision DS-2DF8223I-AEL(W) 2.0MP Full HD Auto Tracking 200M IR IP PTZNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Hikvision
Model Number
DS-2DF8223I-AEL(W)
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Special Features
Waterproof / Weatherproof
Hikvision DS-2DF8223I-AEL(W) 2.0MP Darkfighter PTZ IP Camera
Product Description
• 1/1.9” HD CMOS sensor
• 2MP(1920*1080) Full HD
• 23X Optical Zoom
• Ultra-low illumination
• 120db True WDR
• Smart Tracking
• Smart Detection
• EIS (Electronic Image Stabilization)
• Defog
• 200m IR distance
• Optional wiper(-W)
• Hi-PoE / 24VAC power supply
HikvisionDarkfighterseriesDS-2DF8223I-AEL(W) smart PTZ dome cameras are able to capture high quality colored images in dim light environment with its cutting-edge low illumination level down to 0.002Lux (color). Embedded with 1/1.9’’ progressive scan CMOS chip makes true WDR (120dB) and 2MP real-time resolution possible. With the 23X optical zoom Day/Night lens, the camera offers more details over expansive areas.
The Darkfighter PTZ camera also features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve image quality in challenging conditions.
The Darkfighter smart PTZ opens up new opportunities for 24-hour CCTV surveillance, the overall excellence of the camera has been recognized by the IFSEC Security & Fire Excellence Awards as a finalist for “CCTV Camera Equipment of the Year”.
Specification
| Image Sensor: | | | 1/1.9" HD CMOS sensor |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | F1.5, 1/1 sec, 50 IRE, AGC On: Color: 0.002 lux, B/W : 0.0002 lux, 0 lux with IR F1.5, 1/30 sec, 50 IRE, AGC On: Color:0.02 lux, B/W : 0.002 lux, 0 lux with IR |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| S/N Ratio: | | | ≥ 55dB |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | 120dB |
| Shutter Time: | | | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
|---|---|---|
| Focal Length: | | | 5.9-135.7mm, 23x |
| Zoom Speed: | | | Approx.4.4s(Optical Wide-Tele) |
| Angle of View: | | | 59.8-3.0 degree (Wide-Tele) |
| Minimum Working Distance: | | | 10-1500mm(Wide-Tele) |
| Aperture Range: | | | F1.5~F3.4 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1° -160°/s, Pan Preset Speed: 240°/s |
| Tilt Range: | | | -20°~90°(Auto Flip) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Smart-tracking: | | | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios |
| Wiper: | | | Optional |
| Infrared | ||
| IR irradiation distance: | | | 200m |
| IR irradiation angle: | | | Adjustable by zoom |
| Alarm | ||
| Alarm Input: | | | 7 Inputs |
| Alarm Output: | | | 2 |
| Alarm Actions: | | | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client |
| Input & Output | ||
| Monitor Output: | | | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input: | | | 1 channel Mic. Input (applicable microphone, plug-in power type), 2.0~2.4Vp-p, 1k Ohm±10% |
| Audio Output: | | | 1 Audio output interface Line level, impedance: 600Ω |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) |
| Third Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120) |
| Image Compression: | | | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
| ROI encoding: | | | Support 24 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level: | | | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language |
| General | ||
| RS-485 Protocols: | | | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | | | English / Chinese |
| Power Supply: | | | 24 VAC & Hi-PoE |
| Power Consumption: | | | Max.60W |
| Working Temperature/Humidity: | | | -40°C ~ 65°C (-40°F ~ 149°F) |
| Protection Level: | | | IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | | Various mounting modes optional |
| Dimensions: | | | Φ266.6(mm)×365.2(mm) |
| Weight (approx.): | | | 8kg (approx.) |

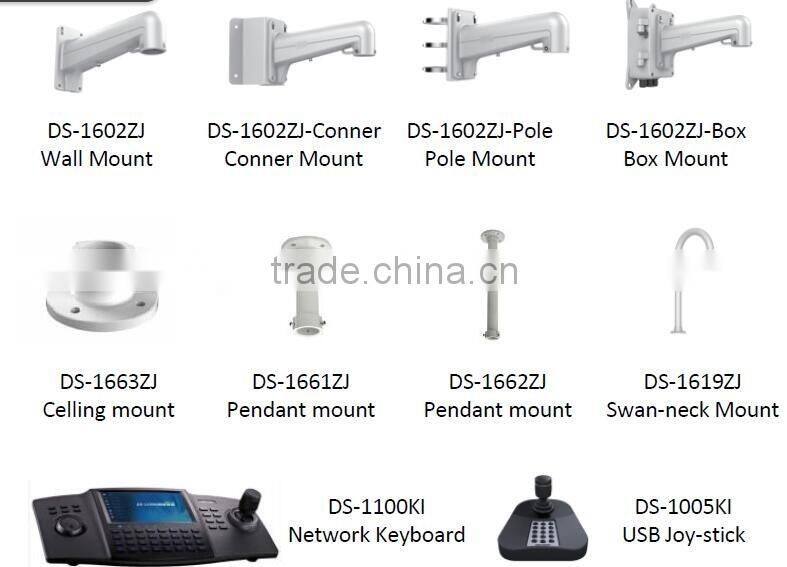

| Mount Option: | | | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
Available Models
DS-2DF8223I-AEL
DS-2DF8223I-AELW
Dimensions
Accessories
Shipment
