Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP

Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP

Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hikvision
Model Number:
DS-7604NI-E1/4P
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Hikvision
Model Number DS-7604NI-E1/4P

Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP



DS-7604NI-E1/4P



Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP



Hikvision 4CH H.264 PoE ONVIF DS-7604NI-E1/4P CCTV NVR With 4TB HDD Hard Disk Recording Up to 6MP





Product Description

DS-7604NI-E1/4P;


DS-7608NI-E2/8P, DS-7616NI-E2/8P, DS-7632NI-E2/8P;


DS-7616NI-E2/16P, DS-7632NI-E2/16P.


DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR (Network Video Recorder) is a new generation recorder developed by Hikvision independently.

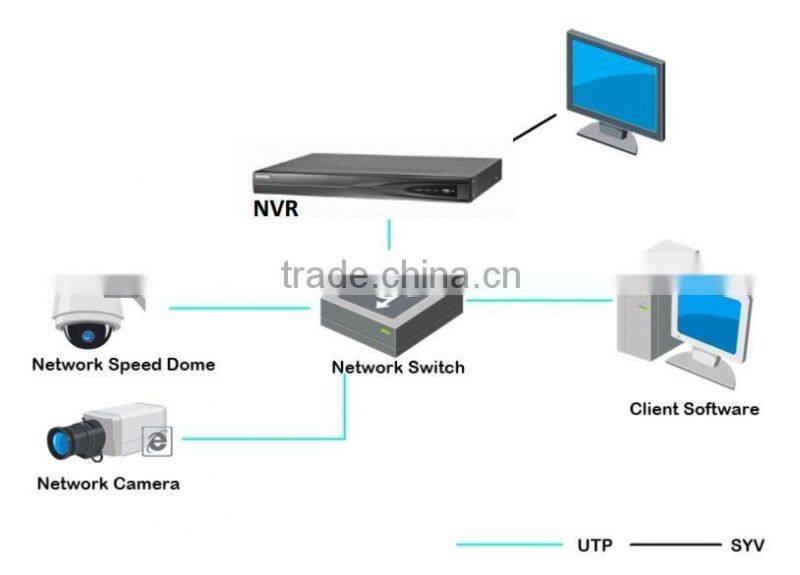

Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other device to form a comprehensive surveillance system.


The DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.

• Third-party network cameras supported


• Up to 6 Megapixels resolution recording


• HDMI and VGA output at up to 1920×1080Presolution


• 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth


• Up to 2 SATA interfaces


• Plug & Play with up to 8 independent PoE network interfaces


• Support network detection, including network delay, packet loss, etc



Specification
IP video input:|4-ch
Two-way audio input:|1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:|40Mbps
Outgoing bandwidth:|80Mbps
Remote connection:|128
Video/Audio Output
HDMI/VGA output:|1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution:|6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:|Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:|1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:|4-ch
Decoding
Live view / Playback:|6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:|4-ch@1080P
Hard Disk
SATA:|1 SATA interface for 1 HDD
Capacity:|Up to 4TB for each disk
External Interface
Network Interface:|1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:|1 × USB 2.0 and 1 × USB 3.0
Alarm In:|4-ch
Alarm Out:|1-ch
POE
Interface:|4 independent 100 Mbps PoE
network interfaces
Max. Power:|50W
Supported Standard:|AF and AT
General
Power Supply:|48V DC
Consumption(without hard disk and POE):|≤ 10W
Working Temperature:|-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:|10 % ~ 90 %
Chassis:|1U chassis
Dimensions:|315 × 230 × 45mm
(12.4 ×9.1 × 1.8 inch)
Weight(without HDD):|≤ 1 Kg (2.2 lb)
