Wholesaler Hikvision 3.0MP 1080P Alarm Night Vision Dome DS-2CD2135F-IS Full HD IP Camera

Name: Wholesaler Hikvision 3.0MP 1080P Alarm Night Vision Dome DS-2CD2135F-IS Full HD IP Camera
Brand: Hikvision
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 6000 Set / Sets per Month
Port EXW Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Hikvision	Model Number:	DS-2CD2135F-IS
Type:	IP Camera	Style:	Dome Camera	Sensor:	CMOS
Technology:	NetWork	Special Features:	Vandal-proof

Product Description

Wholesaler Hikvision 3.0MP 1080P Alarm Night Vision Dome DS-2CD2135F-IS Full HD IP Camera

DS-2CD2135F-IS

Product Description

> 3MP 1/3'' Progressive scan CMOS

> Support dual streams

> Up to 30 meters IR range

> -S: Two-way audio

> -S: Audio/Alarm I/O

> -W: Support Wi-Fi

> IR cut filter with auto switch

> DC12V & PoE

> Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB

> Ingress Protection level: IP66

> IK08(-W model)/IK10(non -W model)

Specification

Compression Standard
Image Sensor:	\|	1/3" Progressive Scan CMOS
Min. Illumination:	\|	0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.19 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time:	\|	1/3 s to 1/100,000 s
Lens:	\|	4mm@ F2.0 (2.8mm, 6mm optional), Angle of view: 98.5°(2.8mm), 79°(4mm) , 49°(6mm)
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	Digital WDR
Digital noise reduction:	\|	3D DNR
Video Compression:	\|	H.265/H.264/MJPEG
H.264 code profile:	\|	Main Profile
Video bit rate:	\|	32Kbps~12Mbps
Audio Compression:	\|	-S: G.711/G.722.1/G.726/MP2L2
Audio bit rate:	\|	64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Dual Stream:	\|	Yes
Max. Image Resolution:	\|	2048×1536
Frame Rate:	\|	50Hz: 20fps(2048 × 1536), 25fps(1920 × 1080), 25fps (1280 × 720) 60Hz: 20fps(2048 × 1536), 30fps(1920 × 1080), 30fps (1280 × 720)
Image Settings:	\|	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	\|	Yes, zone configurable
ROI:	\|	Support
Network
Network Storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)
Alarm Trigger:	\|	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:	\|	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security:	\|	One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility:	\|	ONVIF, PSIA, CGI, ISAPI
Interface
Audio:	\|	1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:	\|	1 RJ45 10M / 100M Ethernet interface
Alarm:	\|	-S: 1 alarm I/O
Wi-Fi Specification (-W)
Wireless Standards:	\|	IEEE802.11b, 802.11g, 802.11n
Frequency Range:	\|	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:	\|	20/40MHz Support
Modulation Mode:	\|	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security:	\|	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power:	\|	11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm
Receive Sensitivity:	\|	11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
Transmission Rate:	\|	11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:	\|	50m(depend on environment)
Protocols:	\|	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	\|	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	\|	Max. 5 W
Impact Protection:	\|	IK08(-W model)/IK10(non -W model)
Weather Proof:	\|	IP66
IR Range:	\|	Up to 30m
Dimensions:	\|	Φ111 × 82 (4.4” × 3.2”)
Weight:	\|	500g (1.1 lbs)
NOTE::	\|	"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol.

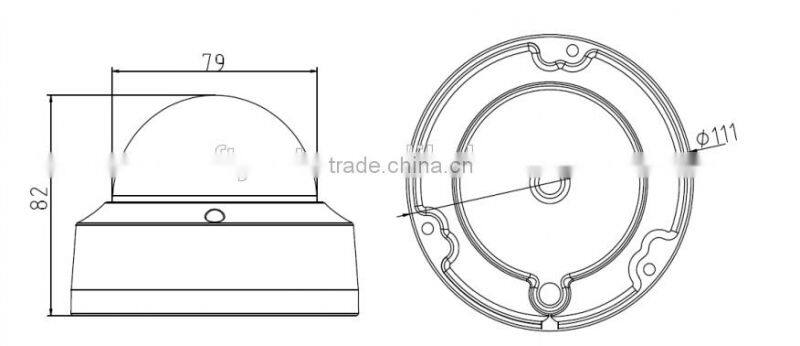

Dimensions

Accessories

FAQ

1) How to confirm whether the product is Hikvision genuine English version?

You can download software in the official website of hikivision,only Hikvision genuine product is compatible with the software.
And we promise all of our products are Hikvision genuine products.

2) When will you ship my order?

Ordinary,once we get confirmation for payment,we will ship order within 1-7 days.

3) Can I installate the IP camera by myself?

Of course,the camera is flexible installate. And there is a user manual within box,you can contact us in need.

4) Do you support drop shipping?

Yes,your drop shipping is available.

5) How about warranty?

Two years warranty.
