DS-2CD6332FWD-IVS 3MP 1080P Full HD 360 Degree Hikvision Fisheye Camera
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-2CD6332FWD-I(V)(S)
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hikvision DS-2CD2335-I H.265 EXIR Dome IP Camera Support PoE For Home Security SystemNegotiableMOQ: 1 Set -
2016 Hikvision DS-2CD2335-I H.265 30M IR Dome Megapixel IP Camera With Night Vision In RussianNegotiableMOQ: 1 Set
-
HIKVISION DS-2CD2335-I H.265 30M IR Dome IP Network Camera On .com In RussianNegotiableMOQ: 1 Set
-
HIKVISION DS-2CD2335-I H.265 30M IR Dome HD IP Camera With Two-Way AlarmNegotiableMOQ: 1 Set
-
HIKVISION DS-2CD2335-I H.265 ONVIF IP Camera Dome Security Camera On .com In RussianNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Hikvision
Model Number
DS-2CD6332FWD-I(V)(S)
Type
IP Camera
Style
Other, Fisheye
Sensor
CMOS
Technology
NetWork
Special Features
Vandal-proof
DS-2CD6332FWD-IVS 3MP 1080P Full HD 360 Degree Hikvision Fisheye Camera
DS-2CD6332FWD-I(V)(S)
Product Description
DS-2CD6332FWD-I(V)(S) is designed to single-handedly capture images from every corner of a particular location and eliminate blind sports. It features a progressive scan CMOS sensor to provide high-resolution images of up to 2048×1536, and a fisheye lens for a 360 panoramic or multiple de-warped views. Furthermore, IR functionality provides up to 15m IR distance of visibility under low or even zero-light conditions.
It is a great choice for detailed coverage of wide, open areas like airports, shopping malls, parking lots, retail stores, offices, restaurants, classrooms, and more.
The 3MP IR Fisheye Network Camera supports several viewing modes, including the 360° view (in 3 megapixel resolution, respectively), a horizontal panoramic view, PTZ quad view modes. Customers can also utilize this smooth PTZ function to easily pan, tilt and zoom, on any region of interest (ROI)
• 1/3" progressive scan CMOS
• support Heat Map
• 3 mega-pixel image sensor
• Up to 1536 x 1536 resolution, 30fps
• 360° panoramic view
• Multiple viewing modes
• Virtual PTZ
• Up to 15m IR range
• Bulit-in microphone and speaker
Specification
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | 0.1 Lux @(F1.2,AGC ON), 0.28Lux @ (F2.0,AGC ON ), 0 lux with IR |
| Shutter time: | | | 1/25(1/30) s to 1/100,000 s |
| Lens: | | | 1.19mm, F2.0 Angle of view: 180°(wall mount), 360°(ceiling mount) |
| Auto Iris: | | | DC drive |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | | | H.264/MJPEG |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 2048×1536 |
| Frame Rate: | | | Mode 1: 50Hz: 1×fisheye (1536×1536 ,20fps), 1×panoramic (1600×1200, 20fps), 3×PTZ (800×600, 20fps) 60Hz: 1×fisheye (1536×1536, 20fps), 1×panoramic (1600×1200, 20fps), 3×PTZ (800×600, 20fps) Mode 2: 50Hz: 1×fisheye (2048×1536/1536×1536, 25fps) or 4×PTZ (800×600, 25fps) 60Hz: 1×fisheye (2048×1536/1536×1536, 30fps) or 4×PTZ (800×600, 30fps) Mode 3: 50Hz: 1×Fisheye(1536×1536, 25fps) + 1×Fisheye(720×720, 25fps) + 3×PTZ(800×600, 12.5fps) 60Hz: 1×Fisheye(1536×1536, 30fps) + 1×Fisheye(720×720, 30fps) + 3×PTZ(800×600, 15fps) Mode 4: 50Hz: 1×Panorama(1600×1200(ceiling, table, wall mount)/1600×600(wall mount)/1280×720(ceiling mount, wall mount), 25fps) + 1×Panorama(704×576, 25fps) 60Hz: 1×Panorama(1600×1200(ceiling, table, wall mount)/1600×600(wall mount)/1280×720(ceiling mount, wall mount), 30fps) + 1×Panorama(704×576, 30fps) |
| Image Settings: | | | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Picture Overlay: | | | 128 × 128, BMP 24bit, zone configurable |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | | | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | Internal Microphone and Speaker |
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 12.18 W |
| Impact Protection: | | | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof: | | | IP66 |
| IR Range: | | | 15 meters |
| Dimensions: | | | 164x152.8x43.8mm(6.46”x6.02”x1.72”) |
| Weight: | | | 1400g |
| NOTE:: | | | * "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface |

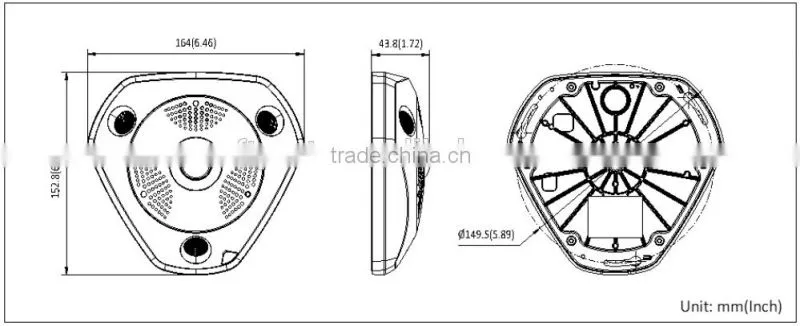

Dimensions

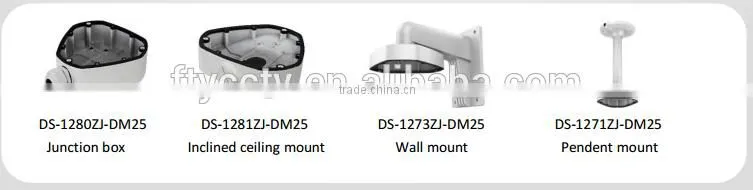

Accessories
Shipment
