Industrial Straw Reed Mat Weaving Machine

Industrial Straw Reed Mat Weaving Machine photo-1
US$ 3,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Use:
Mattress Machine
Place of Origin:
Henan, China
Brand Name:
zhoufeng
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Use Mattress Machine
Place of Origin Henan, China
Brand Name zhoufeng
Model Number ZFBJ-1000
Condition New
After-sales Service Provided Engineers available to service machinery overseas

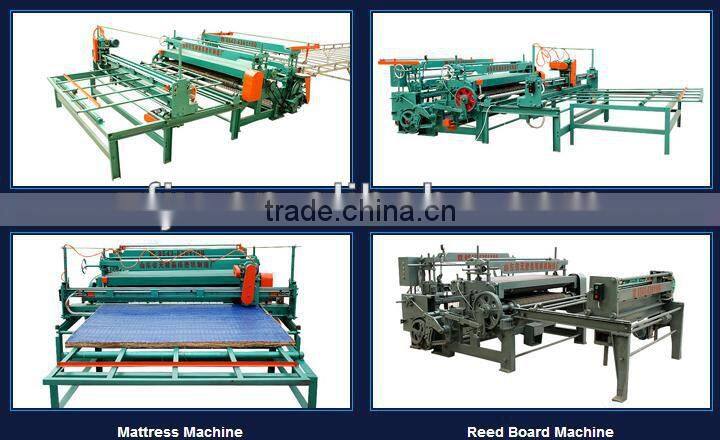

industrial straw reed mat weaving machine

Product introduction

Rush mattress machine is a kind of new machine developed independently by the company. As the first enterprise manufacturing rolling mattress machines and reed board machine in China, the company has realized computer automatic operation. Mattress machine is featured by reasonable structure design, matching power, high production efficiency, low production cost, high degree of automation, complete supporting facilities, simple and easy operation, convenient usage and maintenance, etc.

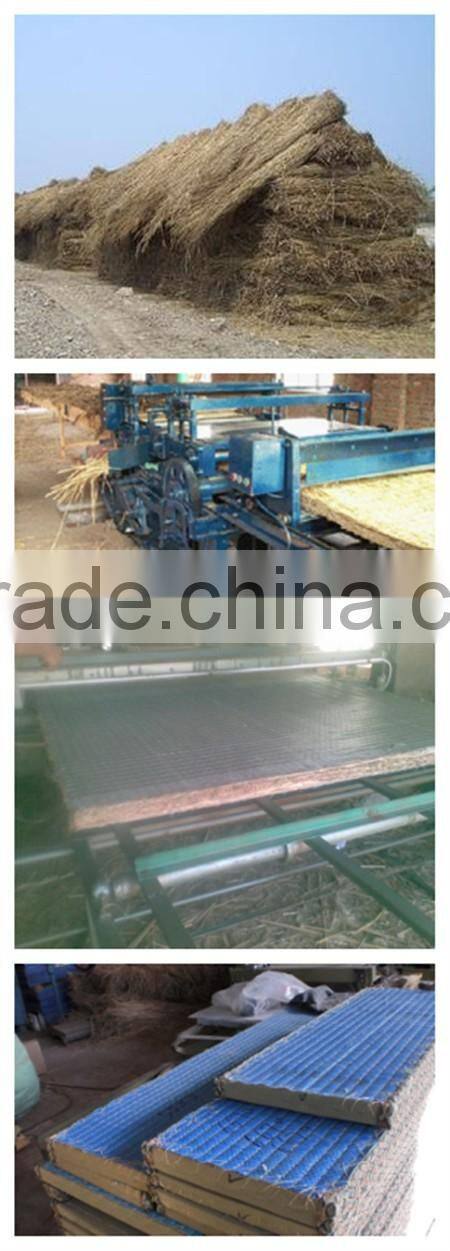

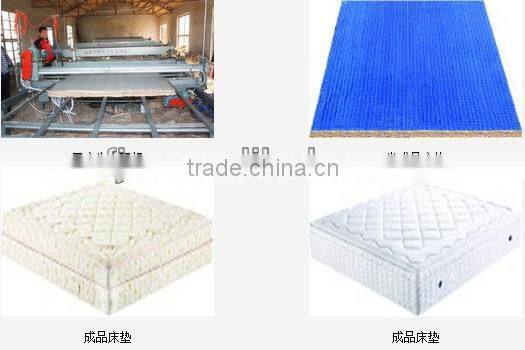

There are abundant raw materials to produce mattress, like reed, rush, wheat straw, rice straw, wula sedge, etc. Mattress made of those materials is flat, smooth, nice, durable, environment-protective, energy-saving, and of health-care effect. The mattress is of width of 1.5m-2m, thickness of 3cm-7cm (adjustable) and optional length. Mattress machine produced by the company is of favorable development prospect, superior raw material, and low failure rate in continuous production operation, which reduces production cost and maintenance cost and improves production efficiency. Besides, with timely after service, high cost performance, the machine is popular among customers. At present, the market share is over 80%, even over 95% in the areas producing mattress machines.

According to market investigation and analysis, different climates and raw materials, the company has developed several series of products, including WBJ-1500 composite type, WBJ-1800 composite type, and WBJ-2000 composite type, which are mainly used to produce tatami mattress. According to different customer demands, there are semi-manual type, semi-automatic type and automatic type available.

The products are sold well in Yining, Urumchi, Daqing, Tsitsihar, Jilin, Liaoning, Inner Mongolia, Jiangsu, Zhejiang, Gansu, Ningxia, Anhui, Henan, Shanxi, Shaanxi, Yunnan, Sichuan, Hubei, Hunan, Guizhou, Guangxi, Hebei, Shandong, and exported to India, Kazakhstan, the Middle East, South Asia, Russia, and Mongolia



Technical parameter

Model

ZFBJ-1000

ZFBJ-1500

ZFBJ-1800

ZFBJ-2000

Machine size

12.5*2*1.36m

12.5*2.5*1.36m

12.5*2.8*1.36m

12.5*3*1.36m

Main motor

2.2kw

2.2kw

3kw

3kw

Cutter motor

1.5kw

1.5kw

2.2kw

2.2kw

Winding motor

0.75kw

0.75kw

0.75kw

0.75kw

Total weight

3200kg

3800kg

4500kg

4800kg

Working area

5.5*15m

6.5*15m

7*15m

7*15m

spacing of horizontal wires

Adjustable within100mm

Adjustable within100mm

Adjustable within100mm

Adjustable within100mm

Warp spacing

30mm

30mm

30mm

30mm



Reed mat size

Width:780-980mm

Thickness:25-80mm

Width:980-1480mm

Thickness::25-80mm

Width:1180-1780mm

Thickness::25-80mm

Width:1300-1998mm

Thickness::25-80mm

industrial straw reed mat weaving machine

 industrial straw reed mat weaving machine

industrial straw reed mat weaving machine
