Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom

Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom thumbnail-1
Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom thumbnail-2
Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom photo-1
Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
DH-SD32203S-HN
Contact Supplier Request Quote Chat Now
Shenzhen FTY Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dahua
Model Number DH-SD32203S-HN
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom



DH-SD32203S-HN



Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom







Product Description

>3.0mm ~ 9.0mm(3x)optical zoom


>H.264 & MJPEG dual-stream encoding


>Max 25/30fps@1080p resolution


>DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC


>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS


>Max 240 °/s pan speed, 0° ~360° endless pan rotation


>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern


>Built-in 2/1 alarm in/out


>Support intelligent 3D positioning with DH-SD protocol


>Micro SD memory, IP66, IK10, PoE



Specification
Model DH-SD32203S-HN
Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 - 1/30,000s
Min. Illumination

Color: 0.05 lux @F1.6, B/W: 0.005 lux @F1.6
S/N Ratio

More than 50dB
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 3.0mm ~ 9.0mm(3x Optical zoom)
Max Aperture F1.6 ~ F2.7
Focus Control Auto / Manual
FOV-H H: 116.5° ~ 34.5°
Close Focus Distance 1000mm~1500mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 240°/s; Tilt: 0.1° ~160°/s
Preset Speed Pan: 240°/s; Tilt: 160°/s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u (32kbps) / PCM (128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Profile S
Max. User Access 20 users

Smart Phone

iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
General
Power Supply DC12V, PoE(802.3af)
Power Consumption 10W
Working Environment -20ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Dimensions Φ160(mm) x 132(mm)
Weight 1.33kg

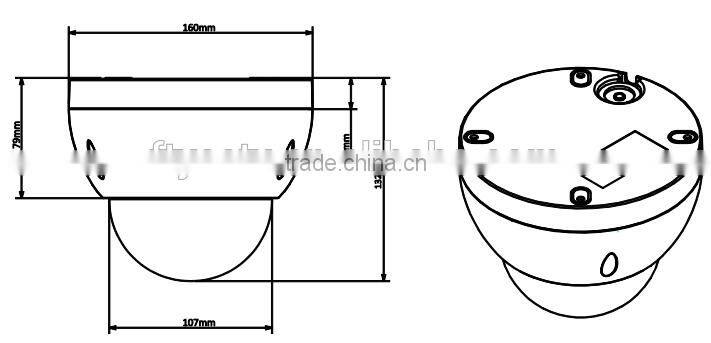

Dimensions

Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom

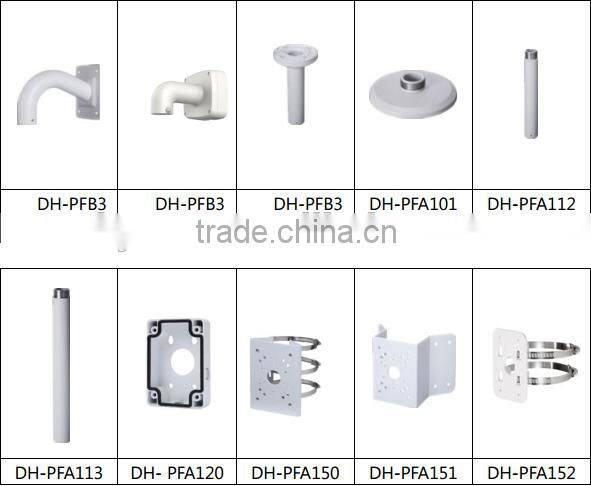

Accessories

Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom


Shipment

Dahua DH-SD32203S-HN 2MP Outdoor Small PTZ IP Camera With 3X Optical Zoom
