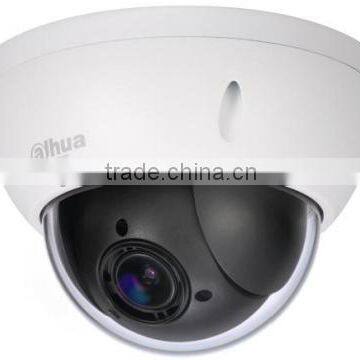

Dahua SD22204T-GN Outdoor 1080P 60FPS Hull HD IP PTZ With DC 12 Vlot

Name: Dahua SD22204T-GN Outdoor 1080P 60FPS Hull HD IP PTZ With DC 12 Vlot
Brand: Dahua
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 8500 Set / Sets per Month
Port EXW Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Dahua	Model Number:	DH-SD22204T-GN
Type:	IP Camera	Style:	Dome Camera	Sensor:	CMOS
Technology:	Pan / Tilt / Zoom	Special Features:	Waterproof / Weatherproof

Product Description

Dahua SD22204T-GN Outdoor 1080P 60FPS Hull HD IP PTZ With DC 12 Vlot

DH-SD22204T-GN

Product Description

>4x optical zoom

>H.264 & MJPEG Triple-streams encoding

>Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution

>WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

>Max 100°/s pan speed

>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern

>Support intelligent 3D positioning with DH-SD protocol

>Micro SD memory, POE

Specification

Model		DH-SD22204T-GN
Camera
Image Sensor		1/2.7” CMOS
Effective Pixels		1920(H) x 1080(V), 2Megapixels
Scanning System		Progressive
Electronic Shutter Speed		1/1 ~ 1/30,000s
Min. Illumination		Color: 0.05Lux @F1.6; B/W: 0.005Lux @F1.6
S/N Ratio		More than 55dB
Camera Features
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC / HLC / WDR
White Balance		Auto, ATW, Indoor, Outdoor, Manual
Gain Control		Auto / Manual
Noise Reduction		Ultra DNR (2D/3D)
Privacy Masking		Up to 24 areas
Digital Zoom		16x
Lens
Focal Length		2.7mm~11mm(4x Optical zoom)
Max Aperture		N/A
Focus Control		Auto / Manual
FOV-H		H: 112.5° ~ 30°
PTZ
Pan/Tilt Range		Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed		Pan: 100° /s; Tilt: 60° /s
Preset		300
PTZ Mode		5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup		Human-oriented focal length/ speed adaptation
Power up Action		Auto restore to previous PTZ and lens status after power failure
Idle Motion		Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Video
Compression		H.264 / MJPEG
Resolution		1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240)
Frame Rate	Main Stream	1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
	Sub Stream 1	D1/CIF(1 ~ 25/30fps)
	Sub Stream 2	720P/ D1/ CIF (1 ~ 25/30fps)
Bit Rate		H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Intelligent Function
IVS (optional)		Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,
Face Detection		Support
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 128GB
General
Power Supply		DC12V, POE
Power Consumption		10W
Working Environment		-30ºC ~ 60ºC / Less than 90% RH
Ingress Protection		IP66 & IK10
Dimensions		Φ122 (mm) x 89 (mm)
Weight		0.6kg
