Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > DH-IPC-HDBW4421E 4.0MP Vandal-proof Very Small Dome Dahua Camera With 2.8mm Lens

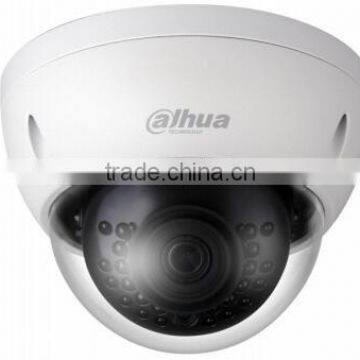

DH-IPC-HDBW4421E 4.0MP Vandal-proof Very Small Dome Dahua Camera With 2.8mm Lens
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
DH-IPC-HDBW4421E(-AS)
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IPC-HDBW4421E 4MP IP67 Dome True WDR Dahua CCTV With 30M IR DistanceNegotiableMOQ: 1 Set -
Zhejiang Dahua Technology Co Ltd DH-IPC-HDBW4421E(-AS) Vandal-proof Mini Dome IP66 1080P IP Camera DahuaNegotiableMOQ: 1 Set
-
Home Security System IPC-HDBW4421E-AS 4MP Outdoor Night Vision Dome Dahua Distributor CameraNegotiableMOQ: 1 Set
-
Cheap 4.0MP Outdoor Vandal-Proof DH-IPC-HDBW4421E IP Camera DahuaNegotiableMOQ: 1 Set
-
Wholesale Low Price DH-IPC-HDBW4421E 4MP IR Night Vision Dome IP Network Camera DahuaNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Dahua
Model Number
DH-IPC-HDBW4421E(-AS)
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
NetWork
Special Features
Vandal-proof
DH-IPC-HDBW4421E 4.0MP Vandal-proof Very Small Dome Dahua Camera With 2.8mm Lens
DH-IPC-HDBW4421E(-AS)
Product Description
>1/3” 4Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>Max 20fps@4M(2688×1520), 25/30fps@3M(2304×1296)
>Smart Detection supported
>WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm, 6mm optional)
>1/1 Alarm in/out, 1/1 audio in/out(only for -AS)
>Max. IR LEDs Length 30m
>Micro SD memory (only for -AS) IP67, IK10, PoE
Specification
Model |
IPC-HDBW4421E(-AS) |
|
| Camera | ||
| Image Sensor | 1/3”4Megapixel progressive scan CMOS | |
| Effective Pixels | 2688(H)x1520(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | |
| Min. Illumination | 0.01Lux/F2.0 Color), 0Lux/F2.0(IR on) |
|
| S/N Ratio | More than 50dB |
|
| Video Output | N/A |
|
| Camera Features | ||
| Max. IR LEDs Length | 30m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / WDR(120dB) | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm, 6mm optional) | |
| Max Aperture | F2.0(F2.0/F2.0) | |
| Focus Control | Manual | |
| Angle of View | H: 84°/106°/56° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/H.264B/H.264H/ MJPEG | |
| Resolution | 4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 4M(1~20fps)/3M(1~25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Third Stream | 720P(1-20fps) | |
| Bit Rate | H.264: 32Kbps ~ 10Mbps | |
| Corridor Mode | Support | |
| Audio | ||
| Compression | G.711a/ G.711u/ AAC(only for -AS) | |
| Interface | 1/1 channel In/Out(only for -AS) | |
| Smart Function(Optional) | ||
| Smart detection | Tripwire | |
| Intrusion | ||
| Abandoned/Missing | ||
| Scene Change | ||
| Audio detect | ||
| Face detect | ||
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
| Auxiliary Interface | ||
| Memory Slot | Micro SD Max 128GB(only for -AS) | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out(only for -AS) | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | Max 4W | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ110mm×81mm | |
| Weight | 0.33kg(0.47kg with package) | |
