Laser cutting machine RD 6442G control board system
Application:
Laser cutting (double plus scrap automatic typesetting features, support progressive feeding)
Laser Engraving
Laser Welding
Specifications
1. 3.5-inch color screen
2. 4 axis card
3. Support for feeding, lifting, rotating sculpture, about the push plate and other function

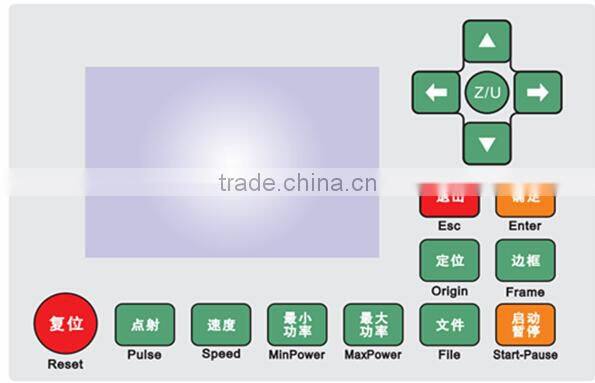

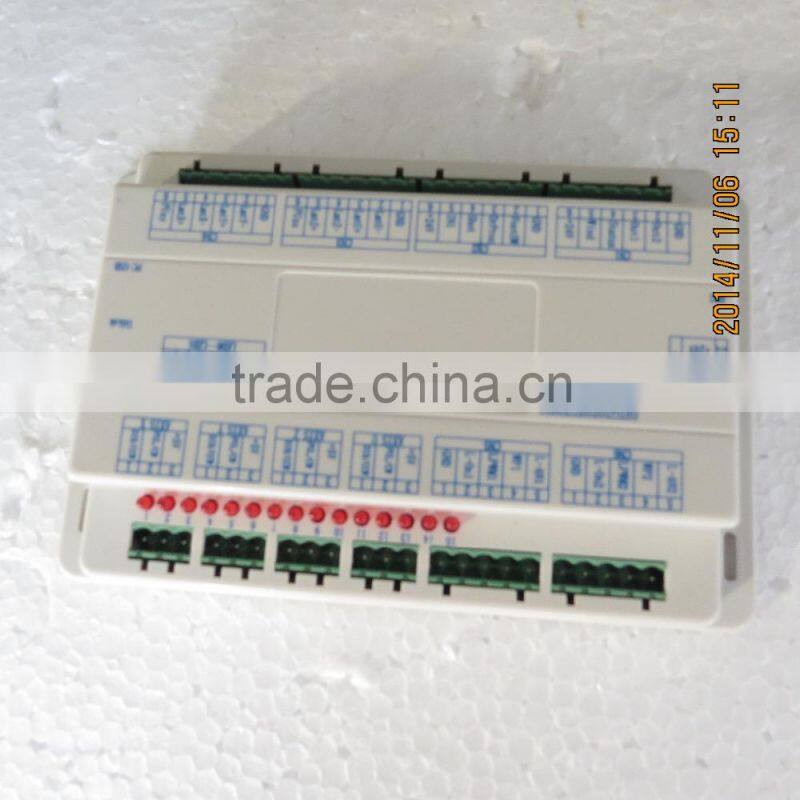

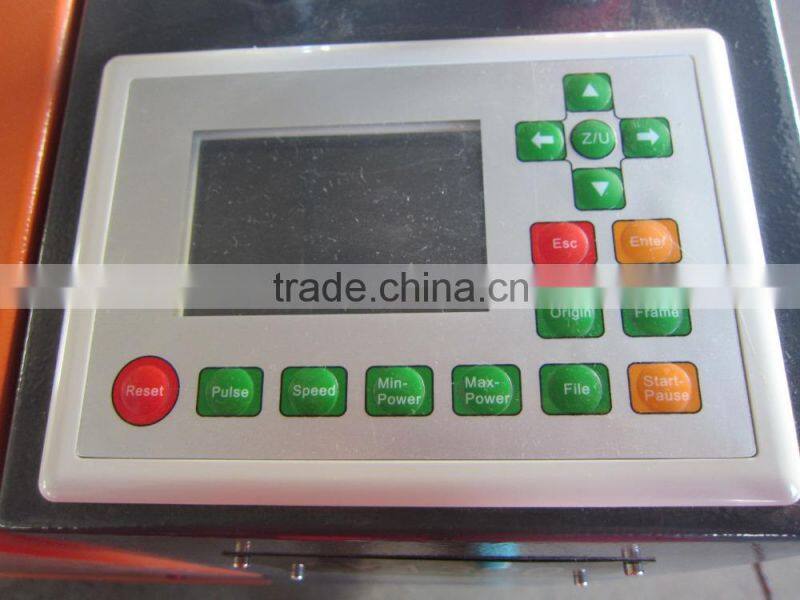

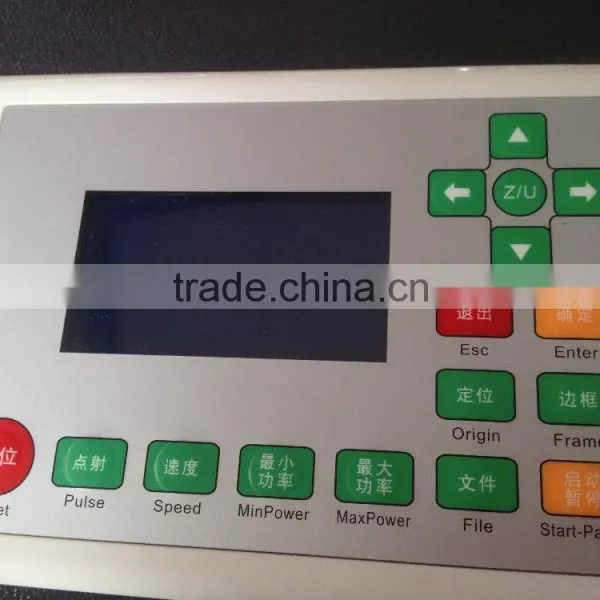

Picture of the RD system:
Advances of RD system:
|
1. Do not need a dongle, to avoid to buy a new dongle if lose it 2. The colorful panel can display graphics being processed |
Brief introduction:
RDC644XG Core Technology Development System is the latest generation of laser engraving / cutting control system , the control system has better hardware stability, better resistance to high pressure, static interference characteristics. 3.5-inch color screen based HMI operating system has a more friendly user interface and more powerful . The controller includes better and more superior motion control functions , large file storage , compatibility stronger dual independently adjustable laser power control interface , compatibility stronger U disk driver , multiple generic / private IO control , communication with PC supports Ethernet communications and automatic optional USB communication and so on. |
Technical parameter:
(1) TTL level output , 50mA drive capability
(2) PWM Adjustable Frequency 2K ~ 50K
(3) PWM duty cycle of 1% to 99 % adjustable
OC motor control signal output , 300mA drive capability
Maximum motor control pulse frequency 500KHZ
The maximum transfer rate of USB 12M, the longest distance 5 m
Line / circle / B -saline interpolation accuracy + / -0.5 pulse
4 -way universal optical isolation OC gate output, maximum 500mA drive capability (with freewheeling protection )
4 Universal opt-isolated inputs , compatible logic levels 5V/12V/24V
