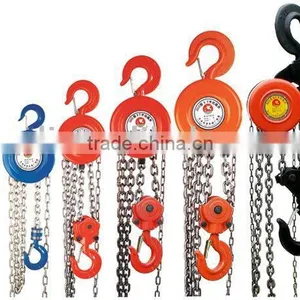

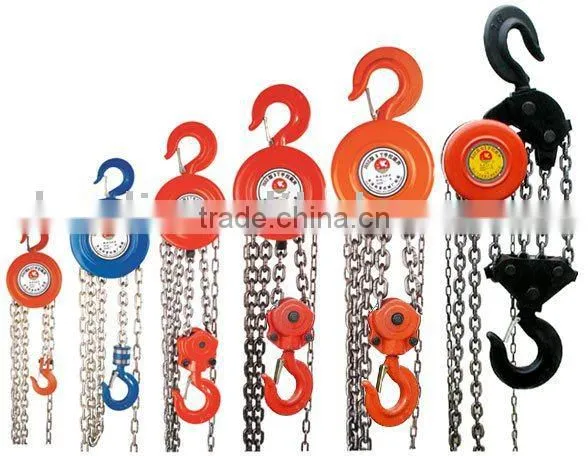

HS-C Chain Block

Name: HS-C Chain Block
Brand: CHENLI
SKU: 128041911

US$ 10 - 200 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

CHENLI

Model Number:

HS-C

Hebei Chenli Rigging Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name CHENLI

Model Number HS-C

Specifications

certificate ISO9001,GS,CE,TUV
we can make HS-C,HS-Z,HS-VT
capacity 0.5T-30T
high factor of safety

HS-C CHAIN BLOCK,HS-Z CHAIN BLOCK,CHAIN BLOCK,CHAIN HOIST

certificate ISO9001,GS,CE,TUV
we can make HS-C,HS-Z,HS-VT

capacity 0.5T-30T
high factor of safety

Chain block Features:

1) Capacity from 0.5T to 30T

2) Have certificate of CE

3) Got certificate of ISO9001

4) Automatic double-pawl braking system

5) Asbestor-free brake discs

6) Drop forged hooks and hook holders to ensure superior quallity and safety

7) Chains are made of special alloy steel that is exclusively

8) More thickness of sheet cover,gear cover and side plates for good quality

9) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one

10) Famous in Europe and America

Model	HSZ-0.5A	HSZ-1A	HSZ-1.5A	HSZ-2A	HSZ-3A	HSZ-5A	HSZ-10A	HSZ-20A
Capacity load T	0.5	1	1.5	2	3	5	10	20
Standard lift M	2.5	2.5	2.5	3	3	3	3	3
Test load T	0.75	1.5	2.25	3	4.5	6.25	12.5	25
Effort to rated capacity N	200	304	343	314	343	383	392	395
No.of load chain	1	1	1	1	2	2	4	8
Diameter of load chain MM	6	6	8	8	8	10	10	10
Min..distance between hooks MM	255	305	365	395	445	615	700	1000
Net weight KGS	8.4	11	16.2	18.5	25.6	42.8	79.5	156
Extra weight per mettre of extralift KGS	1.7	1.7	2.3	5.3	3.7	7.95	9.7	18.8
