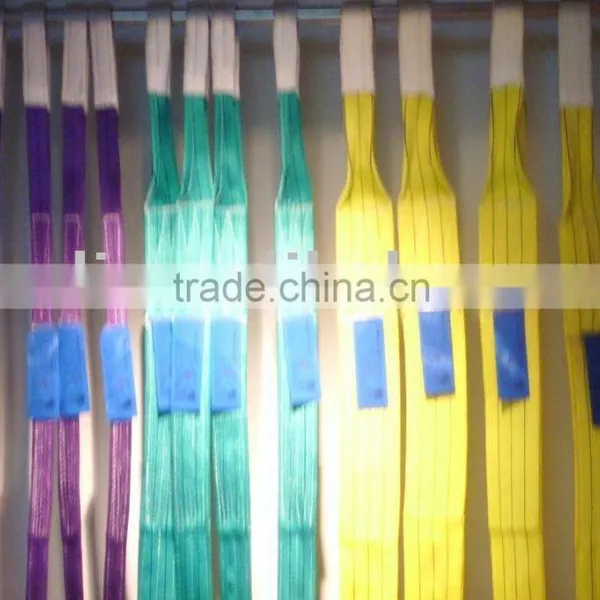

Help CenterLifting Sling
US$ 0.5 - 60
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
chenli or OEM
Model Number:
EB
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
chenli or OEM
Model Number
EB
Type
Webbing Sling
Shape
Flat
Material
Polyester
Lifting Capacity
1 Ton
Sling Color
Purple
Lifting Eye Type
Flat Eye
Specifications
lifting slingsafety factor: 5:1,6:1,7:1
certificates:CE,GS, ISO9001
lifting sling:
1) Material: polyester, nylon, polypropylene
2) Color: as code for example 1ton violet, 2ton green,3ton yellow...10ton orange
3) Length: as required
4) Safety factor: 5:1, 6:1, 7:1 or 8:1
5) Standard: ISO4878, EN1492:2000, AS-Standard
6 )lifting capacity: from 500kgs up to 1,000,000kgs
2) Color: as code for example 1ton violet, 2ton green,3ton yellow...10ton orange
3) Length: as required
4) Safety factor: 5:1, 6:1, 7:1 or 8:1
5) Standard: ISO4878, EN1492:2000, AS-Standard
6 )lifting capacity: from 500kgs up to 1,000,000kgs
7)Indication of working load limits (WLL) By color, number of stripes and printing on sling and label
8)Certification:CE, GS,TUV,NGV,ISO9001
| Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | |||||||
| Code | Color | Minimum Breaking Load (Kg) | Rated Working Load (Kg) | UprightP=1 (Kg) | ChokedP=0.8 (Kg) | Angle 45 P=1.8 (Kg) | Angle 90 P=1.4 (Kg) |
| EB-01 | purple | 6000 | 1000 | 1000 | 800 | 1800 | 1400 |
| EB-02 | green | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 |
| EB-03 | yellow | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 |
| EB-04 | grey | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 |
| EB-05 | red | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 |
| EB-06 | brown | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 |
| EB-08 | blue | 48000 | 8000 | 8000 | 6400 | 14400 | 1120 |
| EB-10 | orange | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 |
| EB-12 | orange | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 |
| EB-20 | orange | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 |
| EB-30 | orange | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 |
