Specifications
CNC flame plasma cutter cut 1001. 1300*2500mm work area
2. 60A /100A power
3. 1 year warranty
CNC flame plasma cutter cut 100
Application----Cutting metal plate
For low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, and other metal sheet.
Technical Specification
Model | SK-1325 | SK-1530 |
Working area(X, Y,Z mm) | 1300*2500*100 | 1500*3000*100 |
Machine structure | Channel steel tube bed, serrated table | |
Overall dimension(mm) | 3150*2200*1200 | 3600*2200*1200 |
Precision(mm) | 0.07 | |
Positioning accuracy(mm) | 0.02 | |
Repeatability accuracy(mm) | 0.02 | |
Idling speed(mm/min) | 15,000 | |
Working speed (mm/min) | 10,000 | |
Power Source | (HUAYUAN)60A | |
Max cutting thickness | 5mm | |
Drive System | Stepper motors | |
Working Voltage | AC380V±30V, 50HZ | |
Control System | DSP for plasma | |
Compatible software | Compatible with any software generating G code file in Windows 98/XP/7 | |
Product Features
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2. Incline design under table surface makes finished parts and scrap slide down to both side along, convenient and safe for operator.
3. DSP hand-held control system dedicated for plasma machine, supports file reading from U disk or downloading from computer, providing high independence and great convenience during operation.
4. Racks and gears a transmission raise moving speed so that large area cutting can be done in short time.
5. High sensitivity THC (Torch Height Controller) is optional for auto adjustment to cutting distance and cutting precision.
Main Parts
Sample display

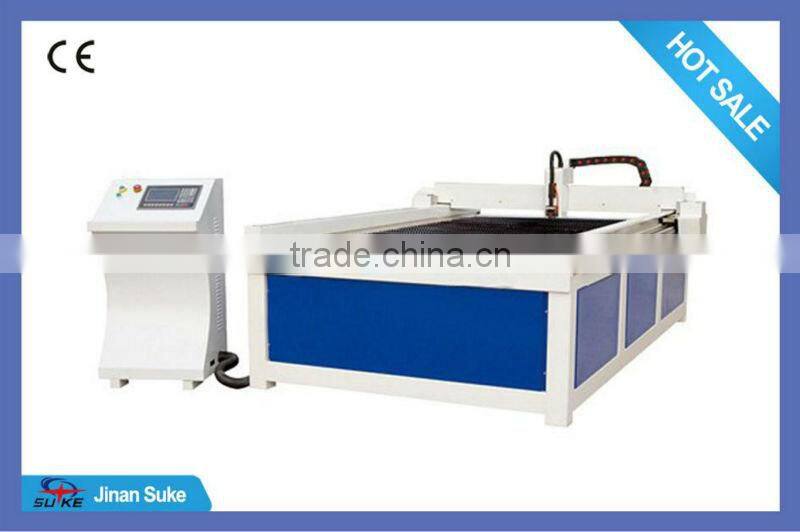

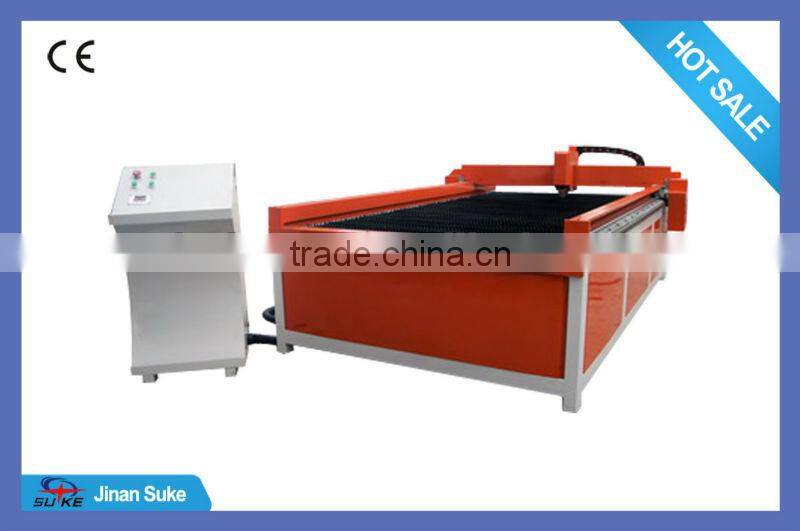

Machine Photo
If any interesting, please be free to contact us!
My skype: sukelaser5
