Help CenterWebbing Sling Pure100% PE
Related Products
Specifications
Material: 100% high pure polyesterSafety Factor: 6:1,7:1,8:1
Working Load Limit: 1-30T
Certificate: GS,CE, ISO9000

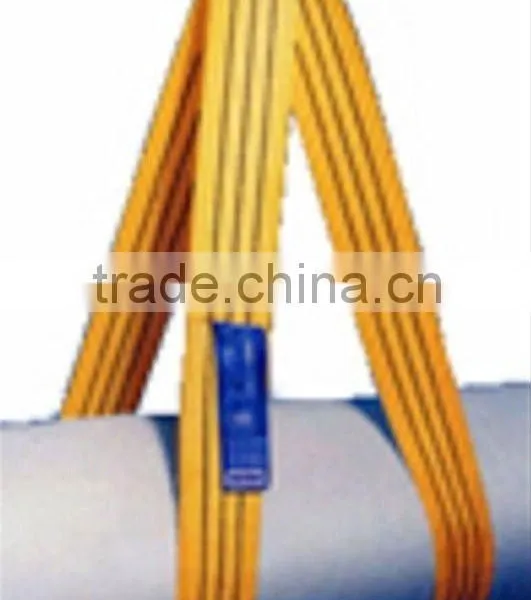

Webbing sling is a sling, consisting of high tenacity continuous multi- polyester woven
webbing with woven edges,sometimes attaching end-fittings for fastening.It goes in a
variety of different types,in order to serve a particular application.
Material: 100% high tenacity polyester
Safety Factor: 6:1,7:1,8:1
Working Load Limit: 1-12T
Certificate: GS,CE, ISO9000
Standard: EN1492-1
Specification: width 30-300mm,
thickness 3.5-40mm,
No. of Ply: single,duplex, three-ply, four-ply
Product Name:
| Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | |||||||
| Code | Color | Minimum Breaking Load (Kg) | Rated Working Load (Kg) |
UprightP=1 (Kg) |
ChokedP=0.8 (Kg) |
Angle 45 P=1.8 (Kg) |
Angle 90 P=1.4 (Kg) |
| EB-01 | 6000 | 1000 | 1000 | 800 | 1800 | 1400 | |
| EB-02 | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 | |
| EB-03 | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 | |
| EB-04 | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 | |
| EB-05 | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 | |
| EB-06 | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 | |
| EB-08 | 48000 | 8000 | 8000 | 6400 | 14400 | 1120 | |
| EB-10 | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 | |
| EB-12 | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 | |
| EB-20 | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 | |
| EB-30 | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 | |
Specification Information:
Usage of Webbing sling:
When selecting a sling to carry a given load, it is important to consider the angle at which the
sling is to be used.As an example, one sling in a basket hitch or two slings attached to one
crane hook are different applications involving different sling angles.The degree of the angle
will determine how much the capacity will be reduced.Take the angle between the sling leg
and the horizontal, then multiply the sling's rating by the factor provided in the accompanying
table.
The capacity of a sling will be reduced as the angle from the horizontal is reduced.In the
example below,you will see how the 1,000 pound capacity of a sling used in a vertical
basket hitch is reduced:
Types of Webbing Sling Eyes
The types of eyes are in accordance with their applications in the fixed working environment,
and many times it can attach end-fittings in order to expand its usages. Users can choose
the most suitable type to proceed with the work smoothly and improve the productivity.
More information pls contact me ,waiting for your news
