laser marking machine for jewellery

Specifications

laser marking machine for jewellery
1. Fiber laser
2. Air cooling
3. Without any consumptive part

laser marking machine for jewellery



Mini. type:

Desktop type:





Protable type:



Features:



1. Very small, friendly interface, the information display will be the subject of marking information.



2. Imported high-quality, high-energy, stable fiber laser machine, speedy precision optical galvanometer and industry-leading software system.



3. Compact structure, hard, light, small, simple interface, flexible and adjustable process direction, control freely.



4.Can print number, letter, Chinese characters, signs, graphs, images, bar codes, two-dimensional codes, serial numbers random number, batch number, add code, production date, valid date, any self-creative character.



5. Adopts intelligent laser dot matrix coding technology, through software adjustment: parameters of Lattice space distance, size of laser power and laser dwell time, improve the coding flexibility. Well adapt to online packing code marking need in all kinds of industry.



6. Easy to maintenance.



7. Whole machine adopts modular design, no consumption parts, improve self-diagnostic system, save time, effort, and worry in maintenance.





Application:

1; can be engraving metal and a variety of non-metallic materials. Some of the requirements are more suitable for fine, high precision processing.

2; used in electronic components, integrated circuits (IC), electrical appliances, communications, hardware, tools, accessories, precision instruments, eyeglasses and clocks, jewelry, auto parts, plastic buttons, construction material, PVC pipe, medical equipment, etc. .

3; application materials include: ordinary metals and alloys (iron,steel, copper, aluminum, magnesium, zinc and all other metals), rare metals and alloys (gold, silver, titanium), metal oxide (metal oxide may be), special surface treatment (phosphate, aluminum anodizing, plating surface), ABS material (electrical appliances, housing, commodities), ink (translucent button, print products), epoxy resin (electronic components, packaging, insulation layer.





Configuration:



Name	Remarks
Optical laser	Long service life, high reliability, fine beam quality
Galvo mirror(Laser head)	Fine marking, more quick and high reliability
F-θ lens	High quality optical device(you can choose 110*110mm 200*200mm 300*300mm)
Marking software	Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible format
Control computer	Industrial Computer
Control cabinet	Optical fiber special cabinet, all the mold production, high seal



Technical parameter:



Type specification	SK-FP10	SK-FP20	SK-FP30	SK-FP50
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	10W	20W	30W	50W
Marking scope	70*70 /100*100 /200*200mm/300*300mm
Laser sources	Fiber module
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Gross weight	65KG	65KG	65KG	65KS
Volume	1m3	1m3	1m3	1m3
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export
The whole machine include	LCD display, controller box ,laser systems,
Configuration	Coaxial red light position system Up & down worktable
Accessory box	Microsoft dog, quality certificate etc





Our sales in Show:





Contaction informaton:







We are sincerely looking for distributors and agents all over the world.

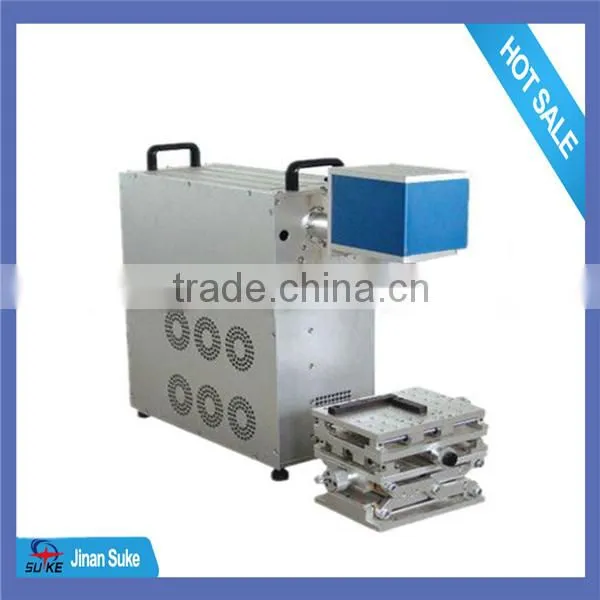

  portable fiber laser marking machine
