Specifications
image number laser marking machine1.Red light preview
2.High speed and low cost
3.fiber laser tube
4.CE FDA
image number laser marking machine
Feature:
1. Fiber laser(German IPG brand or China fiber laser optional)
2. High speed galvo scanner(import or china brand optional)
3. No maintenance laser source: servicetime 100,000 hours.
4. Higher precision,faster speed
5. Small size,low power consumption
6. Red light preview:show the marking position before lasering
7. Notebook with Powerful software
8. User friendly interface, easy operation
Application:
Automobile Parts: Pistons, Piston Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Electronic Components: Resistance, Capacitance, Chips, Printed Circuit Boards, Computer Keyboard, etc.,
Mechanical Parts : Bearings, Gears, Standard Parts, Motors, etc.,
Instrument : Panel Signs, Nameplates, Precision Equipment, etc.,
Hardware Tools: Knives, Tools, Measuring Tool, Cutting Tool, etc.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

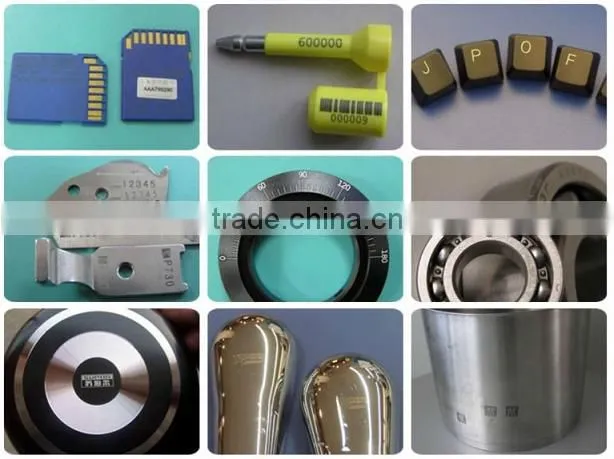

Sample display:

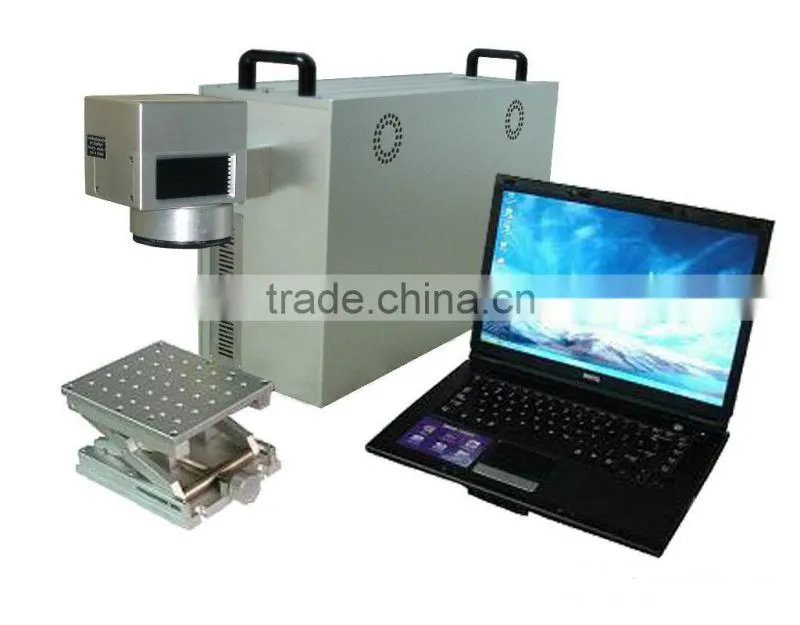

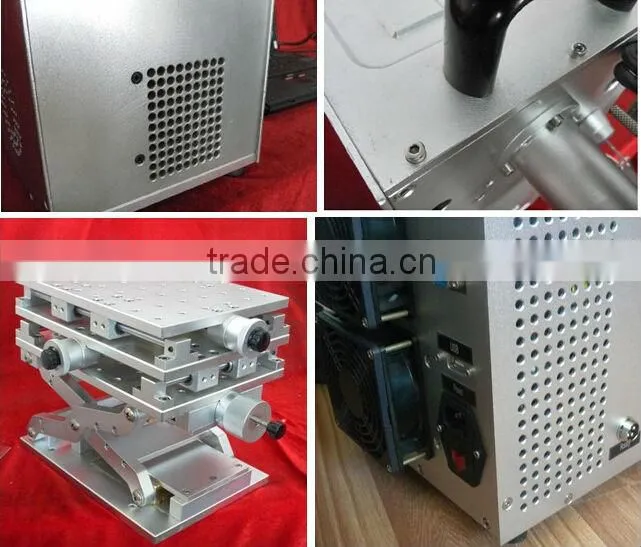

Machine photo:
Technical Specificaton:
Model |
SK-GX10 |
SK-GX20 |
SK-GX30 |
SK-GX50 |
Wave length of laser |
1064nm |
|||
Laser repetition frequency |
20kHz-100kHz |
|||
Laser power |
10w |
20w |
30w |
50w |
Marking scope |
100*100 /200*200mm/300*300mm |
|||
Laser source |
Fiber module |
|||
Laser Head |
Scanning head |
|||
Mini focus facula diameter |
20μm |
|||
Minimal character |
0.01mm |
|||
Cooling ways |
Force-air Cooling |
|||
Power supply |
220V/ 50Hz/2kVA |
|||
Gross weight |
65KG |
|||
Volume |
1CBM |
|||
Process Material |
All kinds of metal and part of Non-metal Materials |
|||
Support format |
PLT |
|||
Configuration |
Coaxial red light position system Up & down worktable |
|||
Package |
Standard Crate for export |
|||
The whole machine include |
LCD display, controller box ,laser systems |
|||
Accessory box |
Microsoft dog, quality certificate etc |
|||
After sale service:
1.service is available to each customer. And if any technical questions or problems, our engineers will help you
and give you solutions on the phone or by face-to-face communication online.
2.One-year warranty is provided. (The detailed reference will be written into the final contract.)
3.Professional staff for installation and training if needed.
4.Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5.Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
If you have any interest please feel free to send inqury,I'll reply as soon as possible!
