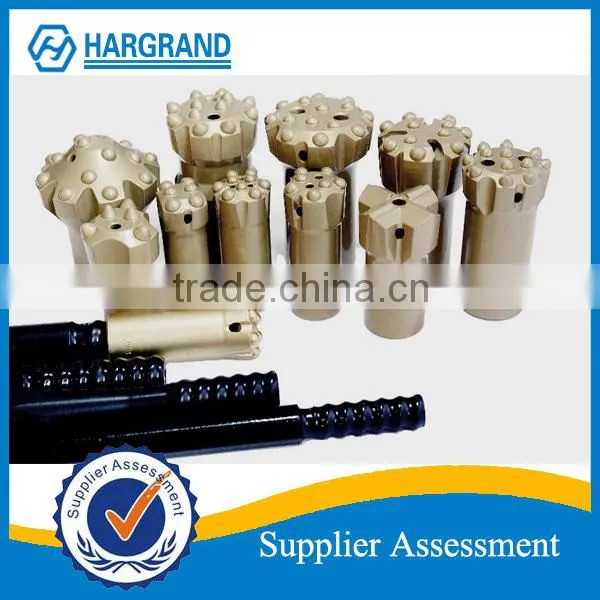

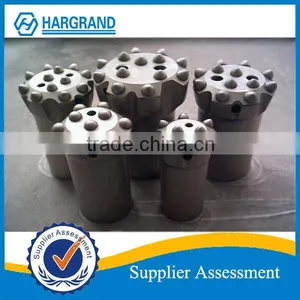

Help CenterDTH Hammers Button Bit,button Drill Bit
Related Products
-
DTH Drill Rods,dth Drill PipeUS$ 100 - 2,000MOQ: 100 Pieces -
DTH Hammer Drill and Button BitUS$ 100 - 1,000MOQ: 1 Set
-
DTH Hammer Bits HARGRAND Hot Sale! Down The HoleUS$ 100 - 1,000MOQ: 1 Set
-
DTH Bit for 3.5 Inch HammerUS$ 100 - 1,000MOQ: 1 Set
-
DTH Bit for 3.5 Inch,jack Hammer BitsUS$ 100 - 1,000MOQ: 1 Piece
Product Name:HH Series DTH Hammer
Products Features:
HHSeries DTH hammers are widely used in ground project for diving all kinds of mid-hardness,high-hardness and somehow worse drillability rocks,characteristics are as follows:
1HH low pressure DTH hammers belong to air exhaust centre- valve hammers,which have a good effect in exhaust rock power,reduce re-breaks of rocks’power,and lessen the damage of drill to advance drilling efficiency.
2Under the most-advanced drilling theory using in inside measurement design,hammers have more expected energy transmission,and let hammers have more power every single time,more speeder in drilling,less wind exhaust.
3Choosing the most high-quality raw material and most advanced technique,hammers have a more stable ability and longer servicing life.
4,More easilier in disassembly and assembly,lower trouble,more convinient in repairment.
Products Scope:
boosting holes in mine,roads projects,drilling holes in protacting landslides and dams and so on.
|
Technical parameters |
Drilling diameter (mm) | Hammer length(mm) | External diameter(mm) | Weigth(Kg) | Working pressure(Mpa) | Air consumption(m3/min) | Torque(N·M) | Impact frequency(Beats / min) | Connection thread | Connection thread | Bit shank |
| Φ170~250 | 1023 | Φ156 | 90 | 0.5~0.7 | 19.5 | 420 | ≥790 | Outside the specialM100×28×10 | Φ98-6 |
HH series 170-175 /185/195/200 /210/220/230 /240/250 |
