Home > Tools & Hardware > Drilling Tools > Drill Bit > NQ Impregnated Diamond Core Drilling Bit

NQ Impregnated Diamond Core Drilling Bit

NQ Impregnated Diamond Core Drilling Bit thumbnail-1
NQ Impregnated Diamond Core Drilling Bit photo-1
US$ 50 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HARGRAND
Model Number:
NQ
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HARGRAND
Model Number NQ
Type Core Drill Bit
Material Diamond
Use Other, Well Drilling, Geological wireline drilling

Leading supplier of Impregnated Diamond core bits:

1. Customised Service.

2. High quality.

3. Fast delivery.

4. Competitive price.

5. 20years experiences

Impregnated Diamond core bits Description:

The impregnated diamond drill bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The high grades of synthetic diamond are distributed in the bit's matrix.

 Impregnated Diamond core bits size available:



"Q" series: AQ, BQ, NQ, HQ, PQ, SQ,BQ3, NQ3, HQ3, PQ3,

“TW” series: BTW, NTW,

“TT” series: NQTT, HQTT,PQTT



Size Outside Diameter Inside Diameter
inch mm inch mm
AQ 1.880/1.870 47.75/47.50 1.607/1.057 27.1/26.85
BQ 2.350/2.340 59.69/59.44 1.438/1.428 36.52/36.27
HQ 2.970/2.960 75.44/75.19 1.880/1.870 47.75/47.50
NQ 3.770/3.755 95.76/95.38 2.505/2.495 63.63/63.38
PQ 4.815/4.795 122.30/121.80 3.350/3.340 85.09/84.84



Impregnated Diamond core bits performance:



The diamond core bits cutting ability has been developed to allow high penetration rate base on different formation. The combination of crown shape,hardness and water way have increase drilling performance on broad range of formations.

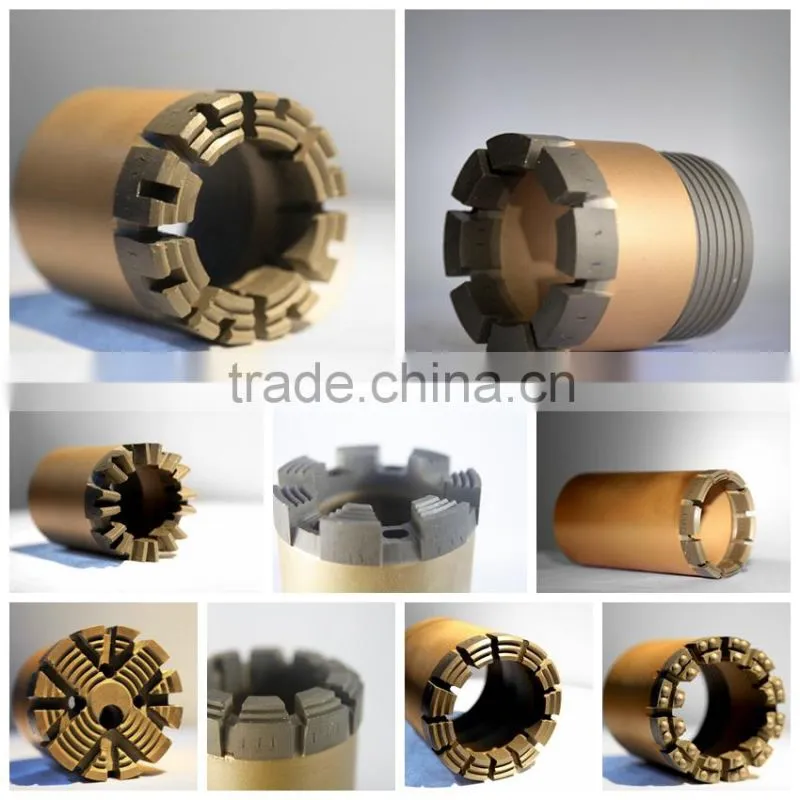

HARGRAND crown shape and water way design:

HARGRANDdrilling Products:

nDiamond drill bits,PDC bits,T.C bits,TSP bits,carbide bits,direction bits



nReaming shells and casing/rod shoes



nWireline drill rods,conventional drill rods



n Wireline Core barrels & overshot assemblies,single tube and double tube core barrels



nHoist plug and water swivels,circle wrench,clamp,etc



nRecovery tapes and recovery rods



Other Bit Size Available:



C Series(same as Q Series): AC,BC,NC,HC,PC/ACTK,BCTK,BC3,NC2,NC3,NCTT,HC3,HCTT,PC3,PCTT



T2 Series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101



T6 Series: T6 76,T6 86,T6 101,T6 116,T6 131,T6 146, T6S 101



T Series: T36,T46,T56,T66,T76,T86



B Series: B36,B46,B56,B66,B76,B86,B101,B116,B131,B146



WF Series: HWF,PWF,SWF,UWF,ZWF



WT Series: RWT,EWT,AWT,BWT,NWT,HWT



WM Series: EWM,AWM,BWM,NWM



WG Series: EWG,AWG,BWG,NWG,HWG



Others: NMLC,HMLC,LTK48,LTK60,BGM,NGM,ADBG,ATW,BTW,NTW,NXD3,AX,NX,TT46,





Cheap Price DrillingTools Manufacturer In China -FAQ





Payment terms:100% by TT ,





Delivery time:10 days after deposit





Supply ability:1000 pcs per month.
