Specifications
Woodworking CNC router with Dust Collector and Vacuum System1. 1300*2500mm work area
2. NcStudio system
3. CE
Woodworking CNC router with Dust Collector and Vacuum System
Scope of application
Furniture Decoration Industry: A large area flat plate engraving, wood, panel furniture carving, wood art murals , wood cabinet doors carving.
Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
Technical Parameter
Model |
SK1325-II |
Working area (x*y*z) |
1300*2500*200mm |
Machine structure |
Steel structure lathe bed and T-slot of sectional material |
Work holding |
By clamps |
Overall dimensions (mm) |
3100*2050*1850 |
X Y movement |
Rack and gears |
Precision (mm) |
0.07 |
Positioning accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling speed (mm/min) |
15,000 |
Working speed (mm/min) |
10000 |
spindle |
3kw Water cooling (0-24000rpm) |
Available tools (mm) |
Φ3.175~Φ12.7 |
Drive system |
Stepper motors |
Working voltage |
AC380V±30V,50HZ |
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system |
NC Studio |
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
Optional part |
1) DSP control system 2) Japanese Servo motor 3) Dust collector |
Key Feature:
1. 1300*2500mm work area
2. 3kw water cooling spindle
3. Breakpoint restoring function enable the machine continue to work after sudden stop, such as accident , tool braking.
4. Racks and gears transmission with high speed motor keeps smooth movement in fast and accuracy.
5. Wide software compatibility with processing files generated by Type3, ArtCAM, JDPaint etc. CAD/CAM design software.
6. Type3 and JDPaint to come to 3d engraving.
7. CE certificate.
Sample Display
CE Certificate
After-sales service
1. One year for whole machine.
2. Small parts will be free for you as replacement, such as common cutter.
3. Lifespan technical support for free.
4. Detailed user manual in English and video to show how to use the machine and maintance.
5. If you meet problem when using machine, will be answered within 24 hours.

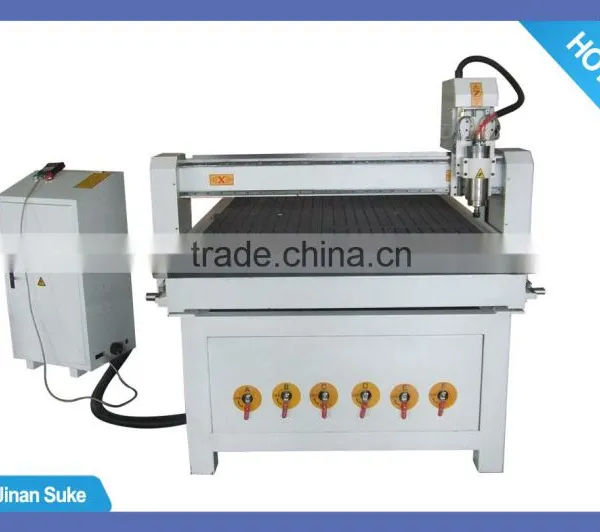

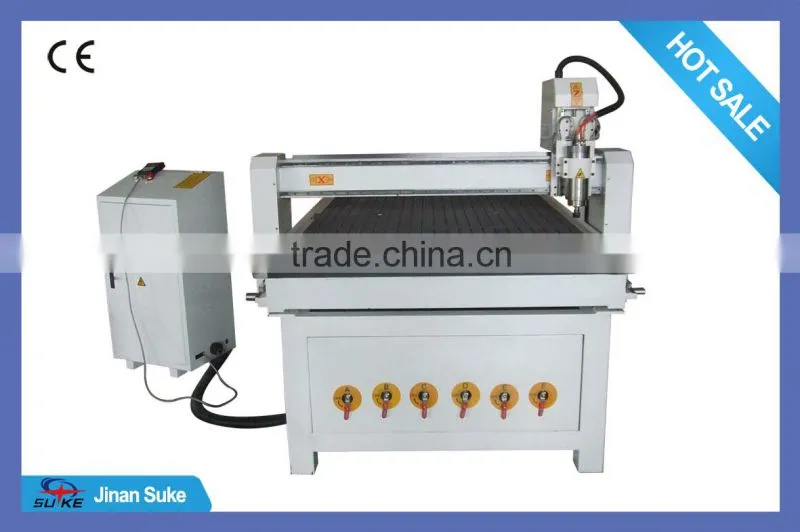

Machine Photo
We also supply other models as below: cnc router / cnc router machine
Model |
Working size |
Standard spindle power---water cooling |
SK3030-I |
30x3cm |
800w |
SK3030-II |
30x30cm |
800w |
SK6090 |
60x90cm |
1.5kw (1.5kw, 2.2kw is optional) |
SK1212 |
120x120cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1218 |
120x180cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1224 |
120x240cm |
1.5kw (1.5kw, 2.2kw.3kw is optional) |
SK1325-I |
130x250cm |
2.2kw |
SK1325-II |
130x250cm |
3kw |
SKM25 |
130x250cm |
4.5kw |
SK1530 |
150x300cm |
4.5kw |
SK9015 |
90x150cm |
5.5kw |
SK1318 |
130x180cm |
5.5kw |
SK1325 |
130x250cm |
5.5kw |
|
Note: Vacuum table, rotary axis, water sink, multi-heads are available And customize is accepted according your needs | ||
If you are interesting in any, please do not hesitate to contact me.
I will reply for you within 24 hours.
Wish we can have the chance for supplying our best service for you !
