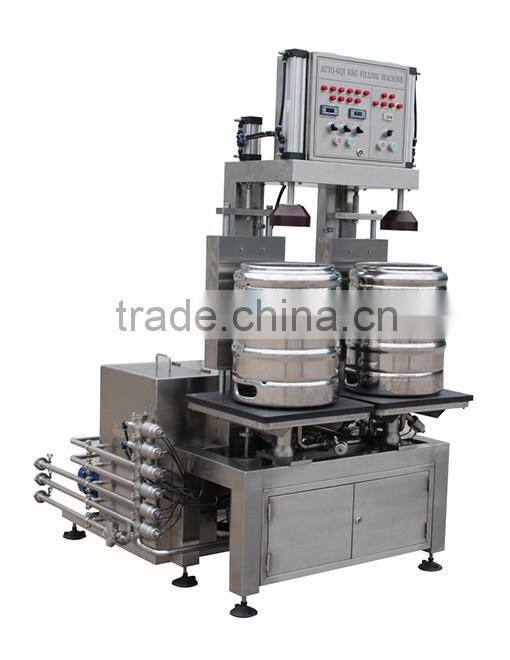

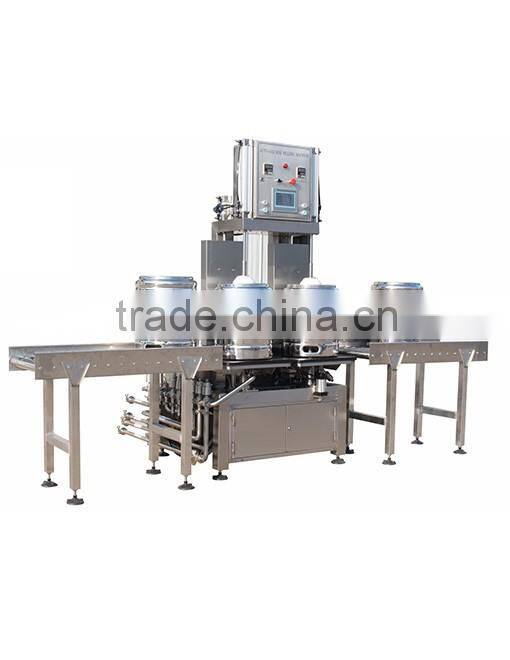

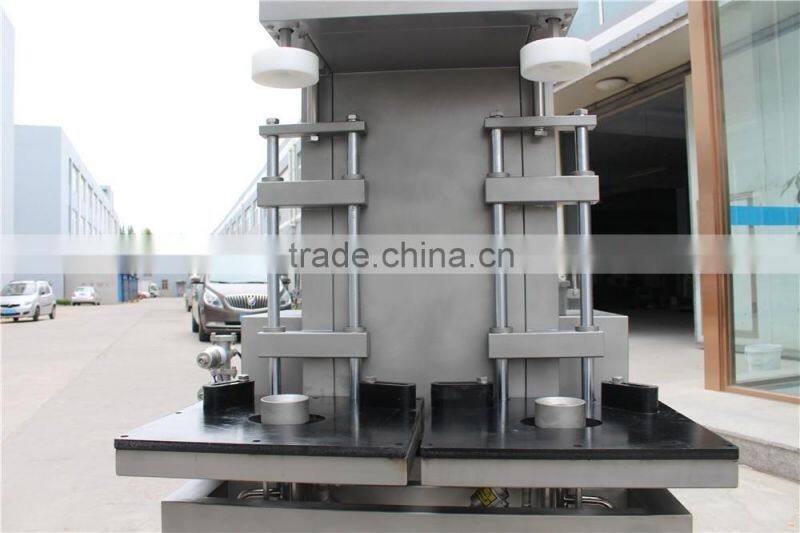

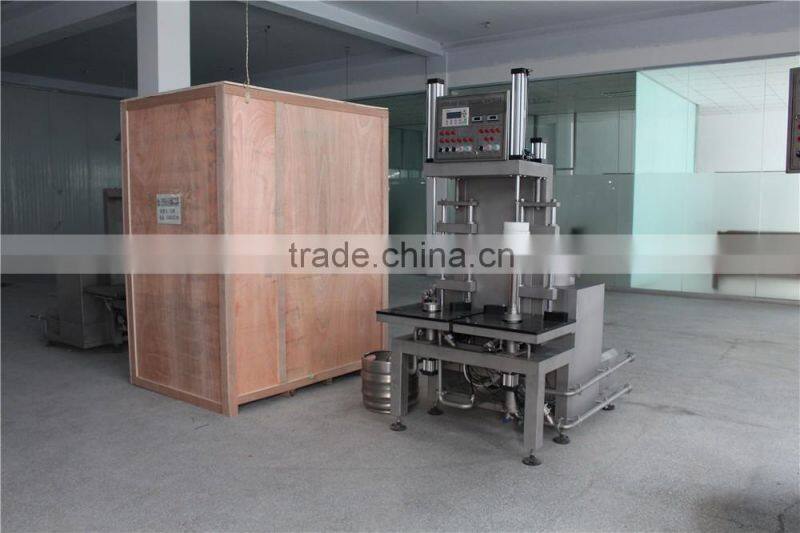

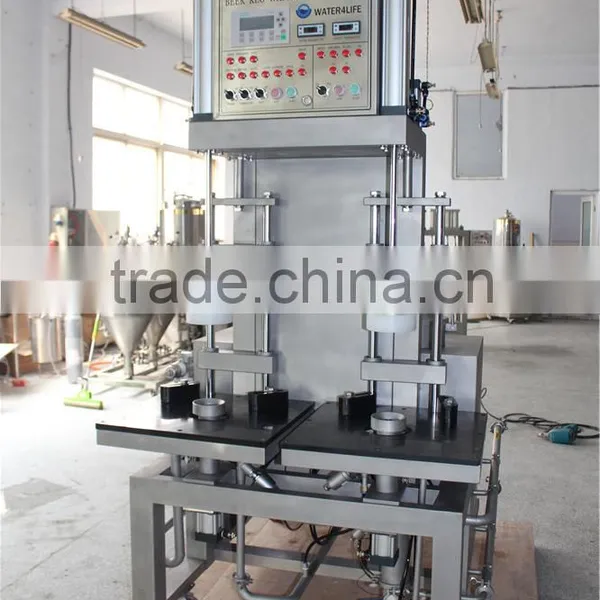

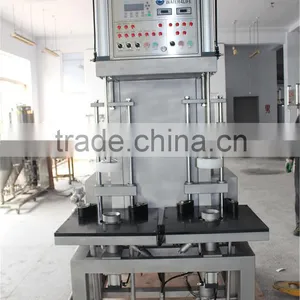

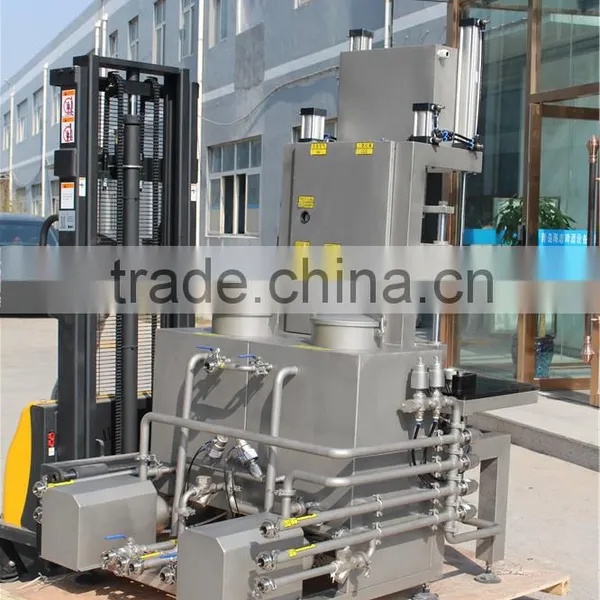

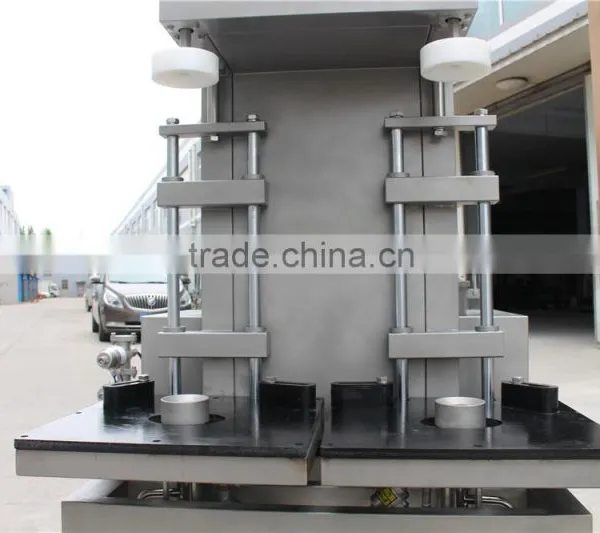

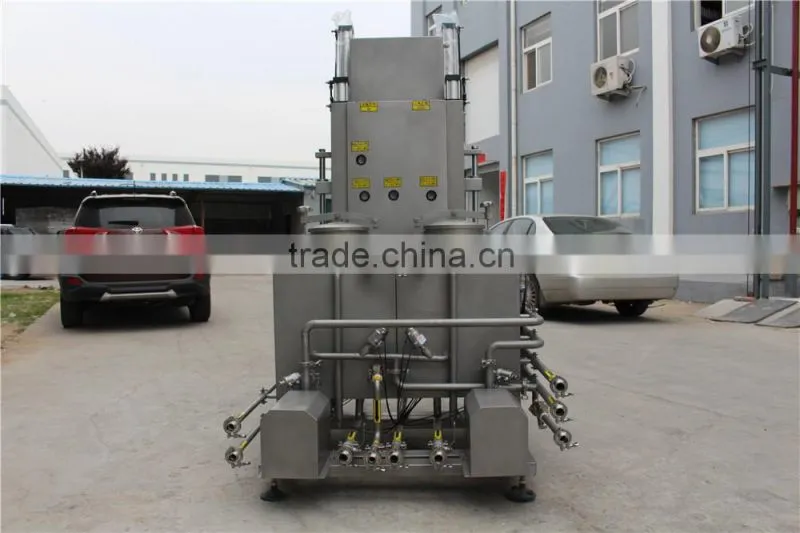

Help CenterAutomatic Beer Keg Washing and Filling Machine Equipment
Related Products
-
5-60L Beer Keg Washing and Filling Machine EquipmentUS$ 7,400 - 10,800MOQ: 1 Set -
Craft Beer Keg Washing and Filling Machine EquipmentUS$ 7,400 - 10,800MOQ: 1 Set
-
Automatic Beer Barrel Cleaning and Filling Machine EquipmentUS$ 7,400 - 10,800MOQ: 1 Set
-
Beer Can Washer and FillerUS$ 7,400 - 10,800MOQ: 1 Set
-
Beer Barrel Washing and Filling Equipment Washer and FillerUS$ 7,400 - 10,800MOQ: 1 Set
Specification and paramaters:
| Exterior Dimension | 1200mm*1600mm*1900mm |
| Net weight | 240KG |
| Power | 2KW(Steam heating),18KW(Electric heating) |
| Capacity | 30-40 KEGS/H |
| Washing and filling mode | Keg topside down |
| Applicable kegs | 5L-50L |
| air source pressure | 0.5-0.7MPA |
| Beer source pressure | 0.15-0.25MPA |
| Co2 source pressure | 0.2-0.3MPA |
| Cylinder valve pressure | 0.5-0.7MPA |
| Power voltage | Customized |
Main Structures and Characteristics:
1.SIEMENS S7-200 control unit is adopted for automatic control of all processes. Washing, disinfecting and CO2 pressure preparation will be automatically finished.
2.lye water, disinfecting water can be recycled to save water.
3.Adopt pneumatic angle vale combination to ensure a safe work.
4.Frame, working station, pipeline and valves are all by stainless steel, all pipelines and pneumatic system are all closed cycle. Good look and stable.
5.Time parameters can be adjusted according to customers’ demands. If a procedure is not needed, you can turn the time parameter of this procedure to “0”.
The washer working procedure
Pressing → drain off → water washing → air blowing/drain off → hot soda-water washing → air blowing/to soda-water box → hot water washing →air blowing/drain off → hot water washing → drain off → steam sterilized (air blowing/drain off) →co2 blowing/drain off→ sterilized water washing →co2 blowing/to water tank→ co2 pressure preparing
The filler working procedure
Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling → stop → unload the keg
CIP procedures at filling position:
Install washing accessory → start → spear cylinder open → time’s up → stop
