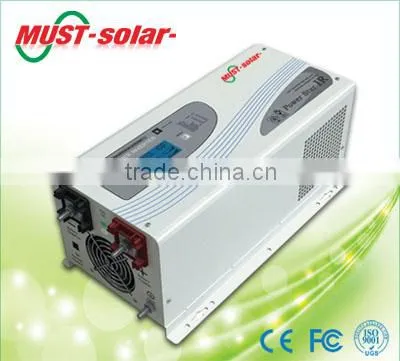

MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w Chinese Frequency Inverters

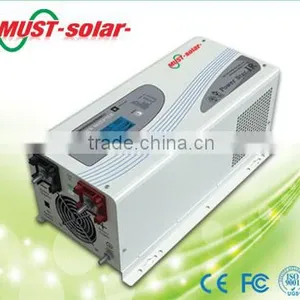

MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w Chinese Frequency Inverters thumbnail-1
MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w Chinese Frequency Inverters photo-1
US$ 169 - 445 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Must solar
Model Number:
EP3000 series pure sine wave inverter
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen /H.K.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Must solar
Model Number EP3000 series pure sine wave inverter
Output Power 1 - 200KW
Output Type Single
Size 630*218*179mm
Weight 22.5kg-49KG
Input Voltage 110v/120v/220v/230v
Output Voltage 110v/120v/220v/230v
Type DC/AC Inverters
Output Frequency 50/60 HZ
Output Current 40A

Specifications

1.chinese frequency inverters
2.DC TO AC inverter
3. Pure sinewave inverter
4.with battery cable
pper transformer

12v 220v dc/ac pure sine wave best ups solar power inverter generator 1000W 2000w 3000w 4000w 5000w 6000w solar inverter manufacturer

Outstanding Feature : Copper transformer



Must solar 1kw/2kw/3kw/4kw/5kw/6kw power INVERTER





 Main feature :



1. Features:



1. 1kw~6kw optional,  12V/24v/48Vdc

2.  Max. charge current  65A.
3. Pure sine wave.
4. Inbuilt pure copper transformer
5. Support inductive load

6. Automatic three-stage battery
    Charger (bulk, absorption, float)

7. With 150cm battery cable
8. Support generator
9. Support solar system
10. Remote control / RS232 optional
11. CE/ SONCAP certificate
12. Charge current adjustable: 25%,50%,75%,100%

13. input range: 100-127vac,output: 120vac
14.input range: 155-265vavc,output: 230vac
15. input frequency: 40-80hz, output: 50/60hz





2. Powermax Specification



Model  EP3000 Series  1000 2000 3000 3000 4000 5000 6000
Capacity W 1000W 2000W 3000W 3000W 4000W 5000W 6000W
Battery DC Voltage                     (Optional) 12V 24V or 12 24V 48V 48V 48V 48V
Recharge current 35+/-5A 35+/-5A 45+/-5A 35+/-5A 35+/-5A 40+/-5A 50+/-5A
3 - stage charge Boost CC → Boost CV → Float
Input Nominal Voltage 120VAC or 230VAC
voltage trip range 90v+-4% to 140v+-4%   or   184v/154v +-4% to 253v+-4%
Voltage re engage range 100v+-4% -135v+-4%     or   194v/164v+-4% to 243v+-4%
Max input AC voltage 150VAC or 270VAC
  Frequency 50Hz or 60Hz(Auto detect)

Current 25 Amps in maximum
Efficiency 95%
Output Voltage 120V or 230V AC ±5%
Wave form Pure Sine wave
Frequency 50/60Hz
voltage range Depends on battery type
Transfer time ≤5ms
Protection Overload 15 mins for 125%, 60s for 150%, 20s for over 150s
Short circuit protection Fault after 10 secs
Electric Fans   Thermo -controlling
Static Consumption   < 10 Watts
Surroundings Temperature, humidity 0-50 °C ,90%, no condensing
Surge rating (10s) 3000W 6000W 9000W 9000W 8000W 10000W 12000W
capable of starting electric moto 1HP 2HP 3HP 3HP 4HP 5HP 6HP
Physical Mount Horizontal wall mount
Size CM (H x W x D) 44.2 x 21.8 x 17.9 63.0 x 21.8 x 17.9
Carton CM (H x W x D) 58.0x32.0x31.0 75.5 x32.0x31.0
N.W ( KGS) 19 21 25 25 35 38 40
G.W   (KGS) 21 23 27 27 37 40 42
Remark Specification for reference , subject to change without prior notification
We accept order with special specifications



LCD &LED SOLAR POWER INVERTER



LCD PURE SINE WAVE INVERTER

  MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters

 MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency invertersMUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters



POWER INVERTER SYSTEM APPLIANCES IN THE HOUSE

 MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency invertersMUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters

MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency invertersMUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters











Battery cable of pure sine wave inverter



MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters





Packing of pure sine wave inverter



MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters



MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters





MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters





 Remote control on/off switch for IR series power solar inverter







MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters



Certficate for inverters



 MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters



HK Fair in 2013



MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters







MUST SOLAR 1000w 2000w 3000w 4000w 5000w 6000w chinese frequency inverters
