Online Ups 3kva 50-60hz

Online Ups 3kva 50-60hz thumbnail-1
Online Ups 3kva 50-60hz photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Must Solar
Model Number:
Castle-3000va
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Must Solar
Model Number Castle-3000va
Protection Unbalanced Loads
Weight 15KG
Output Voltage 220/110v
Type On-line
Application Security / Monitoring / Alarm

Specifications

1.1-3kva high frequency online ups
2.LCD/LED two types
3.CE,Rosh available
4.remote control managment
5.OEM



1. Features





  • True on-line double conversion technology with advanced microprocessor control
  • Wide input voltage range with high frequency technology
  • Zero transfer time
  • Protection against all type of power problems
  • Self test while start of the UPS
  • Site wiring fault warning
  • On-battery power-on function
  • Smart RS232 communication interface
  • Intelligent slot available
  • Sealed acid battery, free-maintenance battery

2.  Data Sheet



Output C6KVA/C6KS C10KVA/C10KS
Rated Power 6000VA/4200W 10000VA/7000W
Output Voltage 208VAC/220VAC/230VAC/240VAC
Voltage Waveform Pure Sine wave
Crest Factor 3:1
Output Frequency
(Synchronized- Mains) 		46~54Hz or 56Hz - 64Hz (Line mode)
50/60HZ/ ±0.05Hz( Battery mode)
Regulation(Nominal) ±1%
Regulation(Battery mode) ±1%
Transfer time AC to DC :Zero           Inverter to Bypass: Zero
Over current protection Line Mode:10min@100%~130%;Battery Mode:30s@100%~130%
Outlet Hard Wiring with Terminal Block
Harmonic Distortion ≤2%THD(Linear Load);≤5%THD(Non-Linear Load)

2.Input

Nominal Voltage 160~300VAC@full load (110~300VAC@half load)
Input Frequency 46~54Hz / 56~60Hz
Efficiency 90% (AC mode)   90%(Battery Type)
Noise Filtering Full time EMI/RFI filtering
Over current protection by AC fuse    or by re-settable over current   protector



AVR Range
(2 Bucks,2 Boosts) 		Enhanced Buck: +15% of selected nominal voltage
Buck mode: +5% of selected nominal voltage
Boost mode: -5% of selected nominal voltage
Enhanced Boost: -12.5% of selected nominal voltage
Phase Single phase with ground

3.Battery

Battery type Sealed Lead Acid Battery
Rated Charging Voltage 220.8Vdc
Typical backup time >5min
Charging method Smart pulse charging with two charging modes.
Quick charging when battery is not fully charged,
trickle charging when battery is 90% fully charged.
Charging current(MAX) 1.0A(6KS,10KS:4.0/8.0A)
Protection Over current protection &
Over charging voltage protection (SCR control)
Thermal protection (CPU control)
When temperature inside UPS is over 45°C,charger will stop
charging for 2.5 minutes followed by an 1.5 minutes charging.
The cycle will be repeated until the temperature is lower than 44°C.
Temperature
Compension 		Yes
Numbers of
Battery		 20

4.Optional Features

ECO Mode Support
CVCF Support
PDU Support
Remote Panel Wired Type,Up to 100M Length



Parallel Redundancy Up to 4 Units maxium(Option)
Up to 4 Units maxium(Option)

5.Environmental and Safety

Operating Temperature  0°C to 40°C (32°F to 104°F)
Transit/storage
Temperature 		-15°C to 55°C (5°F to 131°F)
Relative Humidity 20-90%(NON-CONDENSING)
Operating Altitude 0 ~ 3000 meters
Audible noise Less than 50 dBA
Safety Markings BSMI CE
EMC Class B, EN50091-2, FCC part15, IEC1000-2-2
Quality control system ISO 9001:2000
Noise Level <60dB@1 Meter

6.Indicator

LED Version Load Level/Battery Level/Battery;Mode/AC Mode/Bypass Mode/Fault
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload  Sounding twice every  second
Fault Continously Sounding

7.Interface

Smart RS-232 Software supports Windows Family.Sun Solaris,
IBM Aix,Compaq True64,SGIIRIX ,FreeBSD.HP-UX,and MAC
USB (Option) Windows Family& MAC
Internal Slot (Option) SNMP/AS400 Relay Card/Rs485
EPO(Option) Support Emergency Shutdown

8.Physical

Dimensions:
(D×H×W)		 570*260*717mm
N.W/G.W(kg) 6KVA:90  6KS:35 10KVA:93  10KS:38
Packing PBP standard Packing,Export carton for each unit

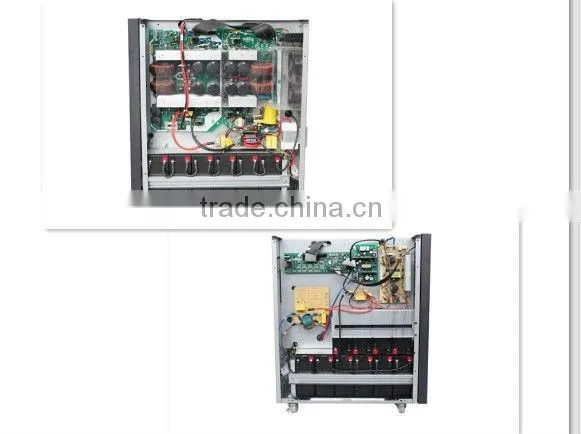

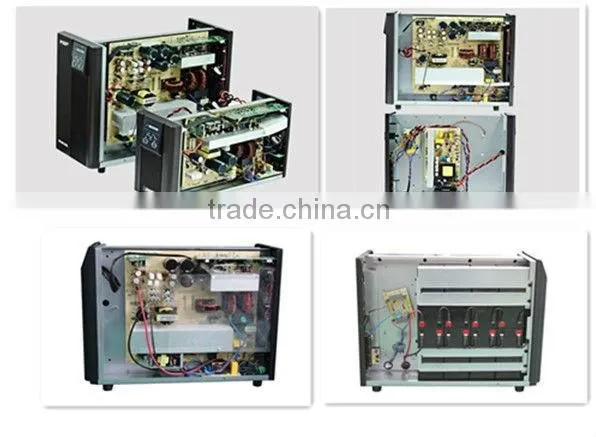

3.Pictures



   online ups 3kva 50-60hz

          online ups 3kva 50-60hz





             online ups 3kva 50-60hz





online ups 3kva 50-60hz



4. Typical Application



  Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecomonline ups 3kva 50-60hz





Input C1KVA/C1KS C2KVA/C2KS C3KVA/C3KS
Nominal
Voltage 		160~300VAC@full load
(110~300VAC@half load)
Input
Frequency 		46~54Hz / 56~60Hz
Efficiency 87% (AC mode)/83%(Battery Type)
Noise Filtering Full time EMI/RFI filtering
Over current
protection 		by AC fuse or by re-settable
over current   protector
AVR Range
(2 Bucks,
2 Boosts) 		Enhanced Buck: +15% of selected nominal voltage
Buck mode: +5% of selected nominal voltage
Boost mode: -5% of selected nominal voltage
Enhanced Boost: -12.5% of selected nominal voltage
Phase Single phase with ground

3.Battery

Battery type Sealed lead acid Battery
Rated Charging
Voltage 		41.0Vdc / 81.9Vdc / 109.2Vdc
Typical backup
time 		>5min
Charging
method 		Smart pulse charging with two charging modes.
Quick charging when battery is not fully charged,
trickle charging when battery is 90% fully charged.
Charging
current(MAX) 		1.0A(C1KS-C3KS:4.0/8.0A)
Protection Over current protection &
Over charging voltage protection (SCR control)
Thermal protection (CPU control)
When temperature inside UPS is over 45°C,
charger will stop charging for 2.5 minutes
followed by an 1.5 minutes charging.
The cycle will be repeated until the temperature
is lower than 44°C.
Temperature
Compension 		Yes
Numbers of
Batteries 		3 / 8 / 8

4.Optional Features

Economic
Mode
(ECO Mode) 		Support
Free Run
Mode(CVCF) 		Support
PDU
(Power
Distribution
Unit) 		Support
Remote Panel Wired Type,Up to 100M Length
Parallel
Redundancy 		Up to 4 Units maxium(Option)

5.Environmental and Safety

Operating
Temperature 		 0°C to 40°C (32°F to 104°F)
Transit/storage
Temperature 		-15°C to 55°C (5°F to 131°F)
Relative
Humidity 		20-90%(NON-CONDENSING)
Operating
Altitude 		0 ~ 3000 meters
Audible noise
at 1M from
surface
of unit 		less than 50 dBA
Safety
Markings 		BSMI CE
EMC Class B, EN50091-2,
FCC part15, IEC1000-2-2
Quality control
system 		ISO 9001:2000
Noise Level <55db@1 Meter
LED Version Load Level/Battery Level/Battery
Mode/AC Mode/Bypass Mode/Fault
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload  Sounding twice every  second
Fault Continously Sounding
LCD Version Load/Battery/Input/Output/Operating
Mode Information
