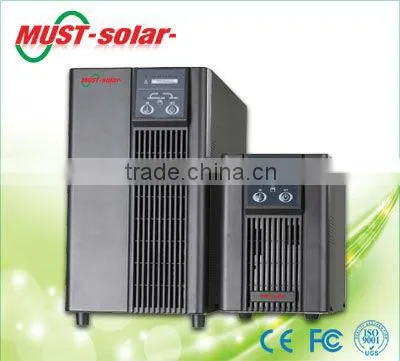

MUST SOLAR Pure Sine Wave Online Ups Power Supply 1kva-20kva
US$ 128 - 1,010
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PBP
Model Number:
Castle series ups for home appliances
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen /Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v 220v Pure Sine Wave Online Best Ups 1000va 2000va3000vaUS$ 128 - 632MOQ: 20 Pieces -
Mini Ups With Battery 220v 500va 650va 800va Ups 500va With AvrUS$ 18.3 - 41MOQ: 100 Pieces
-
6000va Online Power Ups Pure Sine WaveUS$ 98.8 - 630MOQ: 1 Piece
-
3 Phase Input Single Phase Output 15kva Ups 3c15ksUS$ 360 - 370MOQ: 1 Piece
-
Online Ups1kva 2kva 3kva With Inside Battery Inline UpsUS$ 128 - 1,010MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
PBP
Model Number
Castle series ups for home appliances
Phase
Single Phase
Protection
Overvoltage
Weight
35kg
Output Voltage
220v±2%
Type
On-line
Application
Medical
Specifications
1.DSP control ups2.Extended backuptime
3.optional high efficency mode
4.LCD/LED Display ups
5.efficency>95%
PBP 1000va~20kva online ups
1. Features
1.Optional high efficency mode
2. Optional free run mode(CVCF)
3.Optional remote monitoring panel
4.LCD/LED display with customized setting intormation.
5.Extended backup time
6.Power management software
7.N+X parallel redundancy
8.DSP control
2. online ups specification
| Model | 1K | 1KS | 2K | 2KS | 3K | 3KS | 6K | 6KS | 10K | 10KS | 3/1 10KS | 3/1 15KS | 3/1 20KS | |
| CAPACITY | VA/W | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | 6000VA/4200W | 10000VA/7000W | 15KVA/10.5KW | 20KVA/14KW | ||||||
| Voltage Range | 160~300VAC@full load(110~300VAC@half load) | 277~520VAC@full load | ||||||||||||
| Frequency Range | 46~54Hz / 56~60Hz | |||||||||||||
| Phase | Single Phase with groud | Three Phase In/Single Phase Out | ||||||||||||
| Current THD | < 5% | |||||||||||||
| Power Factor | ≥0.99 | |||||||||||||
| Generator Input | Support | |||||||||||||
| OUTPUT | Voltage | 208VAC/220VAC/230VAC/240VAC | ||||||||||||
| Voltage Regulation | ±1% | |||||||||||||
| Frequency (Syn.Range) | 46~54Hz / 56~60Hz | |||||||||||||
| Frequency (Battery Mode) | 50~60Hz/±1% | |||||||||||||
| Current Crest Ratio | 3:1 | |||||||||||||
| Harmonic Distortion | ≤2% THD (linear load) / ≤5% THD (No-linear load) | |||||||||||||
| Output Waveform | Pure sine wave | |||||||||||||
| Outlet | IEC×4 | IEC×6 | IEC×4+Terminal | Hard wiring terminal block | ||||||||||
| Overload capacity | Line Mode:10min@100%~130% | |||||||||||||
| Battery Mode:30s@100%~130% | ||||||||||||||
| EFFICIENCY | AC Mode | 87% | 90% | |||||||||||
| Battery Type | 83% | 90% | ||||||||||||
| ECC Mode | 97% | |||||||||||||
| BATTERY | Battery Type | 12v/7AH | 12v/7AH | 12v/7AH | 12v/7AH | 12v/7AH | Depending On The Capacity of External Batteries | |||||||
| Numbers of Batteries | 3 | 8 | 8 | 20 | 20 | |||||||||
| Backup Time(Full Load) | >5mins | >5mins | >5mins | >5mins | >5mins | |||||||||
| Recharge Time(to 90%) | 5 Hours | 5 Hours | 5 Hours | 5 Hours | 5 Hours | |||||||||
| Charging Current(Max) | 1.0A | 4.0/8.0A | 1.0A | 4.0/8.0A | 1.0A | 4.0/8.0A | 1.0A | 4.0/8.0A | 1.0A | 4.0/8.0A | ||||
| Rated Charging Voltage | 41.0v DC | 81.9V DC | 109.2V DC | 273V DC | ||||||||||
| Temperature Compensation | Yes | |||||||||||||
| TRANSFER TIME | AC TO DC | Zero | ||||||||||||
| Inverter to Bypass | <4ms;Zero with Optional STS | Zero | ||||||||||||
| OPTIONAL FEATURES | Economic Mode(ECO Mode) | support | ||||||||||||
| Free Run Mode(CVCF) | support | |||||||||||||
| PDU(Power Distribution Unit) | support | |||||||||||||
| Remote Panel | Wired Type,Up to 100M Length | |||||||||||||
| Parallel Redundancy | Up to 4 Units maxium(Option) | |||||||||||||
| DIMENSION | Tower Case(D*W*H)mm | 400*145*220 | 460*192*348 | 460*192*348 | 570*260*717 | |||||||||
| WEIGHT | Tower Case(kgs) | 14 | 7 | 34 | 13.5 | 35 | 14 | 90 | 35 | 93 | 38 | 38.5 | 65 | 65 |
| ENVIRONMENT | Operating Environment | 0~40°C | ||||||||||||
| Relative Humidity | 20~90%(Non-Considensing) | |||||||||||||
| Noise Level | <55db@1 Meter | < 60db@1 Meter | ||||||||||||
| INTEFACE | Smart RS-232 | Software supports Windows Family.Sun Solaris,IBM Aix,Compaq True64,SGIIRIX ,FreeBSD.HP-UX,and MAC | ||||||||||||
| USB (Option) | Windows Family& MAC | |||||||||||||
| Internal Slot(Option) | SNMP/AS400 Relay Card/Rs485 | |||||||||||||
| EPO(Option) | Support Emergency Shutdown | |||||||||||||

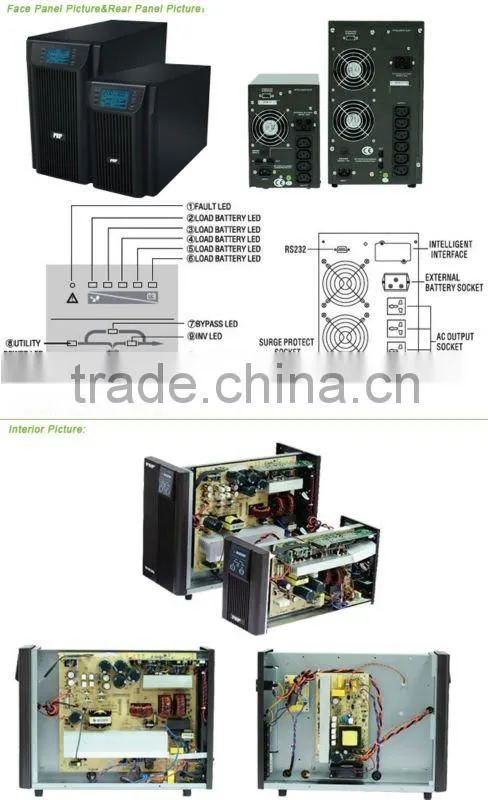

3. Detail pictures
