220v Home ups 1000va with batteries

Specifications

1)Output voltage 220v
2)Rated power 1000va
3)built-in batteries
4)True sine wave
5) high Frequency



1. Features





• True on-line double conversion technology with advanced microprocessor control
• Wide input voltage range with high frequency technology
• Zero transfer time
• Protection against all type of power problems
• Self test while start of the UPS
• Site wiring fault warning
• On-battery power-on function
• Smart RS232 communication interface
• Intelligent slot available
• Sealed acid battery, free-maintenance battery

2.  Data Sheet



Output	C6KVA/C6KS	C10KVA/C10KS
Rated Power	6000VA/4200W	10000VA/7000W
Output Voltage	208VAC/220VAC/230VAC/240VAC
Voltage Waveform	Pure Sine wave
Crest Factor	3:1
Output Frequency (Synchronized- Mains)	46~54Hz or 56Hz - 64Hz (Line mode) 50/60HZ/ ±0.05Hz( Battery mode)
Regulation(Nominal)	±1%
Regulation(Battery mode)	±1%
Transfer time	AC to DC :Zero           Inverter to Bypass: Zero
Over current protection	Line Mode:10min@100%~130%;Battery Mode:30s@100%~130%
Outlet	Hard Wiring with Terminal Block
Harmonic Distortion	≤2%THD(Linear Load);≤5%THD(Non-Linear Load)

2.Input

Nominal Voltage	160~300VAC@full load (110~300VAC@half load)
Input Frequency	46~54Hz / 56~60Hz
Efficiency	90% (AC mode)   90%(Battery Type)
Noise Filtering	Full time EMI/RFI filtering
Over current protection	by AC fuse    or by re-settable over current   protector



AVR Range (2 Bucks,2 Boosts)	Enhanced Buck: +15% of selected nominal voltage Buck mode: +5% of selected nominal voltage Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage
Phase	Single phase with ground

3.Battery

Battery type	Sealed Lead Acid Battery
Rated Charging Voltage	220.8Vdc
Typical backup time	>5min
Charging method	Smart pulse charging with two charging modes. Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Charging current(MAX)	1.0A(6KS,10KS:4.0/8.0A)
Protection	Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside UPS is over 45°C,charger will stop  charging for 2.5 minutes followed by an 1.5 minutes charging. The cycle will be repeated until the temperature is lower than 44°C.
Temperature Compension	Yes
Numbers of Battery	20

4.Optional Features

ECO Mode	Support
CVCF	Support
PDU	Support
Remote Panel	Wired Type,Up to 100M Length



Parallel Redundancy

Up to 4 Units maxium(Option) Up to 4 Units maxium(Option)

5.Environmental and Safety

Operating Temperature	0°C to 40°C (32°F to 104°F)
Transit/storage Temperature	-15°C to 55°C (5°F to 131°F)
Relative Humidity	20-90%(NON-CONDENSING)
Operating Altitude	0 ~ 3000 meters
Audible noise	Less than 50 dBA
Safety Markings	BSMI	CE
EMC	Class B, EN50091-2, FCC part15, IEC1000-2-2
Quality control system	ISO 9001:2000
Noise Level	<60dB@1 Meter

6.Indicator

LED Version	Load Level/Battery Level/Battery;Mode/AC Mode/Bypass Mode/Fault
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every  second
Fault	Continously Sounding

7.Interface

Smart RS-232	Software supports Windows Family.Sun Solaris, IBM Aix,Compaq True64,SGIIRIX ,FreeBSD.HP-UX,and MAC
USB (Option)	Windows Family& MAC
Internal Slot (Option)	SNMP/AS400 Relay Card/Rs485
EPO(Option)	Support Emergency Shutdown

8.Physical

Dimensions: (D×H×W)	570*260*717mm
N.W/G.W(kg)	6KVA:90  6KS:35	10KVA:93  10KS:38
Packing	PBP standard Packing,Export carton for each unit

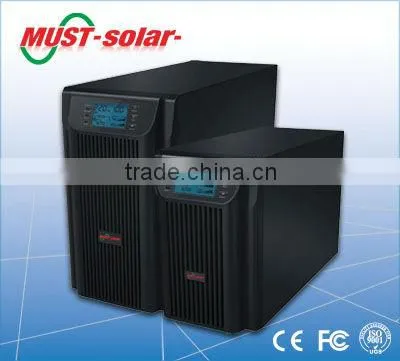

3.Pictures



















4. Typical Application



  Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom



Main Features:

Sine-wave output: True sine-wave output with less than 3% THD.
Double Conversion Design: Zero transfer/ complete isolation of input AC.
UPS Monitoring Software: Powerful true RS232 communication via the enclosed software to manage and safely shutdown operating systems.
Network RJ45/11 protection: Complete powerful network and phone line surge protection.
AC Surge Suppressor: Powerful multi-stage surge components that exceed IEEE requirements.
SNMP Slot Option: Allows for remote monitoring and control via www.
Sleep Mode: Worry free battery management. The unit turns itself off after ten seconds to conserve battery power when no power needs are detected.
Battery level indicators: LED’s indicate battery levels.
Load Sensing: The incorporated LED load indicators allow IT professionals to manage backup time and balance power loads.
Low Battery indicators: The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts down.
Replace Battery indicators: A preventative measure that indicates when batteries must be replaced to prevent server crashes.





Output	C1KVA/C1KS	C2KVA/C2KS	C3KVA/C3KS
Power Levels crated at nominal inputs	1000VA/700W	2000VA/1400W	3000VA/2100W
Output Voltage	208VAC/220VAC/230VAC/240VAC
Voltage Waveform	Sine wave
Crest Factor	3:1
Output Frequency (Synchronized to Mains)	46~54Hz or 56Hz - 64Hz (Line mode) 50/60HZ/ ±0.05Hz( Battery mode)
Regulation (Nominal)	±1%
Regulation (Battery mode)	±1%
Transfer time	0 ms; less than 4 ms from inverter  to bypass and vice versa
Over current protection	Line Mode:10min@100%~130%; Battery Mode:30s@100%~130%
Outlet	IEC*4/IEC*6/IEC*4+Terminal
Harmonic Distortion	≤2%THD(Linear Load) ≤5%THD(Non-Linear Load)

2.Input

Input	C1KVA/C1KS	C2KVA/C2KS	C3KVA/C3KS
Nominal Voltage	160~300VAC@full load (110~300VAC@half load)
Input Frequency	46~54Hz / 56~60Hz
Efficiency	87% (AC mode)/83%(Battery Type)
Noise Filtering	Full time EMI/RFI filtering
Over current protection	by AC fuse or by re-settable  over current   protector

AVR Range (2 Bucks, 2 Boosts)	Enhanced Buck: +15% of selected nominal voltage Buck mode: +5% of selected nominal voltage Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage
Phase	Single phase with ground

3.Battery

Battery type	Sealed lead acid Battery
Rated Charging Voltage	41.0Vdc / 81.9Vdc / 109.2Vdc
Typical backup time	>5min
Charging method	Smart pulse charging with two charging modes. Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Charging current(MAX)	1.0A(C1KS-C3KS:4.0/8.0A)
Protection	Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside UPS is over 45°C,  charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging.     The cycle will be repeated until the temperature is lower than 44°C.
Temperature Compension	Yes
Numbers of Batteries	3 / 8 / 8
