<MUST Solar>Rack Mounted Inverter Telecom Inverter 1kva 2kva 3kva 5kva 6kva

<MUST Solar>Rack Mounted Inverter Telecom Inverter 1kva 2kva 3kva 5kva 6kva thumbnail-1
<MUST Solar>Rack Mounted Inverter Telecom Inverter 1kva 2kva 3kva 5kva 6kva photo-1
US$ 277 - 280 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MUST Solar
Model Number:
TH Series Telecome Inverter, TH -1000VA/800watts communication inverter
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MUST Solar
Model Number TH Series Telecome Inverter, TH -1000VA/800watts communication inverter
Output Power 1 - 200KW
Output Type Single
Size 482*330*88mm
Weight 8.5kgs
Input Voltage 90v-150v
Output Voltage 120Vac±3%(inverter output)
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 25A

Specifications

Pure Sine Wave TH series 1kva;
Telecome power inverter;
High Power Factor ;
MOQ:1pcs.
Price:EXW Low price 277/pc.

<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva





Telecom Inverter Pure sine wave inverters DC/AC 1000va 2000va 3000va 5000va 6000va High Frequency Inverter









Telecom Inverter Product Introduction





Along with the quick development of information network technology, Inverter
/ Power Inverter / Inverter Power Supply is a new DC to AC conversion power supply. The inverter power supply is widely used in the fields such as Telecom, Mobile, Unicom, Aviation and spaceflight, finance management, OA, industrial auto control, medical treatment and sanitation, military affairs, scientific research etc. Use the battery DC as input, after inverting, Inverter will output the pure sine wave AC. The output voltage and frequency is ultra-reliable and and work continuously in long time. Inverter can eliminate the disadvantage such as power interrupt, un constant voltage, noise interfere and surge etc. At the same time, Inverter / Power Inverter / Inverter Power Supply can solve the limitation of short backup time of UPS. So Inverter / Power Inverter / Inverter Power Supply can ensure the continually and reliable working of electro-equipments.





Telecom Inverter Specifications:





Model

TH500

TH1000

TH2000

TH3000

TH5000

Rated capacity (VA)

500VA

1000VA

2000VA

3000VA

5000VA

Rated output power (W)

400W

800W

1600W

2400W

3500W

DC Input

Rated input
voltage (Vdc)

48V

Rated input
current (A)

10

25

50

75

125

Shut down
voltage range

40V~60V

Start-up
voltage range

46V~57V

Reflect noise
current

≤10%

AC input

Allowed bypass
voltage (Vac)

220±15%

Rated input
current (A)

2.3

4.5

9.1

13.6

22.7

Bypass switch
time (ms)

≤5ms

AC output

Rated output
voltage and
frequency

220Vac,50Hz

Waveform

Pure sine wave

Rated output
current (A)

1.8

3.6

7.2

10.8

16

Output voltage
precision (V)

220±1.5%

Output frequency
precision (Hz)

50Hz±0.1%

Waveform
distortion (THD)

≤3% (liner load)

Dynamic
respond time

5% (load 0←→100%)

Power factor (PF)

0.7/0.8





Over loading
capability

120%,30seconds

Invert
efficiency

≥85%













Operation
Situation

Insulating intensity

1500Vac,1 minute

Noise (1m)

≤40dB

Operation temperature

-25°C~+50°C

Humility

0~90%, non condensing

Operation altitude (m)

≤1000

Cooling mode

Forced wind cooling



Inverter status

Mains supply is normal, invert normal, battery under voltage, output overloading







External
dimension

19inch Rack(2U)

482*88*250

482*88*300

482*88*380

Weight

5Kg

7 Kg

8 Kg

11 Kg

13 Kg

Stand-alone(W*H*D)

/

175*275*452

222*328*452

Weight

/

8 Kg

9 Kg

12 Kg

15 Kg

Color

White (grey)



Protection function

Input under/over voltage, output overloading, short circuit, city power high-low voltage protection

Output mode

Socket or terminal block

terminal block

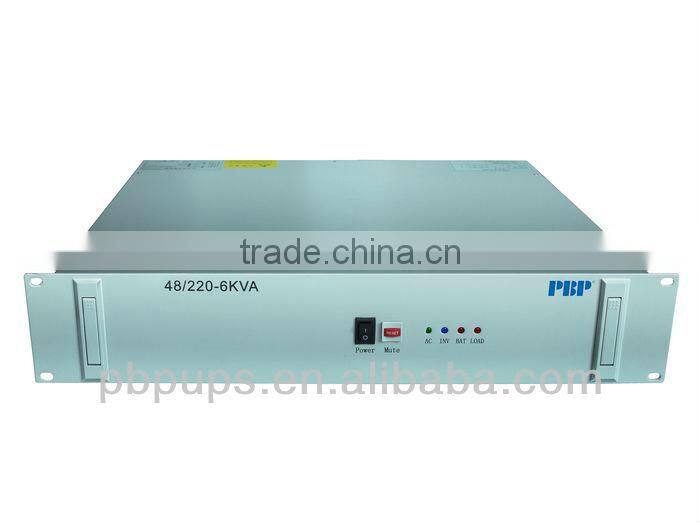

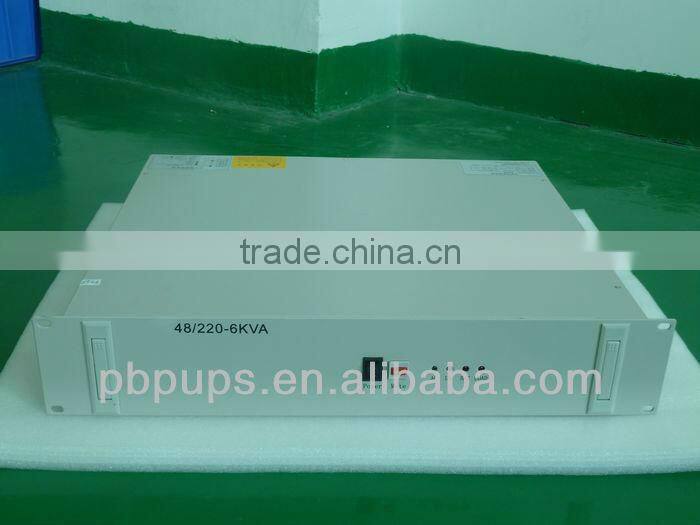

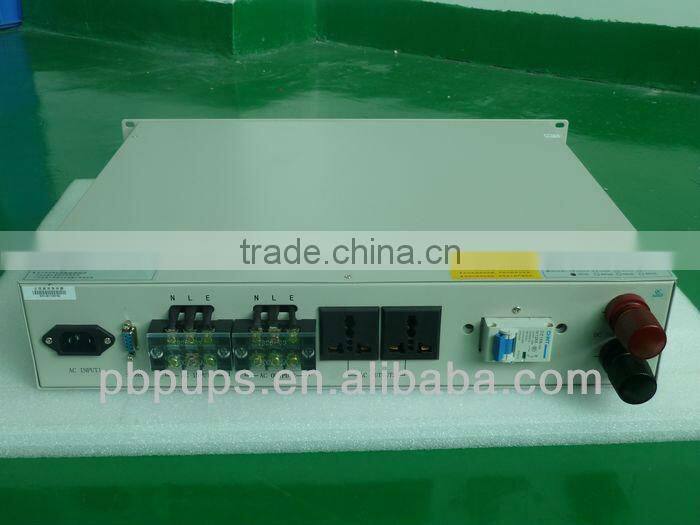

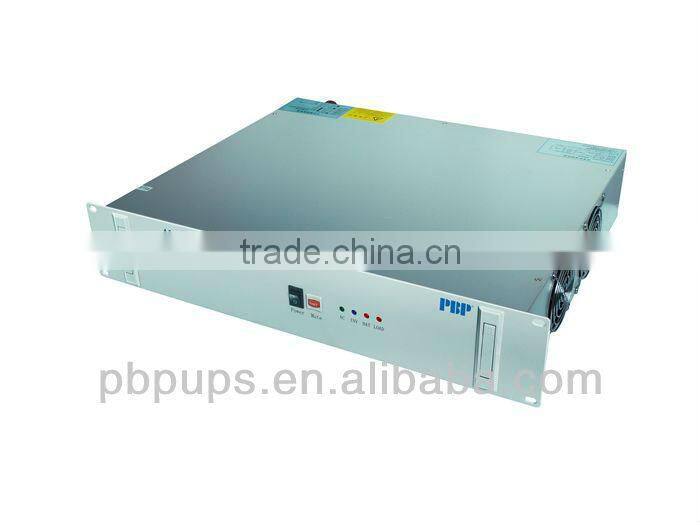

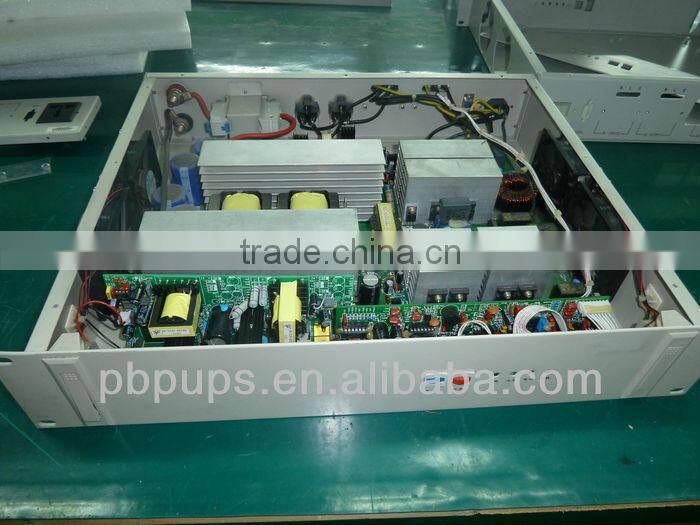

 Telecom Inverter Picture:



<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva



<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva





<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva



<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva









<MUST Solar>Rack mounted inverter telecom inverter 1kva 2kva 3kva 5kva 6kva





Telecom Inverter Pure sine wave inverters DC/AC 1000va 2000va 3000va 5000va 6000va High Frequency Inverter
