Home > Consumer Electronics > Audio & Sets > Professional Audio > PA System 10 Zone Programmable Weekly Timer With Mp3

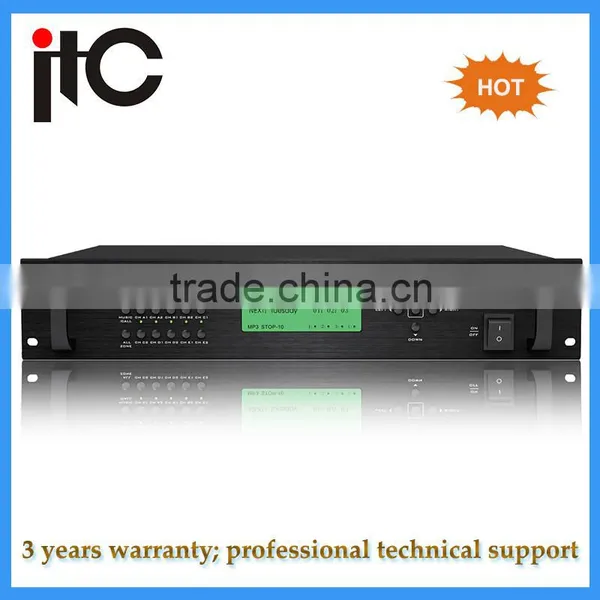

PA System 10 Zone Programmable Weekly Timer With Mp3

PA System 10 Zone Programmable Weekly Timer With Mp3 photo-1

PA System 10 Zone Programmable Weekly Timer With Mp3 photo-2

US$ 300 - 500 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-6232

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-6232

Architects' & Engineers' Guidance

•T-6232 shall built-in a program weekly timer, a 10 zone speaker selector and a Mp3 player.

•The program weekly timer shall be capable of creat program to schedule broadcast

•The Mp3 player shall be operated through the SD input on the rear panel of this equipment.

•The built-in speaker selector could distribute a power amplifier into 10 zone speaker outputs.

•A scheduled broadcast would be programmed alone by this equipment. The program could distribute the voice messages or music songs from the memory card to the designated speaker zones at pre-set time.

•There shall be five programs could be edited and one of them could be operated manual for emergency use by pressing the swift program button.

•A monitor shall be built-in to supervise the zone output with monitor volume attenuation.

PA System 10 zone programmable weekly timer with mp3

( public address & communication system, amplifier with audio sources, mixer preamplifier, mixer amplifer, class-d amplifier, loop amplifier,power amplifier,weekly timer,mic & podium lectern,volume control,audio matrix system)

What is the special features of the 10 zone programmable weekly timer with mp3 ?

It provides users with keys to do programming, and the result will be displayed in the screen;
4 main programs and 1 spare program are available.
Internal MP3 player could be broadcasted programmable and the store could be expandable. Several available hot keys to control MP3 player.
With 5 amp input and 10 speaker output, that means 1 signal is divided to 2 channel output.
Using CAT 5 bus control, 16 T-6232 could work together so that the system includes up to 160 zones.
It could operate lastly, and the num. of programmed music is up to 99.
With monitor for audio output.
With 4 programmable power controller and 2 AUX power socket, and manual/Auto. is available. Port for external power sequencer is also available.
When fire signal triggers, all power supply controlled by T-6232 work so that all zones are in operation status. When reset, T-6232 turns to work regularly.
With RS-232 to work with PC.
When controlled by PC, users could finish the schedule of programming by PC.
It’s with function of remote control. And users’re able to custom the key one the remote controller by through PC.
It supports off-line operation.
Time in the host would be updated by PC.

What is the special specification of the 10 zone programmable weekly timer with mp3 ?

Model	T-6232
Power Output	~110V/60Hz or ~230V/50Hz 4 Program Power+2 AUX power Total Power 5KW
Function Button	Light touch press buttons include 4 power switch buttons, 1 MP3 control button, 1 backup program switch, 10 zones speaker selector button, all zones button, 1 music or paging switch button. 4 menu buttons for switch, 1 ok button
Indication Method	192x64 LCD display, English
Audio Output	1KΩ0.775V Unbalance(6.35 RC) 0V(Short Circuit) Industrial Standard
Voltage Input and Output of Alarm	Integrated Terminal Block 0V(Short Circuit) Industrial Standard

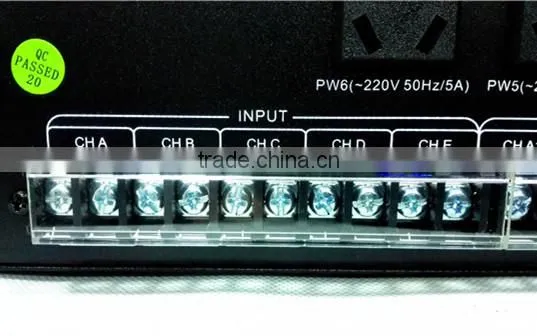

Voltage Output for Power Control	Integrated Terminal Block CHA CHB CHC CHD CHE CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2
Amplifier Input and Output	0.5W
Monitor Power of Speaker	−∞~0dB
Monitor Volume Attenuator	24 hours(hour-minutes-seconds) weekly
Time Mode	Total 5pcs(4 normal programs, 1EMC)
Program Quantity	Total 512 Steps, 1 day 200 Steps
Program Steps	RS422
Communication Protocols	RJ45
Communication Port	4800bps
Communication Speed	160 zone(16pcs T-6217 10 zone speaker seletor)
MP3 Frequency Response	20Hz~20KHz/ 1dB
Mp3 Store Format	Compatible FAT12, FAT16, FAT32
Power Supply	~110V/60Hz or ~230V/50Hz
Dimensions	484x303x88mm
Weight	6.8Kg

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
