LA-2650PLA-1200P

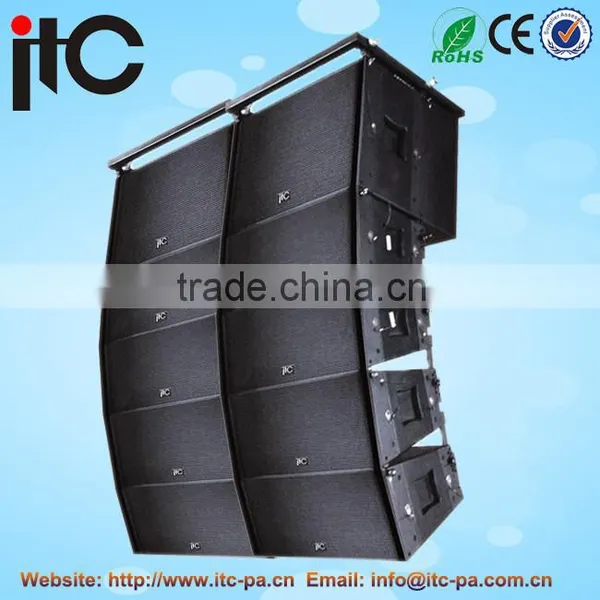

China popular active speaker box line array sound system
The active line array loudspeaker range is ideal for sound reinforcement system for meeting room, concert, outdoor party, auditorium & stadium etc.
* Versatile installation for conference room, auditorium, stadium, concert & bar.
* Easy plus-in installation and use.
* Minimum cable wiring and low cost of maintenance.
* Supply with secure steel ring for easy installation.
* Built-in 85% high efficient class-D amplifier with better sound restoration and highestReliability.
Model |
LA-2650P |
LA-2800P |
LA-1200P |
LA-1800P |
Description |
Two way active line array loudspeaker |
Two way active line array loudspeaker |
Active Subwoofer |
Active Subwoofer |
Rated power ouput |
150W (AES) |
300W(AES) |
350W (AES) |
500W(AES) |
Output Impedance |
6Ω |
8Ω |
8Ω |
4Ω |
Frequency Response(-10dB) |
85Hz-20KHz |
70Hz-20KHz |
45Hz-800Hz |
40Hz-800Hz |
Sensitivity(1W@1M) |
99dB |
100dB (1M/1W ) |
99dB |
100dB (1M/1W) |
Line input sensitivity |
0dB |
0dB |
0dB |
0dB |
Speaker Type |
6.5" x 2 |
8" x 2 |
12" x 1 |
18" x 1 |
Tweeter |
34mm(1.34") 1x compression driver |
44mm (1.73") 1x compression driver |
/ |
/ |
Horizontal Dispersion Angle(-6dB) |
90° |
90° |
/ |
/ |
Vertical Dispersion Angle(-6dB) |
Change according to the linear array |
Change according to the linear array |
/ |
/ |
|
size and Angle |
size and Angle |
|
|
Net Weight |
17.8kg |
28.2kg |
30.9kg |
42.9kg |
Gross Weight |
20.1kg |
30.5kg |
35.1kg |
44.1kg |
Dimension(WxDxH) |
(230+150) x 290 x 620 mm |
(300+195) x 380 x 750 mm |
400 x 450 x 620 mm |
550 x 600 x 750 mm |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
FAQ
Q1: What is the Warranty for the line array system?
For the line array system, we have 3 years warranty.
Q2: How long to resolve the technical issues?
All of quality complaint shall be attached with serial number, failure test report and photos. And all of the quality compliant shall be feedback with a solution within 48 hours.
If any technical issues please contact with our technician
Technical documents could be downloaded from website
Q3: Is there cheap shipping cost to import to our country?
For small order, express will be best. And for bulk order sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
How to Contact US?
Send your Inquiry Details in the Below, Click "Send" Now! Free samples of line array system are waiting for you.
