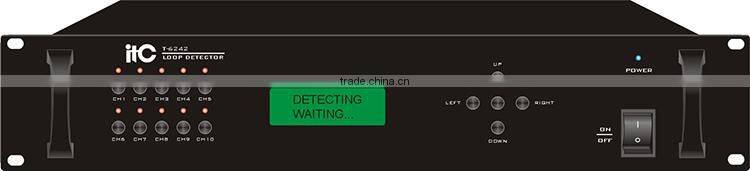

LED Display rack mounted Speaker Line Supervision for sale
* Rack mounted design in 2U height
* LCD English display and 1-10 channel status indicator.
* Detection over speaker line impedance, open circuit, short circuit and overloading.
* Timely detect speaker loop line.
* Speaker line detection no interrupt with music broadcasting or paging
* Indications include indicator color change and buzzer alarm when speaker line impedancehas been changed
* Each channel detection Max. 2000W speaker loading
* LCD real time display speaker line's status and power
* Suitable for 100V and 70V line speaker system
* Ten channel inputs and outputs
* AC120V or 230V and DC 24V DC operation
* Pre-setting memory function even in case of power off
Model | T-6242 |
Power Supply | ~110V/60Hz or ~230V/50Hz & DC 24V |
Power Consum | 20W |
Dimension | 484x303x88mm |
Weight | 5.5Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
