Home > Consumer Electronics > Audio & Sets > Professional Audio > Professional UHF Dual Channel Wireless Microphone System

Professional UHF Dual Channel Wireless Microphone System

US$ 200 - 980 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-524UT

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-524UT

T-524UT

Professional UHF dual channel wireless microphone system

It’s in 0.5” 1U metal case according to global standard EIA, which could be installed in chassis directly.
It provides 4 channel input and each channel has 16 band of frequency range. The range is optional.
It furnishes rotary DIP for users to change frequency.
Each channel is with adjustment knob for sensitivity and receiving distance.

Specification

System Index
Frequency range	Port A & Port C: 793.4 --- 799.1MHz; Port B & Port D: 799.6 --- 805.9MHz
Modulation Mode	FM
Frequency Band	12.5MHz
Frequency Quantity	L: 16 channels; H: 16 channels (Via DIP knob to adjust)
Channel Spacing	300-500KHz
Frequency Stability	±0.01%
Dynamic Range	80dB
Max. Frequency Offset	±35KHZ
Frequency Response	300Hz-12KHz(±3dB)
S/N Ratio	> 80dB
System Distortion	≤0.5%
Working Distance	50 m (Openness)

Receiver Index
Receiving Frequency Mode	Double-conversion
MF	MF 1: 110MHz, MF 2: 10.7MHz
Antenna Port	BNC, 50 ohm
Sensitivity	-95dBm
Adjustment Range of Sensitivity	12-32dB μV
Discrete Suppression	≥75dB
Audio Output Interface	6.35mm
Max. Output Level	2V (max)
Power Supply	Switching Power 12V/1A
Working Temperature	-10℃ --- +40 ℃
Dimension	420 x 44 x 147mm
Weight	About 2.5Kg

Transmitter Index
Output Power	≥30MW
Spur Reduction	≥60dB
Power Supply	2 Section AA Batteries or 2 Section ni-mh Rechargeable Batteries
Working Time	>10 hours

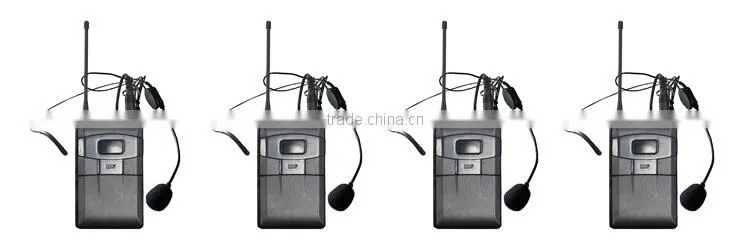

4 Headset Mics T-524US

4 Handheld Mics T-524UH

4 Lavalier Mics T-524UL

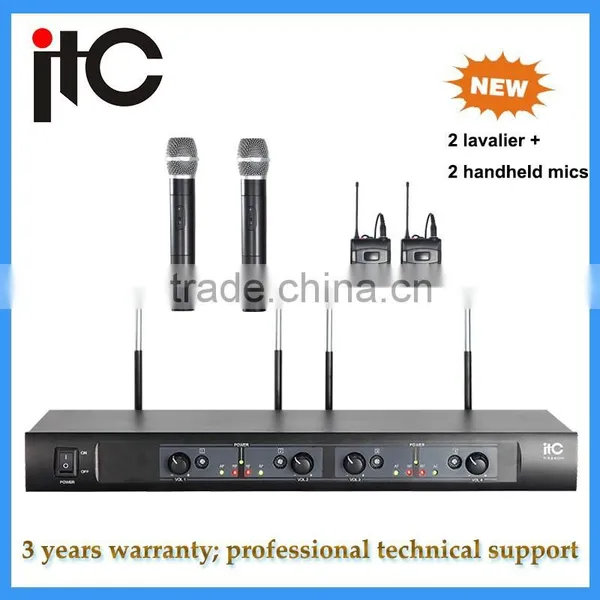

2 Lavalier and 2 Handheld Mics T-524UT

2 Handheld and Headset Mics T-524UV

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
