Specifications
1.Wide/Narrow input range2.10A/20A Charging Current
3.LED+LCD NEW Display
4.Battery Reverse
5.1KVA 2KVA Home Inverter
Say Goodbye to Power Failure!!!
---Payment & Shipping & Sample:
1.Shipping:DHL,FEDEX,UPS,EMS,AirWay and By Sea.
2.Payment:T/T( telegraphic transfer (T/T) and Western Union
3.Welcome to your Sample Order to test First.
4.OEM/ODM Order is very welcomed.
NEW Design:
LCD+LED Display on the Panel
NEW FUNCTION 10A/20A CHARGING CURRENT ADJUSTABLE
EP1000 Series 1KVA 2kVA 10A/20A Battery Charging Current DC to AC Mini Home Inverter
10A/20A Charging Current 1000VA 2000VA DC to AC Home Power Inverter
EP1000 modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.
The EP1000 series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances .PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Home Power Inverter Features:
10A/20A battery charger buit-in
High reliability with CPU control.
Inner-equipped protection of over-load, short-circuit, over-voltage, low-voltage over-heating
Self-diagnosis function, capable of detecting status at inverter and battery in the Inverter.
Extra long standby time. And additional battery connections possible for longer power supply time according to customer’s requirements.
Home Power Inverter Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.
1.Home Power Inverter Specifications:
EP1000 Series Power Inverter 500va /1000va /2000VA LCD Display
| MODEL | P1000C | P2000C | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 1000VA:600W | 2000VA1200W | |
| Output Voltage | 230V | 230V | |
| Phase | Single | ||
| Voltage Waveform | Modified Sine Wave | ||
| Power Factor | 0.6 | ||
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz | ||
| Regulation (Nominal) | 10%-18% | ||
| Regulation(Battery mode) | ±0.1HZ | ||
| Transfer time | 10ms Typical | ||
| INPUT | |||
| Nominal Voltage | 220V/230V/240V Selectable | 220V/230V/240V Selectable | |
| Phase | Single | ||
| Voltage range | 180-275VAC ( Narrow Range ) | ||
| 80-275VAC (Wide Range) | |||
| BATTERY | |||
| Charger Current | 1000VA/600W12VDC/:10Amp/20Amp + / - 1Amp; 2000VA/1200W24VDC:10Amp/20Amp + / - 1Amp | ||
| Floating Voltage | 600W:13.7V + / - 0.4V; 1200W:27.4V + / - 0.4V | ||
| Protection | overcharge protection:1000VA/600W:15V +/- 0.6V charger stops and fault | ||
| overcharge protection: 2000VA/1200W: 30V +/- 0.6V charger stops and fault | |||
| other protection: discharge, overload | |||
| EFFICIENCY | |||
| AC to AC | >95% | ||
| DC to AC | >80% | ||
| INDICATOR | |||
| AC Mode | Green LED/LCD lighting | ||
| Battery Mode | Yellow LED/LCD lighting | ||
| Battery Charging Mode | Green LED /LCDflashing every 2 seconds | ||
| Overload | Red LED/LCD flashing every 0.5 second | ||
| Fault | Red LED/LCD lighting | ||
| AUDIBLE ALARM | |||
| Low Battery at Battery Mode | Sounding every 2 seconds | ||
| Overload | Sounding every 0.5 second | ||
| Fault | Continously sounding | ||
| Protection | |||
| Full Rrotection | Deep Discharge, Overcharge, and Overload protection | ||
| ENVIRONMENTAL AND SAFETY | |||
| Operating Temperature | Up to 1500 meters:0 °Cto 40°C (32°F to 104°F) | ||
| Transit/storage Temp. | 15°C below zero to 50°C (5°F to 131°F) | ||
| Relative Humidity | 0 - 90% non condensing | ||
| Quality control system | ISO 9001:2000, ISO 14002-2004 | ||
| PHYSICAL | |||
| Appearance | Size(mm)L x W x H | 224*255*80 | |
| Net Weight(Kg) | 600W:2.3kgs; 1200W :2.3kgs | ||
| Carton BOX(mm)L x W x H | 400*347*596(6pcs) | ||
| Gross Weight(Kg) | 1000VA /600W :16.8kgs ; 2000VA / 1200W :17.2kgs | ||
2.EP1000 Home Power inverter Data Sheet:
NEW:

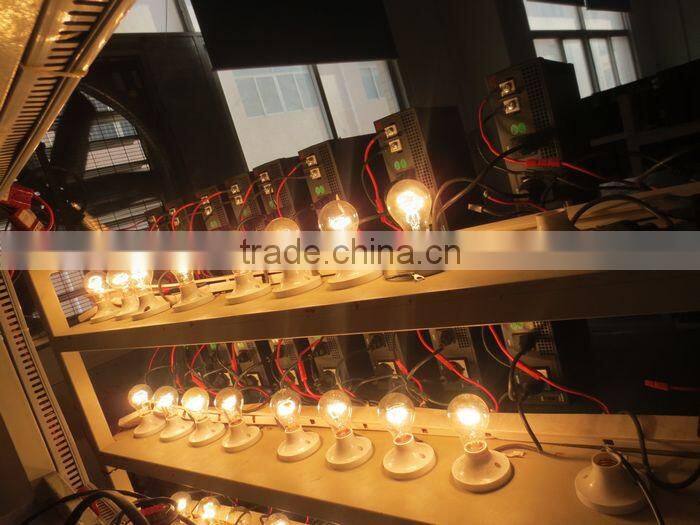

3.Home power inverter EP1000 Series 1000VA-2000VA Testing:
Home Power Inverter With Battery Cable:
EP1000 Inverter Home UPS Packing:
EP1000 Home power Inverter Socket And Cable:
4.Home Power Inverter Production Line:
Home Power Inverter Test Machine:
HongKong Electronice Fair:
Why Choose Us?
1. Professional: Established in 1998. 15 years Producing Experience on Power inverter & Solar controller & Battery.
2. Reliable: 4yrs Alibaba Gold Supplier.
3. Hi-tech: Advanced R&D Team.
4. Certifications: Applied with CE, ISO 9001 etc.
5. Quality guarantee: 1 year; also 24 hours after-sales service hotline for solve problems in time.
Want to know more about our company?Want to know more about our products?Want to know more about the Price,packing,Shipping and any discount?Dear Friend,Do not Hesitate.Leave a Inquiry!!!!:-)
