<MUST Solar>South Africa Inverter 12v to 220v Home Power Inverter 1000w 1200w

<MUST Solar>South Africa Inverter 12v to 220v Home Power Inverter 1000w 1200w photo-1
US$ 51 - 63.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MUST Solar-EP1000
Model Number:
EP1000 Series home power inverter, PG Series home inverter
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name MUST Solar-EP1000
Model Number EP1000 Series home power inverter, PG Series home inverter
Output Power 1 - 200KW
Output Type Other, Single, Single
Size 224*255*80mm
Weight 2.5kgs
Input Voltage 110v/120v/220v/230v, 110v/120v/220v/230v
Output Voltage 110v/120v/220v/230v
Type DC/AC Inverters
Output Frequency 50Hz/60Hz, 50Hz/60Hz
Output Current 10A/20A

Specifications

1.Wide input range 90-280VAC
2.Rack Town Design inverter
3.Home use inverter
4.High Frequency
5.dc to ac power inverter

<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w

































Say Goodbye to Power Failure!!!



---Payment & Shipping & Sample:

1.Shipping:DHL,FEDEX,UPS,EMS,AirWay and By Sea.

2.Payment:T/T( telegraphic transfer (T/T) and Western Union

3.Welcome to your Sample Order to test First.

4.OEM/ODM Order is very welcomed.



NEW Design:

LCD+LED Display on the Panel



NEW FUNCTION 10A/20A CHARGING CURRENT ADJUSTABLE



<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w







 EP1000 Series 1KVA 2kVA 10A/20A Battery Charging Current  DC to AC Mini Home Inverter





<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w



10A/20A Charging Current 1000VA 2000VA DC to AC Home Power Inverter

EP1000 modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.

The EP1000 series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances .PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.




Home Power Inverter Features:Wide Input range 90-280VAC



Home Power Main Feature:



1.Automatic line-to-battery switchover
2.selectable input voltage ranges, power inverter has wide input range:90-280Vac



narrow input range:170-280Vac
3.small power inverter has high efficient DC-to-AC conversion, minimizing energy loss



4.Rack Tower design for flexible placement
5.small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6.Intelligent 2-stage charger control for efficient charging and preventing overcharge
7.overload protection
8.auto restart while AC recovery
9.Multi-function LED indications and buzzer alarms



10.small scale and cost effective inverter for home appliance and office equipment



11.LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning



12. over 95% efficiency in AC to AC mode



13. audible alarm for the low battery, overload, overcharge and fault



14. full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)





Home Power Inverter Applications:
Main for home and office Appliance such ad computer, TV, lights, fan etc.





1.Home Power Inverter Specifications:



EP1000 Series Power Inverter 500va /1000va /2000VA  LCD Display


Rated Capacity 500VA/300W1000VA/600W2000VA/1200W

1.Input

Models 120V Models230V Models
Nominal Voltage 110V/115V/120V Selectable220V/230V/240V Selectable
Input Frequency 47Hz ~ 65Hz,  50/60Hz Auto-Sensing
Efficiency 95%(Normal Mode)
Noise Filtering Full Time EMI/RFI Filtering
Over Current Protection By Re-Settable Over Current Protector
Voltage Range 90 - 145VAC Or 170-280VAC ( Narrow Range ) 50-145VAC / 90 280VAC (Wide Range)
Surge Protection 324 Joules

2.Output

Rated Power500va/300w1000VA/600W2000VA/12000W
Output Voltage 100V/110V/115V/120V Selectable200V/220V/230V/240v selectable
Voltage Waveform Modified Sine Wave
Crest Factor 3:1
Output Frequency
(Synchronized To Mains)
Auto Select For 50/60Hz
47Hz ~ 55Hz For 50Hz Nominal
56Hz ~ 65Hz For 60Hz Nominal
Regulation (Battery Mode) 10% -18%
Transfer Time 15ms Typical 50ms Max
Protection Over Load, Discharge, Overcharged



Battery Type Lead-Acid 12V 25Ah  ~ 250Ah
Voltage 500VA/1000VA :DC12V ; 2000VA :DC24V
Backup Time Depend On Battery
Charging Method 3 Steps Super Charge Mode
Charging Current 10A At Normal Line And Normal Temperature
Protection Over Current Protection Over Charging Voltage Protection  (No More Than 15V) Deep Discharge,  Overload Protection

3.Communications & Management

Control Panel (LED Indicator ) Ac ModeGreen Lighting
Battery ModelYellow Lighting
Battery Charging  ModeGreen Flashing Every 2 Seconds
Over LoadRed Flashing Every 0.5 Second
FaultRed Lighting
Audible Alarm Low BatterySounding Every 2 Seconds
OverloadSounding Every 0.5 Second
FaultContinuously Sounding

4.Environment And Safety

Operating Environment 0~40 Degrees Centigrade, 0 - 90% Non Condensing
Transit/Storage Temperature -15°C To 55°C (5°F To 131°F)
Operating Altitude 0 ~ 3000 Meters
Audible Noise 50dba
Safety Markings CE.FCC
Quality Control System ISO 9001

5.Physical

Dimensions(H×D×W) 355*130*230mm
N.W / G.W(Kg) 1.6  / 2 (Kg) 2 / 2.3 (Kg)2.2 / 2.6 (Kg)
Packing 6pcs/Carton



2.EP1000 Home Power inverter Data Sheet:



NEW:



<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w

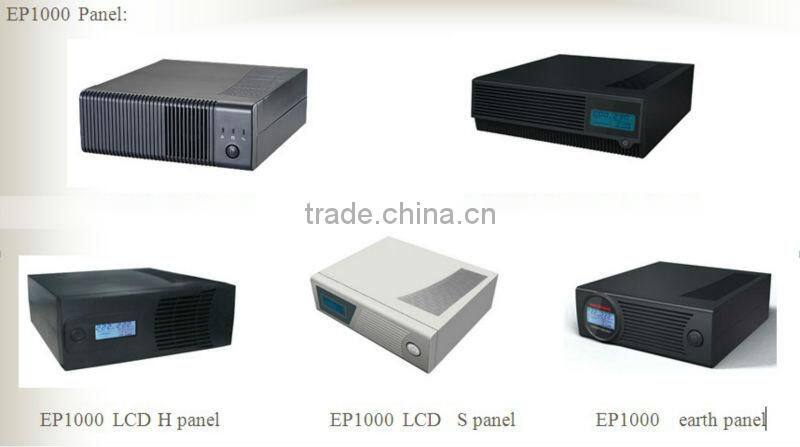

DC to AC Home Power Inverter LCD display:

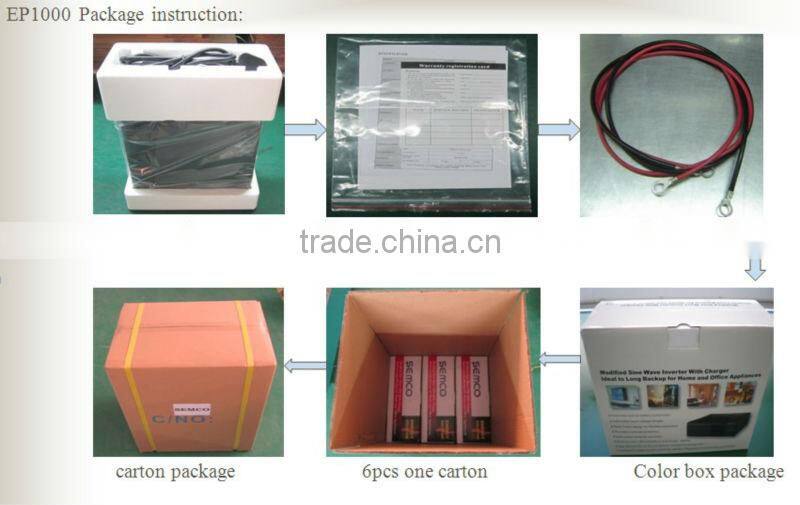

3.Home power inverter EP1000 Series 1000VA-2000VA Packing:





Home Power Inverter With Battery Cable:





 EP1000 Inverter Home UPS Packing:



<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w

<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w



EP1000 Home power Inverter Socket And Cable:





4.Home Power Inverter Production Line:









Home Power Inverter Test Machine:

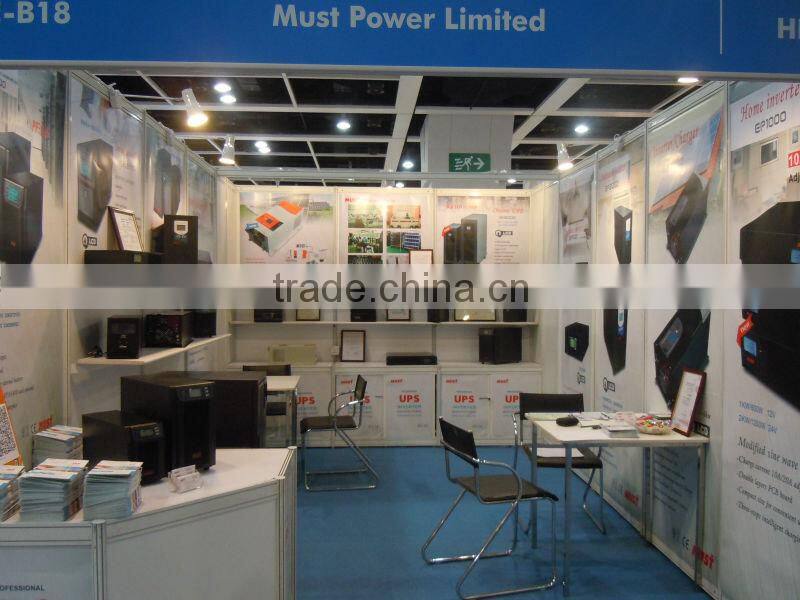

HongKong Electronice Fair:



<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w



EP1000 Series 1KVA 2kVA 10A/20A Battery Charging Current  DC to AC Mini Home Inverter



<MUST Solar>South Africa Inverter 12v to 220v home power inverter 1000w 1200w



Why Choose Us?



1. Professional: Established in 1998. 15 years Producing Experience on Power inverter & Solar controller & Battery.



2. Reliable: 3yrs Alibaba Gold Supplier.



3. Hi-tech: Advanced R&D Team.



4. Certifications: Applied with CE, ISO 9001 etc.



5. Quality guarantee: 1 year; also 24 hours after-sales service hotline for solve problems in time.



Want to know more about our company?Want to know more about our products?Want to know more about the Price,packing,Shipping and any discount?Dear Friend,Do not Hesitate.Leave a Inquiry!!!!:-)
