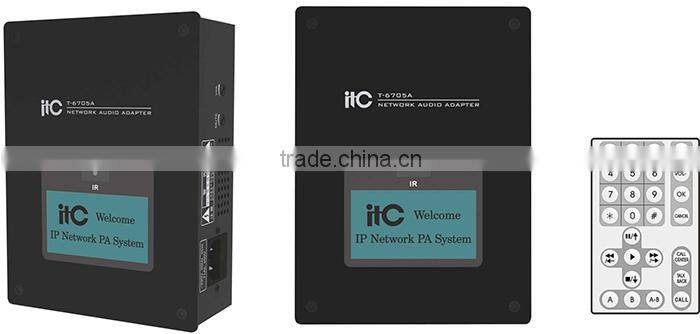

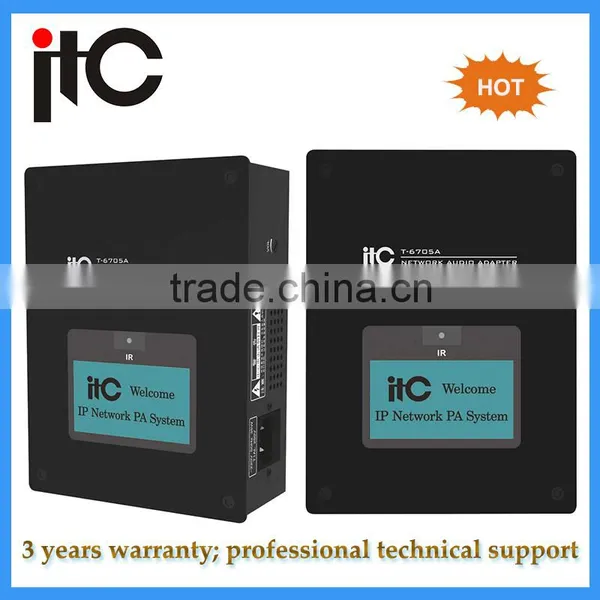

T-6705A Best price wall mount type 2*10w amplifier ip pa system
It’s suitable for normal classroom, multimedia classroom, office, conference room, etc where need program broadcast and local sound broadcast.
It’s in rack mount design and its case is in material of brushed aluminum.
With LCD to display status and it’s with remote controller for music play.
It’s built in DSP and the start time is less than 1s.
With network audio codec module, which support protocol of TCP/IP, UDP and IGMP to achieve network transmission for 16 bit stereo audio in CD level.
With 2*10W(8 ohm) amplifier module.

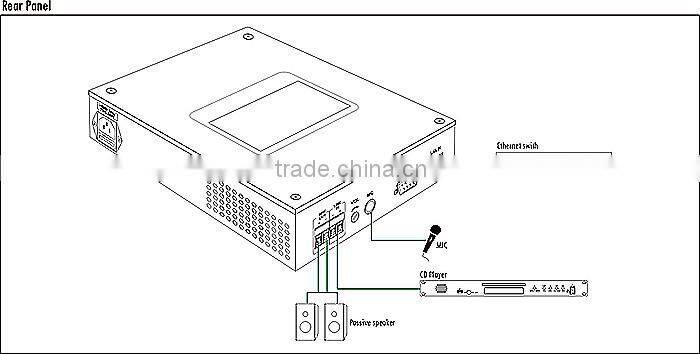

1 AUX output to connect post-class power amplifier.
1 Mic input and 1 line input for local sound reinforce.
With circuit of audio processor to support multiple channel sound reinforce, audio mixer and priority management of 3 level.
Support the function of on-demand unicast in remote media base.
Support mute control.
Support PSTN phone broadcast and SMS voice broadcast.
Support on-demand unicast by mobile phone via WIFI and support IR remote controller.
Adopt unified authorization operation management system.
Support DHCP, and it’s adaptive to multiple network structure, such as router, network switcher, gateway bridge, internet, 2G, 3G, 4G, etc.
To imitate menu management of iOS.
With protection circuit for lightning.
1 serial port connected to PC for changing the IP address.
It’s expandable, for it’s digital product and adopt concept of common network.
Model | T-6705A |
Communication Port | Standard RJ45 |
Communication Protocol | TCP/IP, UDP, IGMP |
Transmission Speed | 100Mbps |
Audio Mode | 16 bit stereo audio in CD level |
Output Frequency Range | 80Hz~16KHz |
T.H.D. | ≤1% |
S/N Ratio | ≥75dB |
Output Impedance and power for external speaker | 8Ω, 2 x 10W Industrial standard terminal by crimping |
AUX Input Level | 350mV |
Line Output Level | 1000mV |
MIC Input Sensitivity | 5mV |
Working Temp. | 5℃~40℃ |
Working Humidity | 20%~80% Relative humidity, without dew |
Power Consumption | ≤35W |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimension | 187 x 139 x 60mm |
Weight | 1.62Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
